Product Description

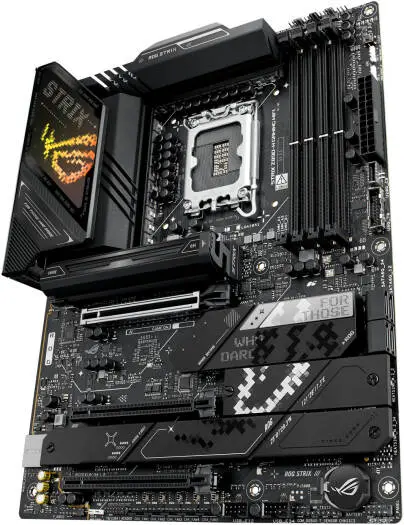

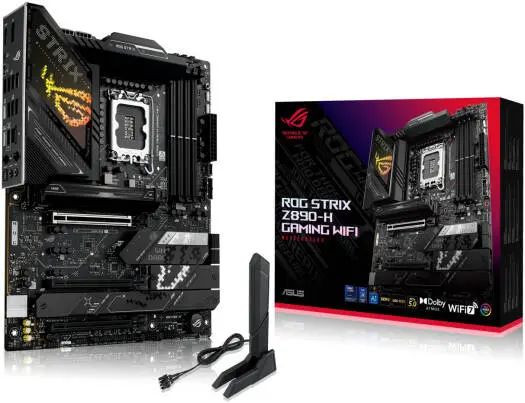

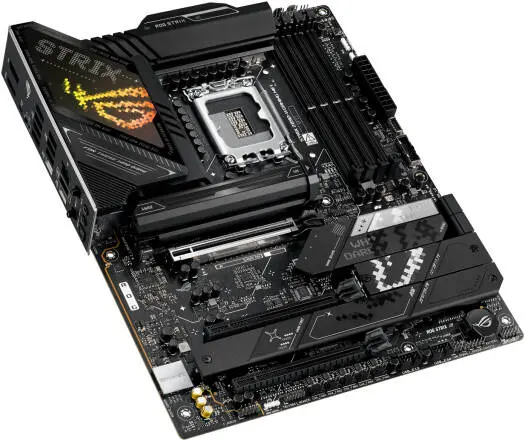

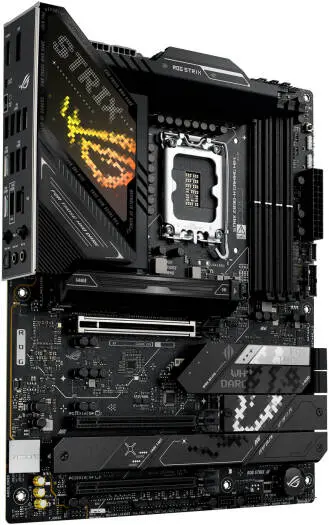

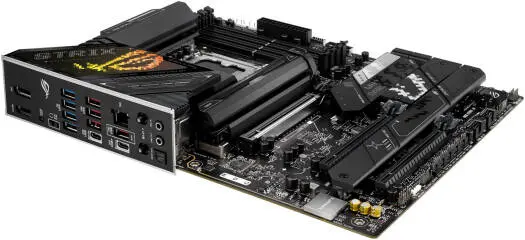

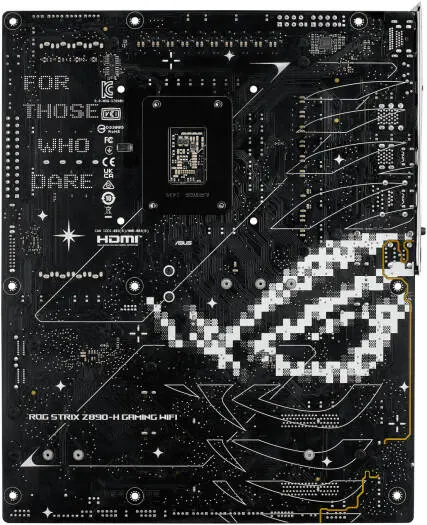

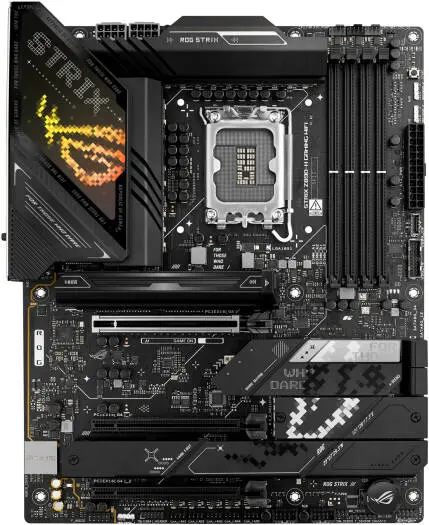

ASUS ROG Strix Z890-H Gaming WiFi – The Future of Power and Precision
Product Description
Experience the next generation of gaming performance with the ASUS ROG Strix Z890-H Gaming WiFi, engineered for Intel’s latest Core™ Ultra Series 2 processors.
Built on the Intel® Z890 chipset, this motherboard combines raw power, future-ready connectivity, and the iconic ROG design — delivering the perfect balance between speed, stability, and style.
Support for DDR5 memory up to 256GB at 9066+ MHz (OC) ensures extreme multitasking and responsiveness, while the PCIe 5.0 x16 slot unleashes the full potential of modern GPUs.
Storage and data transfer reach new levels with four M.2 PCIe slots, four SATA ports, and dual USB 20Gbps Type-C® ports (including one with 30W Power Delivery).
Stay connected and cool under pressure with Wi-Fi 7, 5Gb Ethernet, AI Cooling II, and Fan Xpert 4.
Immersive audio, customizable RGB lighting, and Q-Design innovations make the Z890-H a premium choice for builders who demand flawless performance and cutting-edge design.
Â
Specifications
| Category | Details |
| Model | ASUS ROG Strix Z890-H Gaming WiFi |
| Form Factor | ATX (30.5 × 24.4 cm) |
| Chipset | Intel® Z890 |
| CPU Socket | LGA1851 – Supports Intel® Core™ Ultra Processors (Series 2) |
| Memory Support | 4 × DDR5 DIMM Slots, Dual Channel, XMP & DIMM Flex, up to 256 GB |
| Memory Speed (OC) | Up to 9066+ MT/s |
| Graphics Outputs | 1 × DisplayPort (8K@60Hz) • 1 × HDMI™ (4K@60Hz) |
| Expansion Slots | 1 × PCIe 5.0 x16 (x16 / x8x4x4) • 2 × PCIe 4.0 x16 (x4) |
| Storage Support | 4 × M.2 PCIe Slots • 4 × SATA 6Gb/s Ports • RAID 0/1/5/10 Support |
| Networking | Realtek 5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2×2, 2.9Gbps, 2.4/5/6GHz) • Bluetooth® 5.4 |

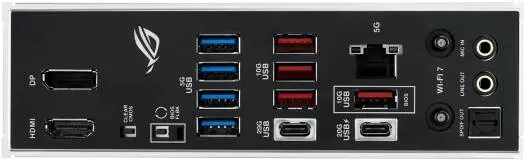

| Rear USB Ports | 10 Total: 2 × USB 20Gbps (Type-C®, incl. 30W PD) • 4 × USB 10Gbps (Type-A) • 4 × USB 5Gbps (Type-A) |
| Front USB Ports | 7 Total: 1 × USB 20Gbps (Type-C®) • 1 × USB 5Gbps Header (2 Ports) • 2 × USB 2.0 Headers (4 Ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound • Savitech SV3H712 AMP • SupremeFX Shielding • Gold-Plated Jacks • Optical S/PDIF |
| Cooling Features | VRM & M.2 Heatsinks • Thermal Sensor • 5 × Fan Headers • AI Cooling II • Fan Xpert 4 |
| Power Connectors | 1 × 24-Pin Main • 2 × 8-Pin CPU Power |
| Lighting & Headers | Aura Sync RGB • 3 × Addressable Gen 2 Headers |
| Special Features | PCIe SafeSlot • M.2 Q-Latch • Q-LED Debug • BIOS FlashBack™ • Clear CMOS • AI Advisor • Armoury Crate |
| Software Features | ROG CPU-Z • GameFirst • Dolby Atmos • USB Wattage Watcher • TurboV Core • AI Suite 3 |
| BIOS | 256 Mb UEFI AMI BIOS • EZ Mode • MyHotkey • BIOS FlashBack™ |
| Included Accessories | 2 × SATA Cables • M.2 Thermal Pad • Wi-Fi Q-Antenna • Cable Ties • ROG Keychain • Stickers |
| Operating System | Windows® 11 (22H2 and later) |
| Warranty | 3 Years Manufacturer Warranty |
