Product Description

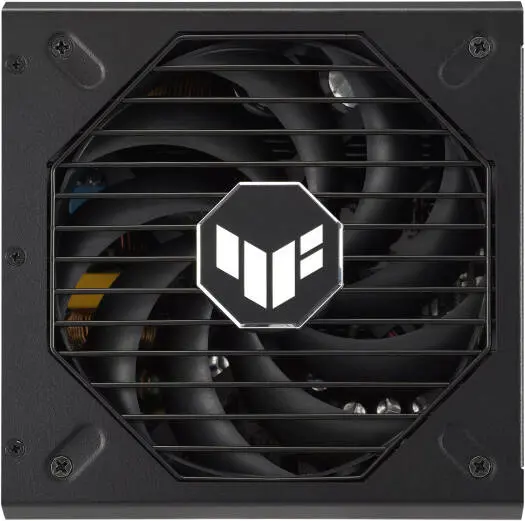

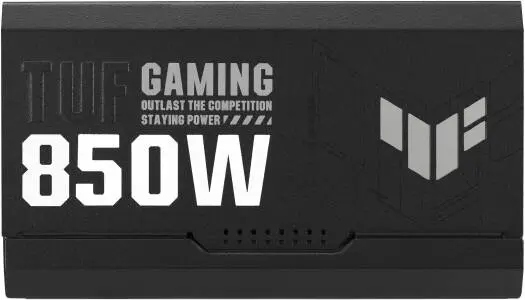

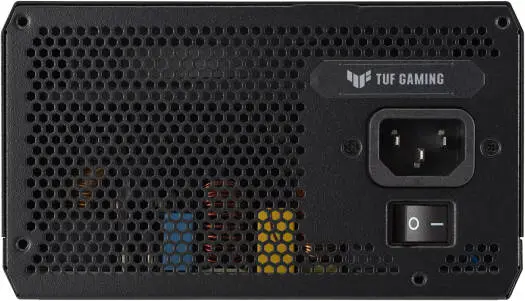

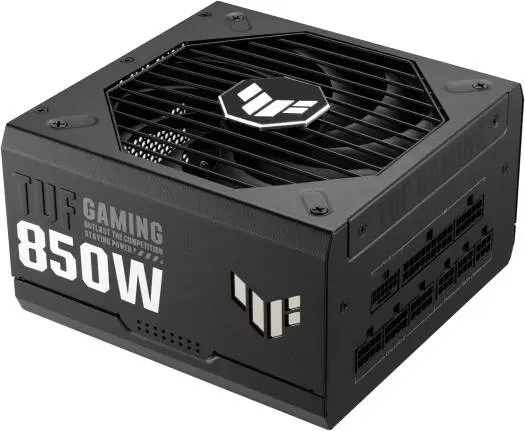

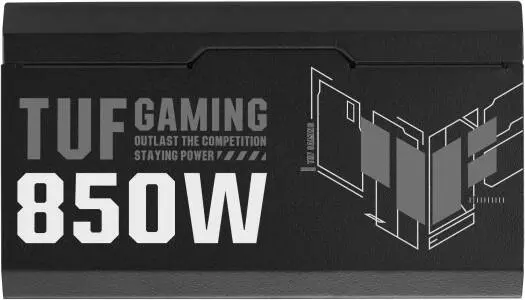

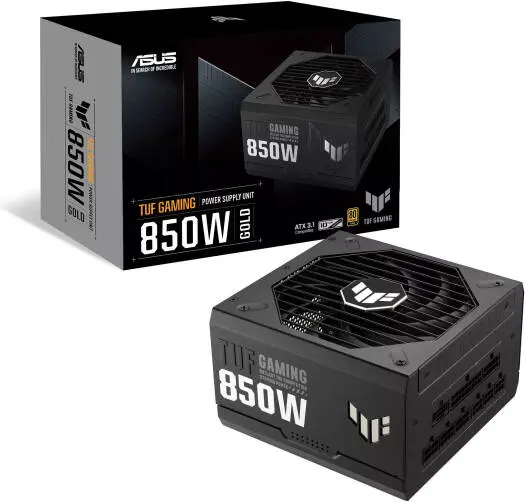

ASUS TUF Gaming 850W Gold — Professional Description
Model: 90YE00S2-B0NA00
The ASUS TUF Gaming 850W 80 Plus Gold Fully Modular Power Supply is built for gamers, creators, and professionals who demand stability, durability, and long-term reliability from their power delivery system. Engineered with military-grade components, premium PCB protection, and an Axial-tech dual ball bearing fan, this PSU ensures consistent power output even under intense gaming or workstation loads.
With 80 Plus Gold efficiency and ATX 3.0 compliance, it delivers exceptional energy savings and full compatibility with the latest high-performance GPUs, including PCIe Gen 5.1 graphics cards using the 16-pin (12VHPWR) connector. The fully modular cable design enables cleaner builds and improved airflow, while the reinforced PCB and protective coating guard against moisture, dust, and extreme temperatures.
Designed for endurance, the TUF Gaming 850W Gold boasts an impressive >120,000-hour lifespan, comprehensive hardware protections, and seamless 0dB silent operation during low to medium loads. This PSU is the ideal choice for users who want rock-solid reliability and next-gen readiness in their gaming PC.
Â
Â
Specifications
| Category | Specification |
| Model | TUF Gaming 850W Gold |
| Form Factor | ATX12V (Intel Standard) |
| ATX Standard | ATX 3.0 |
| PFC Type | Active PFC |
| Dimensions | 150 × 150 × 86 mm |
| Efficiency | 80 Plus Gold Certified |
| MTBF | >120,000 hours @ 40°C |
| Protections | OPP, OVP, UVP, SCP, OCP, OTP |
| Environmental Compliance | RoHS |
| AC Input | 100 – 240 Vac |
| DC Output Voltages | +3.3V, +5V, +12V, -12V, +5Vsb |
| Max Load | +3.3V: 25A +5V: 25A +12V: 70.8A -12V: 0.8A +5Vsb: 3A |
| Combined Output | +3.3V & +5V: 130W +12V: 850W -12V: 9.6W +5Vsb: 15W |
| Total Output | 850W |

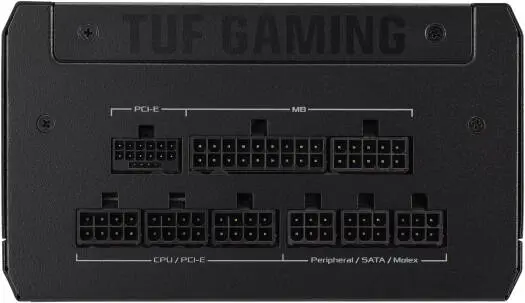

| Cable Connectors | 1 × 24/20-pin MB 2 × CPU 4+4-pin 1 × PCI-E 16-pin (12VHPWR) 3 × PCI-E 8-pin 5 × SATA 4 × Peripheral |
| Included Cables | Motherboard Cable (610mm) 2 × CPU Cable (650mm) 16-pin Gen 5 Cable (675mm) 16-pin to 8-pin ×2 Cable (675mm) PCI-E 1-to-1 (675mm) SATA 1-to-2 (400+120mm) SATA 1-to-3 (400+120+120mm) Peripheral 1-to-4 (400+150+150+150mm) |
| Accessories | Power cord, TUF cable ties ×3, User manual |
| Weight | 2.38 kg |
| Fan Type | Axial-tech Fan with Dual Ball Bearings |
| 0dB Technology | Supported (silent mode at low loads) |
| 0dB Fan Button | Not required — 0dB enabled by default |
