Product Description
TUF Gaming B650M-Plus Wifi
Â
Specifications
Â
Model
TUF GAMING B650M-PLUS WIFI
Â
CPU
AMD Socket AM5 for AMD Ryzenâ„¢ 7000 Series
Desktop Processors*
* Refer to www.asus.com for CPU support list.
Â
Chipset
AMD B650
Â
Memory
4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/Â 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
**Â Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Â
Graphics
1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMIÂ 2.1. Â
***Â VGA resolution support depends on processors' or graphic cards' resolution.
Â
Expansion Slots
AMD Ryzenâ„¢ 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4Â mode)
1 x PCIe 4.0/3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
Â
Storage
Total supports 2 x M.2 slots and 4 x SATAÂ 6Gb/s ports*
AMD Ryzenâ„¢ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Â
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Â
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Â
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Â
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
-Â Dedicated audio PCB layers
Â

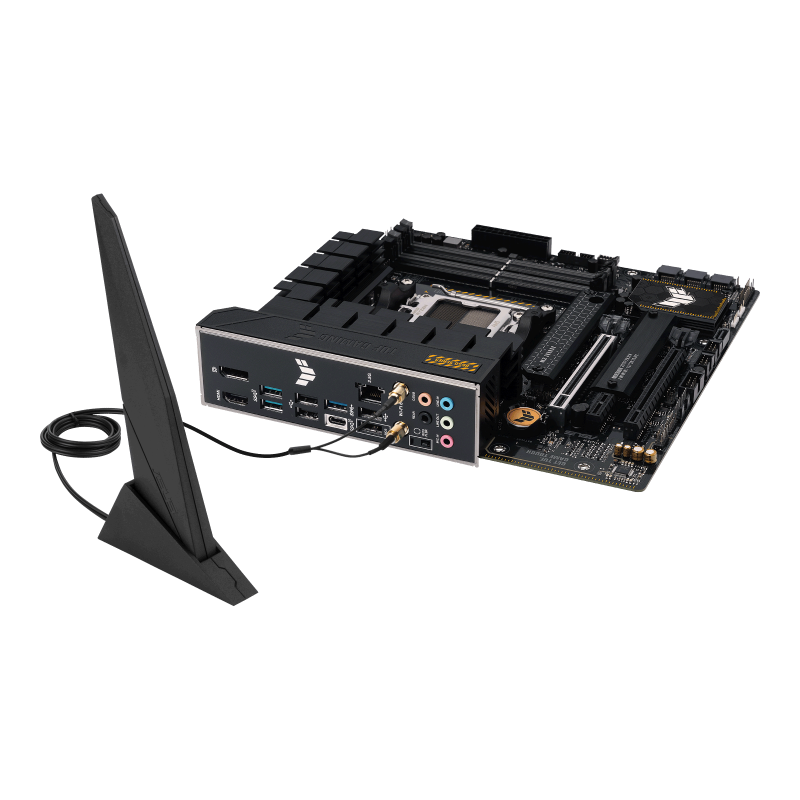

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI®port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBackâ„¢ button
Â
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4Â USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Â
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGAÂ [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBackâ„¢ button
- BIOS FlashBackâ„¢ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Â
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
-TurboV EVO
-DIGI+ VRM
-PCÂ Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Â
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Â
Operating System
Windows®11, Windows®10 64-bit
Â
Form Factor
micro-ATX Form Factor
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS TUF Gaming B650M-Plus Wifi DDR5 Micro ATX Motherboard, AMD Socket AM5, B650 Chipset, 2.5Gb Ethernet, Bluetooth, WiFi 6E 5GHz, Max 128GB 4xDIMM Memory, PCIe 4.0x16, 2xM.2 Slot | 90MB1BF0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS TUF Gaming B650M-Plus Wifi DDR5 Micro ATX Motherboard, AMD Socket AM5, B650 Chipset, 2.5Gb Ethernet, Bluetooth, WiFi 6E 5GHz, Max 128GB 4xDIMM Memory, PCIe 4.0x16, 2xM.2 Slot | 90MB1BF0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
90MB1BF0-M0EAY0
Chipset
AMD B650
Form Factor
Micro ATX
Memory Slots
4
Memory Speed
7600
PCI Express x16
1
Shipping Weight
1.45 Kg
Shipping Dimensions
7.00 cm x 28.00 cm x 27.51 cm
M.2 Slots
2
Maximum Memory
192 GB
Memory Type
DDR5
Multi-GPU Support
--
Socket
AM5
