Product Description
 TUF GAMING B850-BTF WIFI WÂ
Â
Specifications
| Model | TUF GAMING B850-BTF WIFI W |
| News & Updates | Visit ASUS Support |
| CPU | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 4 × DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC), Dual channel, ECC & Non-ECC, EXPO™, AEMP |
| Graphics | 1 Ă— DisplayPort (max 8K@30Hz), 1 Ă— HDMI 2.1 (max 4K@60Hz), depends on CPU |
| Expansion Slots | - Ryzen 9000 & 7000: 1 Ă— PCIe 5.0 x16 (x16) - Ryzen 8000: 1 Ă— PCIe 4.0 x16 (x8/x4) - Chipset: 1 Ă— PCIe 4.0 x16 (x4), 1 Ă— PCIe 4.0 x1 |
| Storage | 3 Ă— M.2 (PCIe 5.0/4.0 depending on CPU) 4 Ă— SATA 6Gb/s RAID support varies by CPU |
| Ethernet | 1 Ă— Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2×2, 2.4/5/6GHz, up to 2.9Gbps), Bluetooth® v5.4 |
| USB (Rear) | 1 Ă— USB 20Gbps Type-C 3 Ă— USB 10Gbps Type-A 4 Ă— USB 5Gbps Type-A 2 Ă— USB 2.0 Type-A |
| USB (Front) | 1 Ă— USB 10Gbps Type-C 1 Ă— USB 5Gbps header (2 ports) 2 Ă— USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 Surround, 32-Bit/192 kHz playback, premium audio capacitors, shielding |
| Back Panel I/O | 1 × USB-C 20Gbps 3 × USB 10Gbps Type-A 4 × USB 5Gbps Type-A 2 × USB 2.0 1 × DisplayPort 1 × HDMI 1 × 2.5Gb Ethernet 5 × Audio jacks 1 × BIOS FlashBack™ button Wi-Fi module |
| Internal I/O | - Cooling: 1 Ă— CPU Fan, 1 Ă— CPU OPT, 1 Ă— AIO Pump, 4 Ă— Chassis Fan - Power: 1 Ă— 24-pin, 2 Ă— 8-pin CPU - Storage: 3 Ă— M.2, 4 Ă— SATA - USB: 1 Ă— USB-C 10Gbps, 1 Ă— USB 5Gbps header, 2 Ă— USB 2.0 headers - Misc: RGB headers, CMOS, COM, Front Panel, Thunderbolt header |
| BTF Related | 1 Ă— 12V-2X6 Auxiliary Power connector 1 Ă— Graphics Card High-Power slot |
| Special Features | ASUS TUF Protection (DIGI+ VRM, ESD Guards, SafeSlot, etc.), ASUS Q-Design (Q-Release, Q-LED, Q-DIMM, etc.), Thermal solution (VRM & M.2 heatsinks), EZ DIY (BIOS FlashBack™, pre-mounted I/O shield, etc.), Aura Sync RGB |
| Software Features | Armoury Crate, Aura Sync, Fan Xpert 4, AI Advisor, DriverHub, GlideX, TurboV Core, CPU-Z, DTS Audio, Adobe CC trial, Norton 360 trial, WinRAR trial |
| UEFI BIOS | CrashFree BIOS 3, EZ Flash 3, MyHotkey, EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

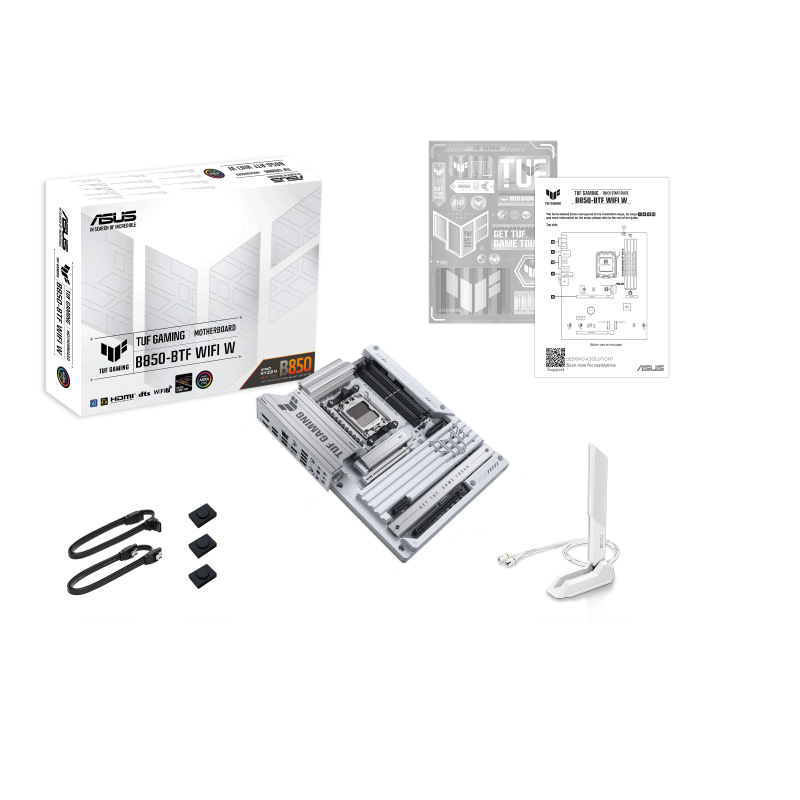

| Accessories | 2 Ă— SATA cables, Wi-Fi antenna, TUF Gaming sticker, 2 Ă— M.2 rubber packages, Quick Start Guide |
| Operating System | Windows 11 |
| Form Factor | ATX, 30.5 cm Ă— 24.4 cm (12" Ă— 9.6") |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1 x PCIe 5.0 x16, 3 x M.2 Slots | 90MB1KW0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1 x PCIe 5.0 x16, 3 x M.2 Slots | 90MB1KW0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
TUF GAMING B850-BTF WIFI W
Shipping Weight
1.90 Kg
Shipping Dimensions
7.00 cm x 35.50 cm x 27.51 cm
Chipset
AMD B850
Form Factor
ATX
M.2 Slots
3
Maximum Memory
256 GB
Memory Slots
4
Memory Speed
--
Memory Type
DDR5
Multi-GPU Support
--
PCI Express x16
1
Socket
AM5
