Product Description

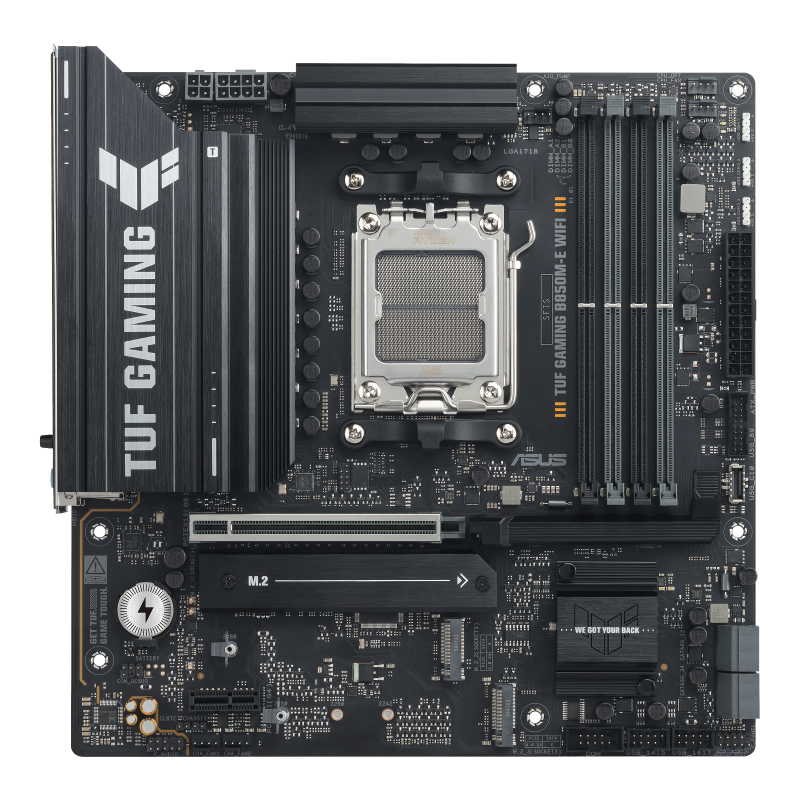

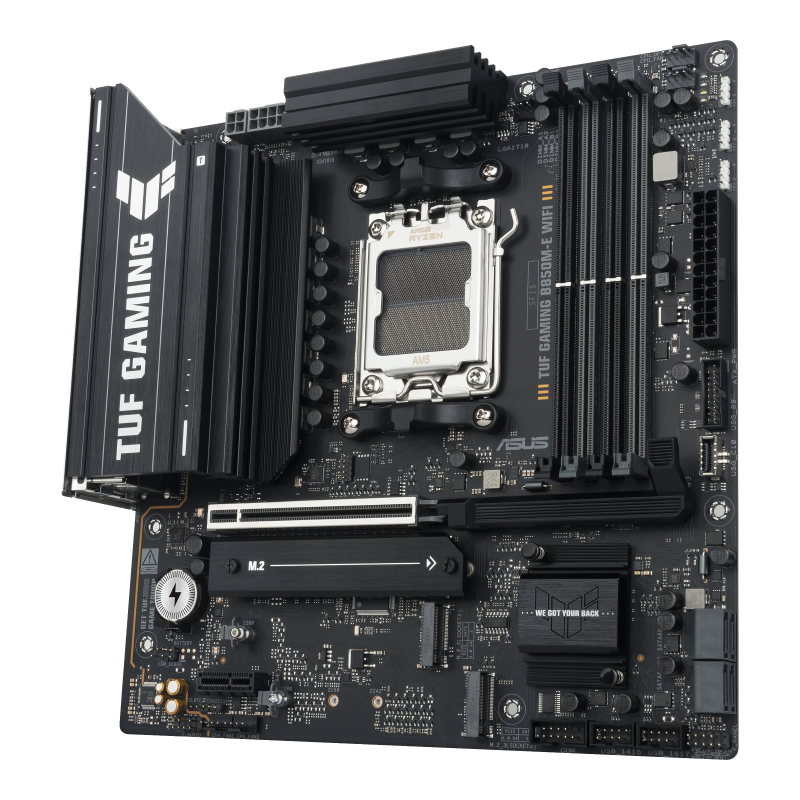

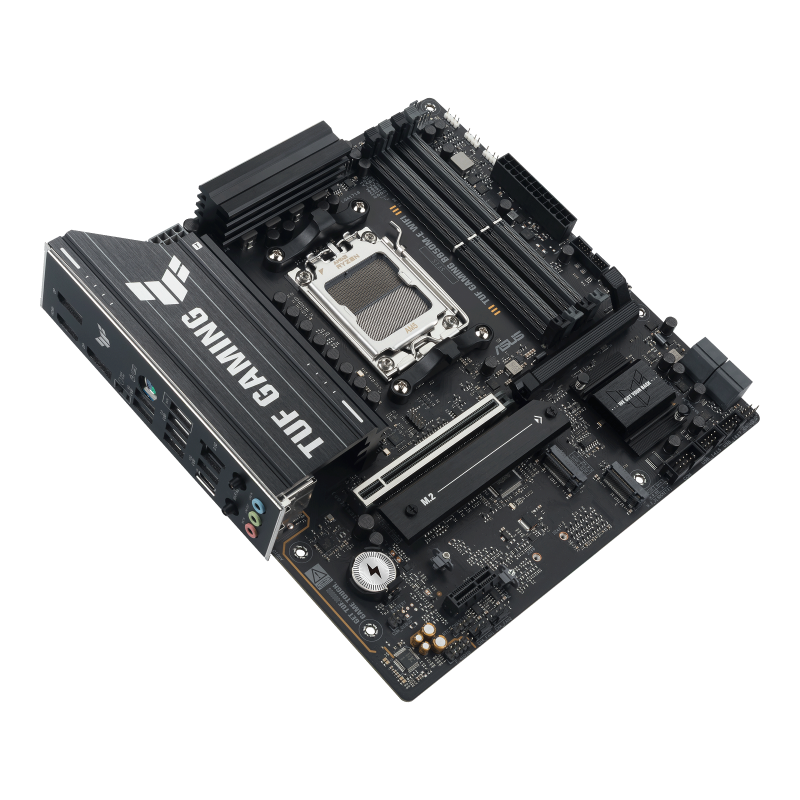

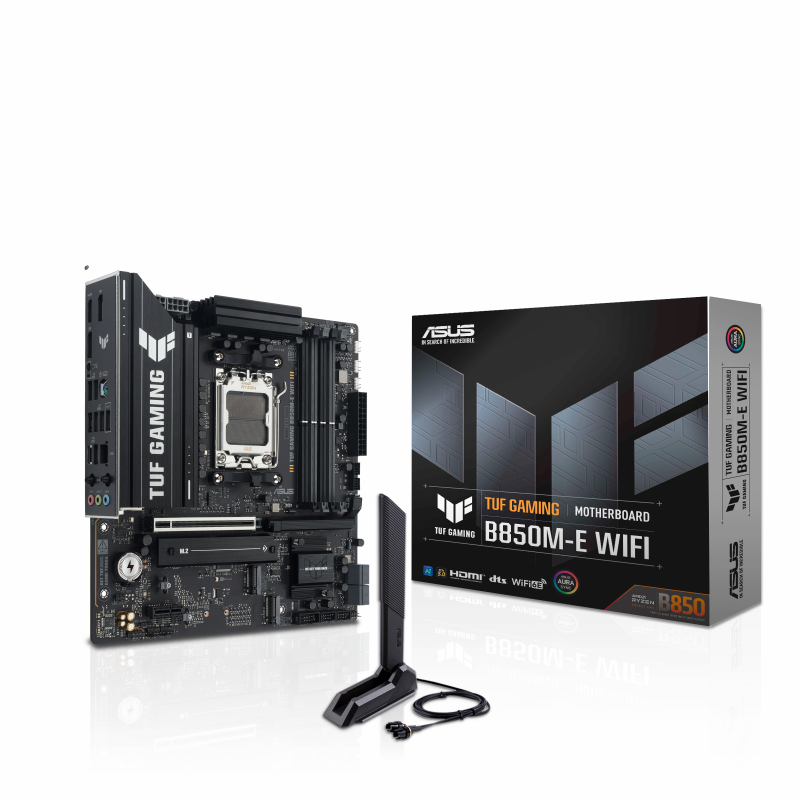

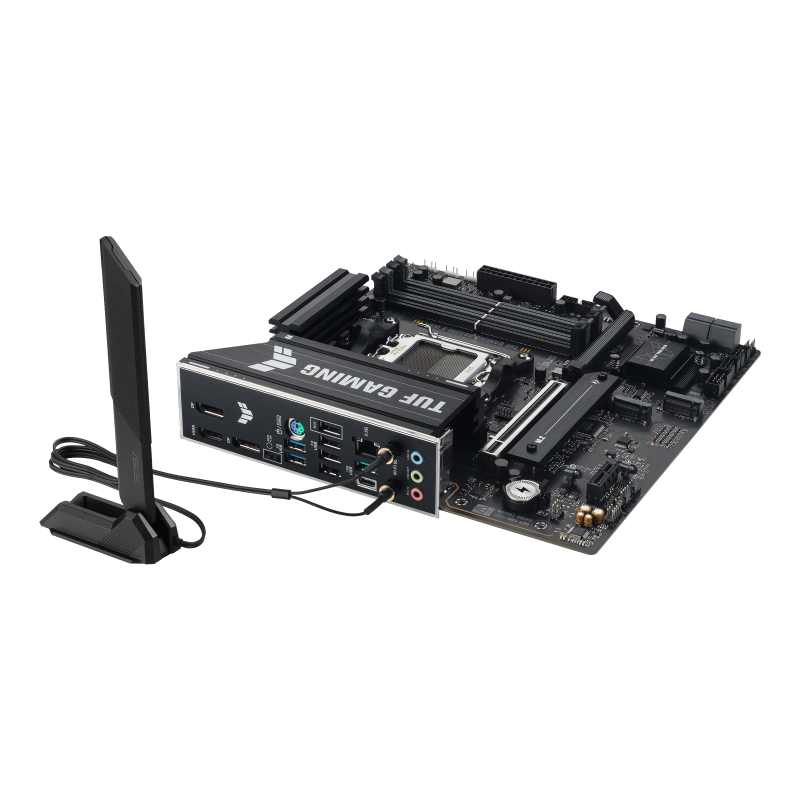

TUF GAMING B850M-E WIFI
ASUS TUF GAMING B850M-E WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Â
Â
Specifications
Â
| Model | TUF GAMING B850M-E WIFI |
| CPU | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD B850 |
| Memory | 4 × DIMM, max 256GB DDR5, up to 8000+ MT/s (OC), ECC & Non-ECC, Dual channel, EXPO™, AEMP |
| Graphics | 2 Ă— DisplayPort 1.4 (up to 8K@60Hz), 1 Ă— HDMI 2.1 (up to 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 1 Ă— PCIe 5.0 x16 Ryzen 8000: 1 Ă— PCIe 4.0 x16 (x8/x4) Chipset: 1 Ă— PCIe 4.0 x1 |
| Storage | 3 Ă— M.2 (PCIe 5.0/4.0 depending on CPU), 4 Ă— SATA 6Gb/s |
| RAID Support | Ryzen 9000: RAID 0/1/5/1 0Ryzen 8000: RAID 0/1 Ryzen 7000: RAID 0/1/10 |
| Ethernet | Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2Ă—2, 2.4/5/6 GHz, Windows 11+), Bluetooth 5.3 |
| USB (Rear) | 2 Ă— USB 10Gbps (1 Ă— Type-A, 1 Ă— Type-C), 2 Ă— USB 5Gbps (Type-A), 4 Ă— USB 2.0 (Type-A) |
| USB (Front) | 1 Ă— USB-C 5Gbps, 2 Ă— USB 5Gbps (via header), 4 Ă— USB 2.0 (via headers) |
| Audio | Realtek 7.1 HD Audio CODEC, up to 24-bit/192kHz, jack-detection, multi-streaming, front-panel retasking |
| Audio Features | Audio shielding, premium capacitors, dedicated PCB layers |
| Back Panel I/O | 2 × USB 10Gbps (1 × Type-A, 1 × Type-C), 2 × USB 5Gbps (Type-A), 4 × USB 2.0 (Type-A), 2 × DP, 1 × HDMI, 1 × Wi-Fi module, 1 × 2.5Gb LAN, 3 × audio jacks, BIOS FlashBack™, PS/2 combo |
| Internal I/O | Cooling:Â 1 Ă— CPU Fan, 1 Ă— CPU OPT, 1 Ă— AIO Pump, 2 Ă— Chassis Fan Power:Â 1 Ă— 24-pin ATX, 1 Ă— 8-pin +12V CPU, 1 Ă— 4-pin +12V CPU Storage:Â 3 Ă— M.2, 4 Ă— SATA USB:Â 1 Ă— USB-C 5Gbps, 2 Ă— USB 5Gbps, 4 Ă— USB 2.0 Misc:Â 3 Ă— ARGB Gen2, Clear CMOS, COM, F_AUDIO, FP header, Chassis Intrusion |
| Special Features | ASUS TUF Protection (DIGI+ VRM, ESD Guards, LANGuard, Overvoltage, SafeSlot, Stainless-steel I/O) ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-LED, Q-DIMM, Q-Slot) Thermal: M.2 & VRM heatsinks EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM Aura Sync (ARGB Gen2 headers) |
| Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, DIGI+ VRM), AI Advisor, DriverHub, GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio, Norton 360 Trial, WinRAR Trial |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 Ă— SATA cables, ASUS Wi-Fi Q-Antenna, TUF Gaming sticker, M.2 rubber, M.2 screws, Quick start guide |
| Operating System | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
| Form Factor | micro-ATX, 9.6" Ă— 9.6" (24.4 Ă— 24.4 cm) |
