Product Description

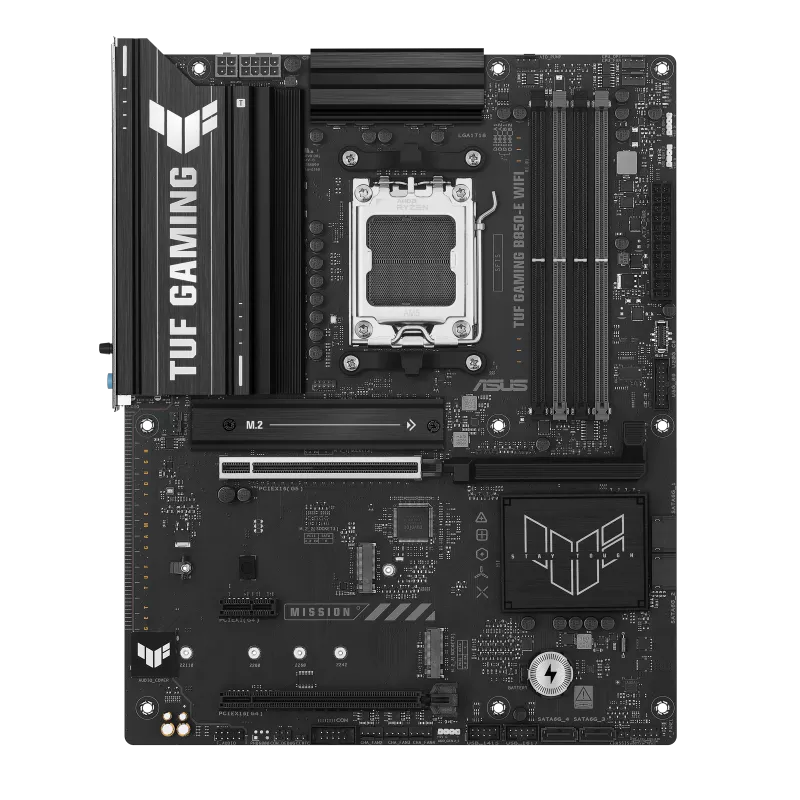

ASUS TUF Gaming B850-E WiFi – Professional Product Description
The ASUS TUF Gaming B850-E WiFi is engineered to deliver maximum durability, exceptional stability, and next-gen performance for AMD AM5 gaming builds. Powered by the AMD B850 chipset, this ATX motherboard supports Ryzen 7000, 8000, and 9000 Series processors, ensuring top-tier performance for gaming, content creation, and heavy multitasking.
Built with military-grade components, reinforced power delivery, and comprehensive cooling solutions, the B850-E WiFi guarantees reliable long-term operation even under intense workloads. Featuring support for DDR5 memory up to 8000 MHz, PCIe 5.0 expansion, three high-speed M.2 slots, and USB4 connectivity, this motherboard provides the backbone for high-performance next-generation PCs.
With Wi-Fi 6E, Bluetooth 5.3, 2.5Gb Ethernet, advanced RAID support, and the signature rugged TUF Gaming design, the B850-E WiFi combines premium durability with modern connectivity — ideal for gamers who demand stability, speed, and future-proof features.
Specifications
| Category | Specification |
| Model | ASUS TUF Gaming B850-E WiFi |
| Chipset | AMD B850 |
| CPU Socket | AM5 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Max Memory Capacity | 256 GB |
| Memory Channels | Dual-Channel |
| Max Memory Speed | Up to 8000 MHz (OC) |
| Expansion Slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16, 1 × PCIe 1× |
| PCIe Generations | PCIe 5.0 / PCIe 4.0 |
| M.2 Slots | 3 × M.2 (PCIe 4.0/5.0 depending on slot) |
| SATA Ports | 4 × SATA 6Gb/s |
| Storage RAID | RAID 0 / 1 / 5 / 10 |
| Graphics Outputs | 1 × HDMI, 1 × DisplayPort |
| Rear USB Ports | USB 4.0 Type-C ×1, USB 3.2 Gen2 ×?, USB 3.2 Gen1 ×?, USB 2.0 ×3 (based on provided data) |
| Front USB Headers | 1 × USB-C (internal), 2 × USB 3.2 (internal), 4 × USB 2.0 (internal) |
| Networking | 1 × 2.5Gb Ethernet |
| Wi-Fi | Wi-Fi 6E (2.4 / 5 / 6 GHz) |
| Bluetooth | Bluetooth 5.3 |
| Audio Chipset | Realtek 7.1 Surround Sound |
| Audio I/O | Audio out, mic-in |
| Internal Connectors | M.2, SATA, fan headers, USB headers |
| Included Accessories | Cables, Quick Start Guide |
| Warranty | 3 Years |
