Product Description

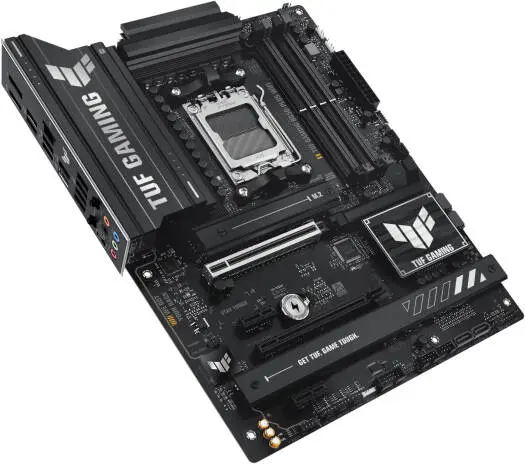

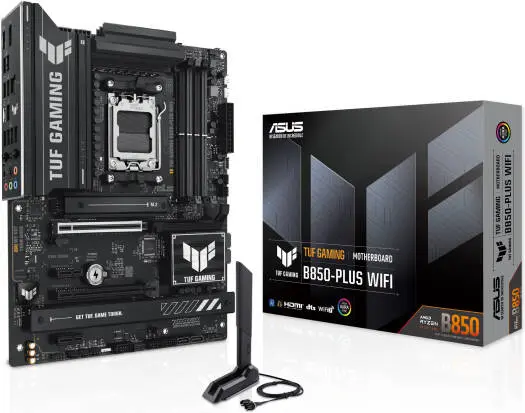

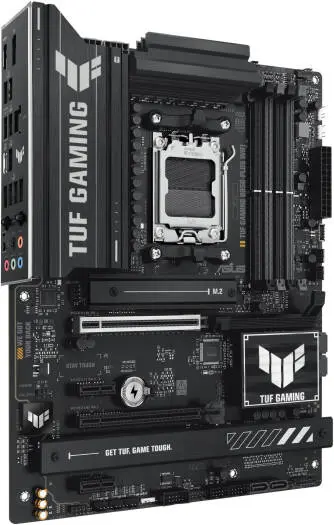

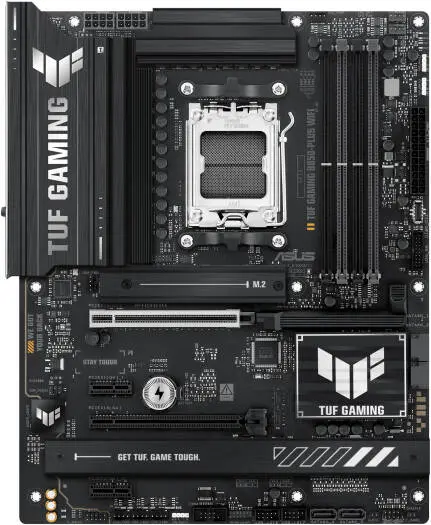

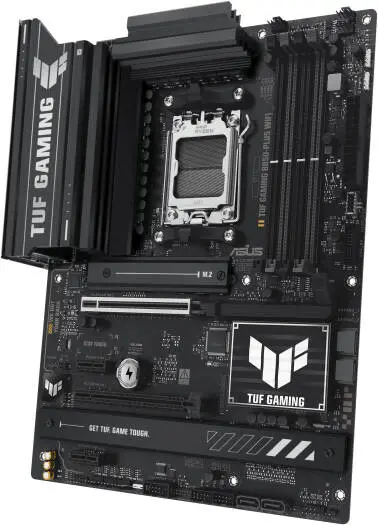

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard
Model: 90MB1J30-M0EAY0
The ASUS TUF GAMING B850-PLUS WIFI is built to deliver unwavering durability, robust power delivery, and next-gen connectivity for modern AMD Ryzenâ„¢ PCs. Designed with military-grade components, reinforced power architecture, and extensive thermal solutions, it ensures stable and efficient performance for long gaming sessions and advanced AI workloads.
Powered by the AMD B850 chipset, this motherboard supports the latest Ryzen 9000 / 8000 / 7000 Series processors, offering exceptional performance and forward-thinking compatibility. With support for DDR5 memory up to 192GB, PCIe 5.0 graphics, triple high-speed M.2 slots, and Wi-Fi 7 connectivity, it provides all the bandwidth and speed required for gaming, creation, and multitasking.
Enhanced with TUF Protection, improved power stages, comprehensive cooling, and optimized layout, the B850-PLUS WIFI ensures long-lasting reliability. Meanwhile, features like Aura Sync RGB, M.2 heatsinks, BIOS FlashBackâ„¢, and Armoury Crate make customization and system management easier than ever.
This is the ideal motherboard for gamers who want stability + performance + future-proof features in a clean, rugged, and reliable platform.
Specifications
| Category | Specification |
| Model | TUF GAMING B850-PLUS WIFI |
| CPU Support | AMD Socket AM5 (Ryzenâ„¢ 9000 / 8000 / 7000 Series*) |
| Chipset | AMD B850 Chipset |
| Memory | 4 × DIMM DDR5, up to 192GB, up to 8000+ MT/s (OC), ECC/Non-ECC, Dual Channel, EXPO™ & AEMP support |
| Graphics Outputs | 1 × DisplayPort (8K@30Hz), 1 × HDMI (4K@60Hz) |
| Expansion Slots | 1 × PCIe 5.0 x16 (SafeSlot) 1 × PCIe 4.0 x16 2 × PCIe 4.0 x1 |
| Storage | 3 × M.2 (PCIe 5.0/4.0) 4 × SATA 6Gb/s AMD RAIDXpert2 |
| Ethernet | Realtek 2.5Gb Ethernet + TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2×2 Bluetooth® 5.4 |
| Rear USB Ports | 10 Ports: 1 × USB 20Gbps Type-C 3 × USB 10Gbps 4 × USB 5Gbps 2 × USB 2.0 |
| Front USB Ports | 7 Ports (incl. USB Type-C & headers) |
| Audio | Realtek ALC1220P, 7.1 Surround, up to 32-bit/192kHz |

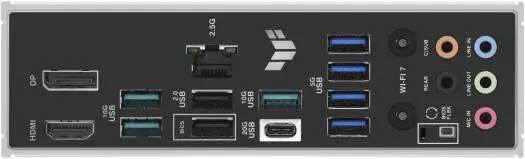

| Back Panel I/O | DP, HDMI, Wi-Fi module, 2.5Gb Ethernet, 5 × Audio jacks, BIOS FlashBack™, USB ports |
| Internal I/O | Fan headers, Gen2 ARGB headers, USB headers, Power connectors, 3 × M.2, 4 × SATA |
| Special Features | TUF Protection, Q-Design, Aura Sync, M.2 heatsinks, VRM cooling, EZ DIY tools |
| Software | Armoury Crate, Aura Creator, Fan Xpert 4, DTS Audio, UEFI BIOS, Norton Trial, WinRAR Trial |
| BIOS | 256Mb UEFI AMI BIOS |
| Accessories | 2 × SATA cables, WiFi Q-Antenna, TUF stickers, M.2 rubber, Quick Start Guide |
| OS Support | Windows 11 |
| Form Factor | ATX (30.5 × 24.4 cm) |
