Product Description

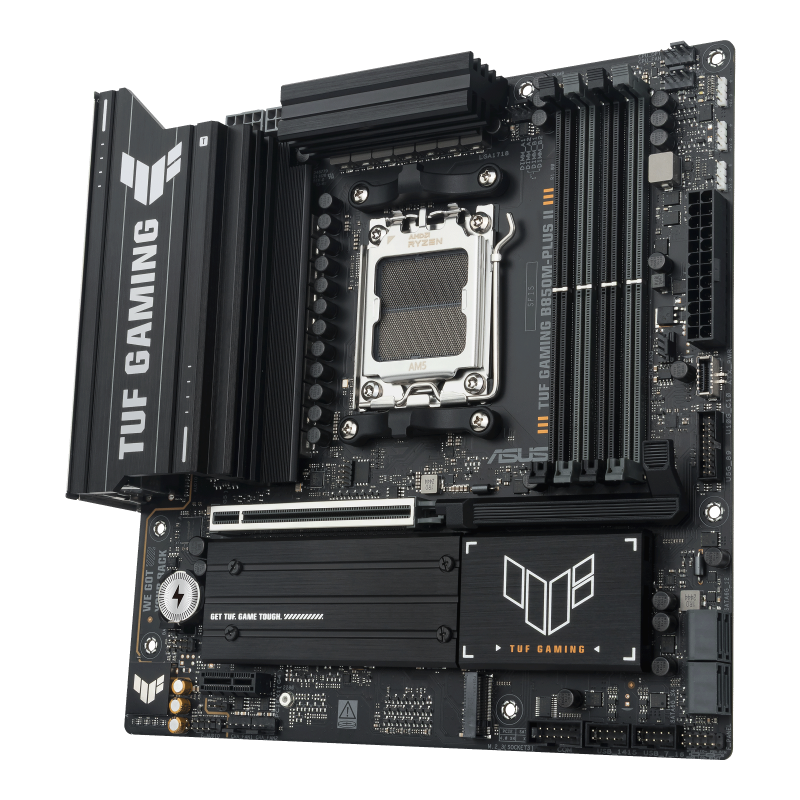

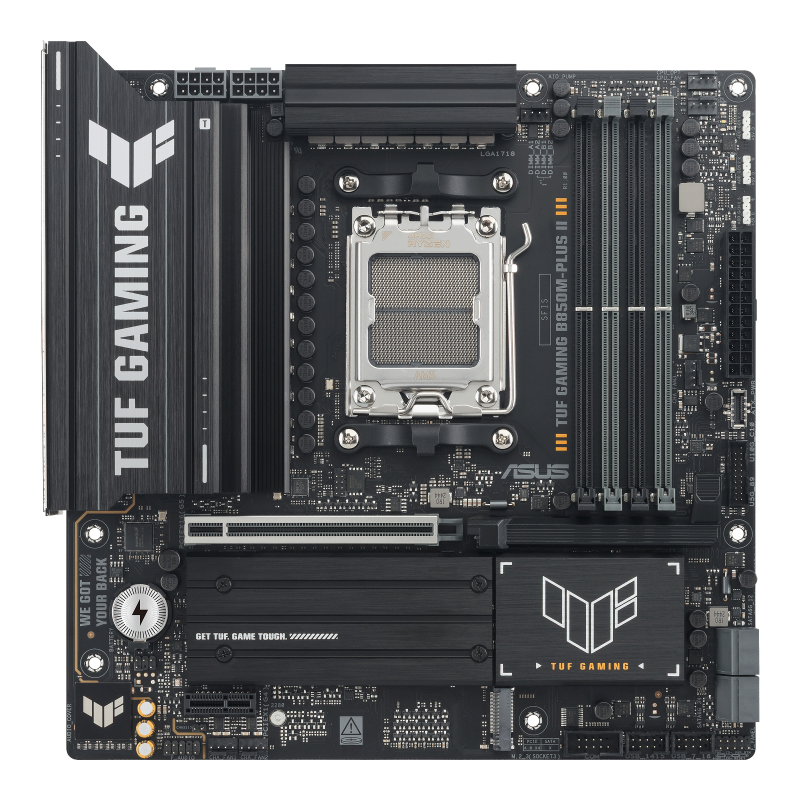

 TUF GAMING B850M-PLUS II
ASUS TUF GAMING B850M-PLUS II takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Â
Â
Specifications
| Model | TUF GAMING B850M-PLUS II |
| CPU | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD B850 |
| Memory | 4 × DIMM, max 256GB DDR5, up to 8000+ MT/s (OC), ECC & Non-ECC, Dual channel, EXPO™, AEMP |
| Graphics | 1 Ă— DisplayPort 1.4 (up to 8K@30Hz), 1 Ă— HDMI 2.1 (up to 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 1 Ă— PCIe 5.0 x16 Ryzen 8000: 1 Ă— PCIe 4.0 x16 (x8/x4) Chipset: 1 Ă— PCIe 4.0 x1 |
| Storage | 3 Ă— M.2 (Ryzen 9000: PCIe 5.0/4.0, Ryzen 8000: PCIe 4.0), 4 Ă— SATA 6Gb/s |
| RAID Support | Ryzen 9000: RAID 0/1/5/10 Ryzen 8000: RAID 0/1 Ryzen 7000: RAID 0/1/10 |
| Ethernet | Realtek 2.5Gb Ethernet, TUF LANGuard |
| USB (Rear) | 1 Ă— USB-C 20Gbps, 3 Ă— USB-A 10Gbps, 4 Ă— USB-A 5Gbps, 4 Ă— USB-A 2.0 |
| USB (Front) | 1 Ă— USB-C 10Gbps, 2 Ă— USB 5Gbps (via header), 4 Ă— USB 2.0 (via headers) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC, 120 dB SNR playback, 113 dB SNR recording, 32-bit/192kHz playback |
| Audio Features | Audio shielding, premium capacitors, dedicated PCB layers, de-pop circuit, audio cover |
| Back Panel I/O | 1 × USB-C 20Gbps, 3 × USB-A 10Gbps, 4 × USB-A 5Gbps, 4 × USB-A 2.0, 1 × DP, 1 × HDMI, 1 × 2.5Gb LAN, 3 × Audio jacks, BIOS FlashBack™, Clear CMOS |
| Internal I/O | 1 Ă— CPU Fan, 1 Ă— CPU OPT, 1 Ă— AIO Pump, 3 Ă— Chassis Fan 1 Ă— 24-pin ATX, 2 Ă— 8-pin CPU power3 Ă— M.2, 4 Ă— SATA 6Gb/s1 Ă— USB-C 10Gbps, 2 Ă— USB 5Gbps, 4 Ă— USB 2.03 Ă— ARGB Gen2 headers, COM, Intrusion, F_AUDIO, FP header |
| Special Features | ASUS TUF Protection (DIGI+ VRM, ESD Guards, LANGuard, SafeSlot, Stainless-steel I/O) Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-LED) Thermal solution (M.2 & VRM heatsinks) EZ DIY (BIOS FlashBack™, Pre-mounted I/O, SafeDIMM) Aura Sync (ARGB Gen2 headers) |
| Software Features | Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, AI Advisor, DriverHub, TurboV Core, DTS Audio Processing, Adobe CC Trial, Norton 360 Trial, WinRAR Trial |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

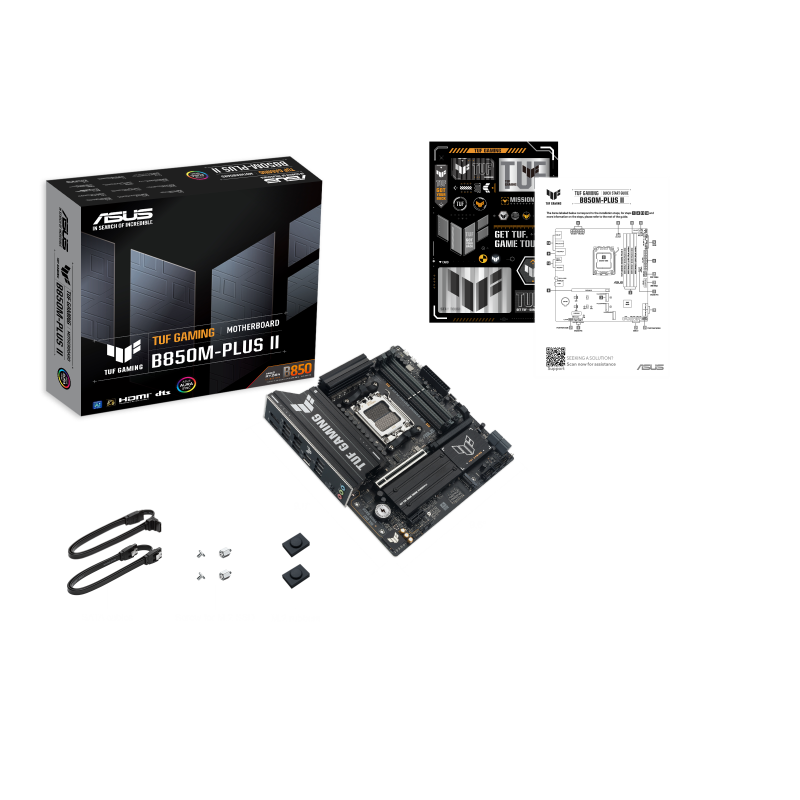

| Accessories | 2 Ă— SATA cables, TUF Gaming sticker, M.2 rubber, M.2 screws, Quick start guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | micro-ATX, 9.6" Ă— 9.6" (24.4 Ă— 24.4 cm) |
