Product Description

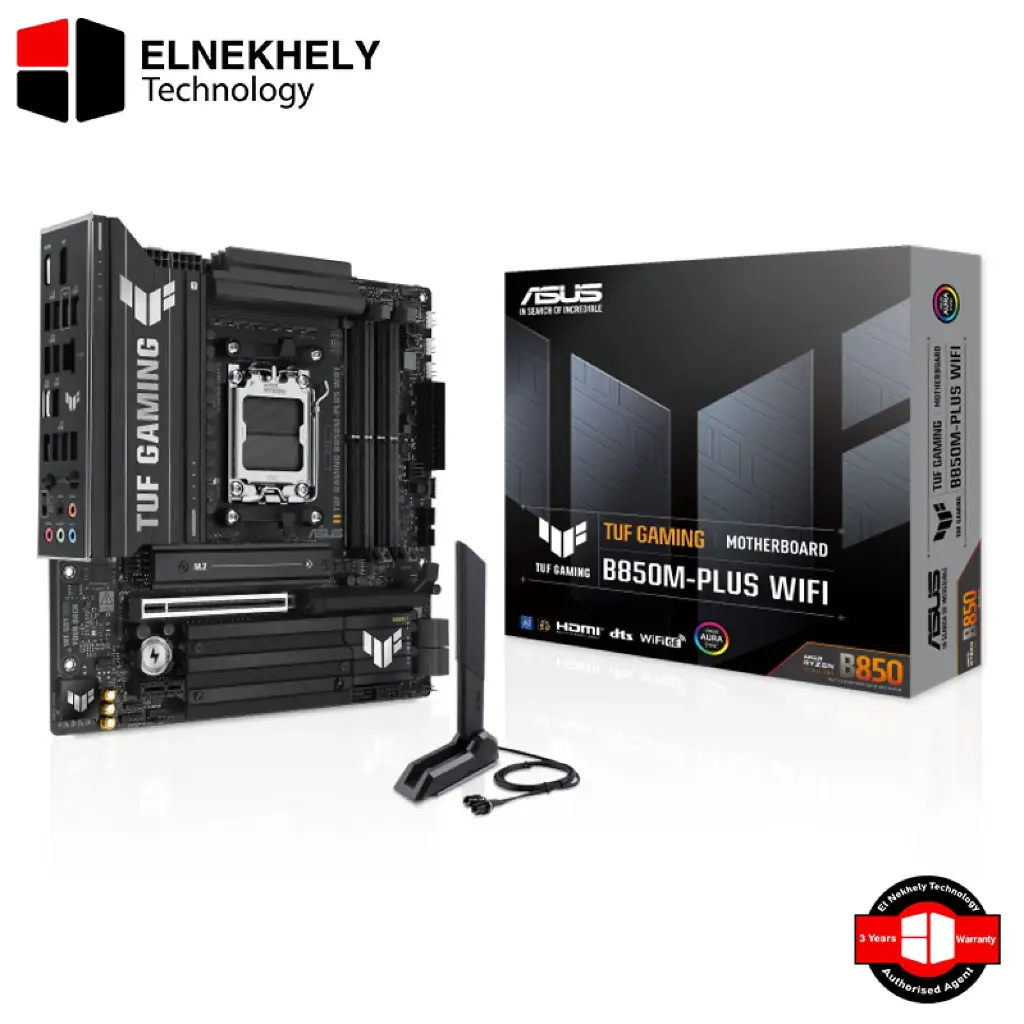

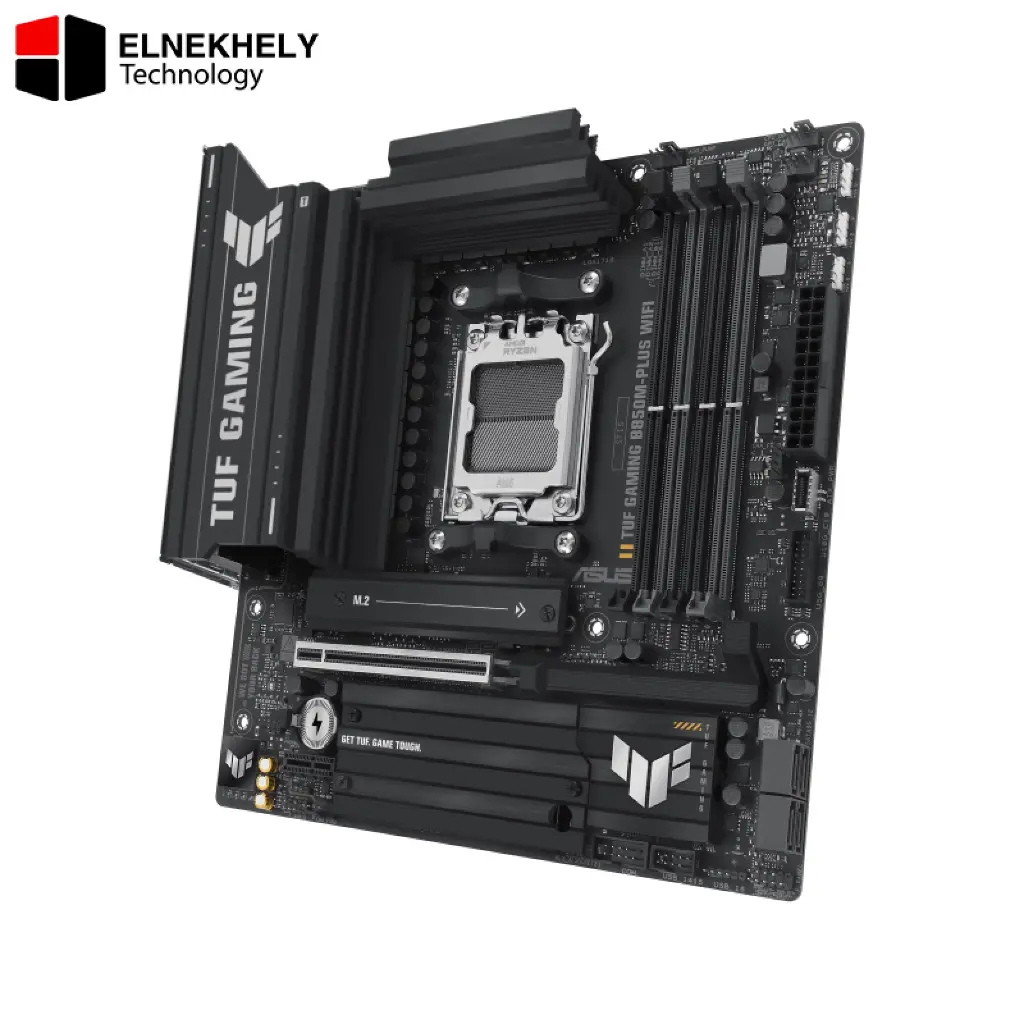

ASUS TUF Gaming B850M-Plus Wi-Fi
The ASUS TUF Gaming B850M-Plus Wi-Fi is a compact, military-grade micro-ATX motherboard built to deliver exceptional reliability, next-gen performance, and future-proof connectivity for your AMD AM5 gaming PC. Featuring the advanced AMD B850 chipset, it supports the newest Ryzen 7000, 8000, and 9000 Series processors, unlocking high levels of speed and efficiency for gaming, creation, and multitasking.
With support for up to 256GB of DDR5 RAM, ultra-fast memory overclocking up to 8000+ MT/s, and a robust VRM design, this motherboard ensures stable and responsive performance even in intensive gaming sessions. For graphics and storage, it offers PCIe 5.0 x16, three ultra-fast M.2 slots (up to PCIe 5.0 x4), and four SATA ports, giving you flexible upgrade options.
Connectivity is equally powerful with USB 20Gbps Type-C, Wi-Fi 6E, Bluetooth 5.3, Realtek 2.5Gb Ethernet, and a premium ALC1220P audio chipset for crystal-clear sound. Built with TUF military-grade durability, reinforced slots, enhanced cooling, and ASUS Q-Design features for easier installation, the B850M-Plus Wi-Fi is engineered for long-term stability and gaming excellence.
A perfect choice for gamers who want high-end performance in a compact mATX form factor.
Specifications
| Category | Specification |
| Model | ASUS TUF Gaming B850M-Plus Wi-Fi |
| Form Factor | micro-ATX (24.4 × 24.4 cm) |
| CPU Compatibility | AMD Ryzen 7000 / 8000 / 9000 Series |
| Socket | AM5 |
| Chipset | AMD B850 |
| Memory Support | DDR5 |
| Memory Slots | 4 × DIMM |
| Max Capacity | 256GB |
| Memory Speed | Up to 8000+ MT/s (OC) |
| Memory Features | Dual Channel, AMD EXPOâ„¢, AEMP |
| Graphics Outputs | 1 × DisplayPort (8K@30Hz), 1 × HDMI (4K@60Hz) |
| PCIe Slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16 (Ryzen 8000), 1 × PCIe 4.0 x1 |
| Storage Support | 3 × M.2 (PCIe 5.0/4.0), 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (depending on CPU) |
| Ethernet | Realtek 2.5Gb LAN + TUF LANGuard |
| Wi-Fi | Wi-Fi 6E (2×2) |
| Bluetooth | Bluetooth 5.3 |
| Rear USB Ports | 1 × USB-C 20Gbps, 3 × USB 10Gbps, 4 × USB 5Gbps, 4 × USB 2.0 |
| Front USB Headers | USB-C (10Gbps), USB 5Gbps header (2 ports), USB 2.0 headers (up to 5 ports) |
| Audio | Realtek ALC1220P, 7.1 Surround HD Audio |
| Rear Audio Ports | 5 × audio jacks + Optical S/PDIF |
| Back Panel I/O | DisplayPort, HDMI, USB-C, 2.5Gb LAN, Wi-Fi, Audio jacks, BIOS FlashBackâ„¢ |
| Internal I/O | 3 × M.2 slots, 4 × SATA, fan headers, RGB headers, USB headers |
| RGB Support | Aura Sync, 3 × ARGB Gen2 headers |
| Special Features | TUF Protection, Q-Design (Q-Release, Q-Latch, Q-DIMM), ASUS Thermal Solution |
| Software | Armoury Crate, Fan Xpert 4, TurboV Core, Norton 360 (trial), Adobe Creative Cloud (trial) |
| OS Support | Windows 11 / Windows 10 (64-bit) |
