Product Description

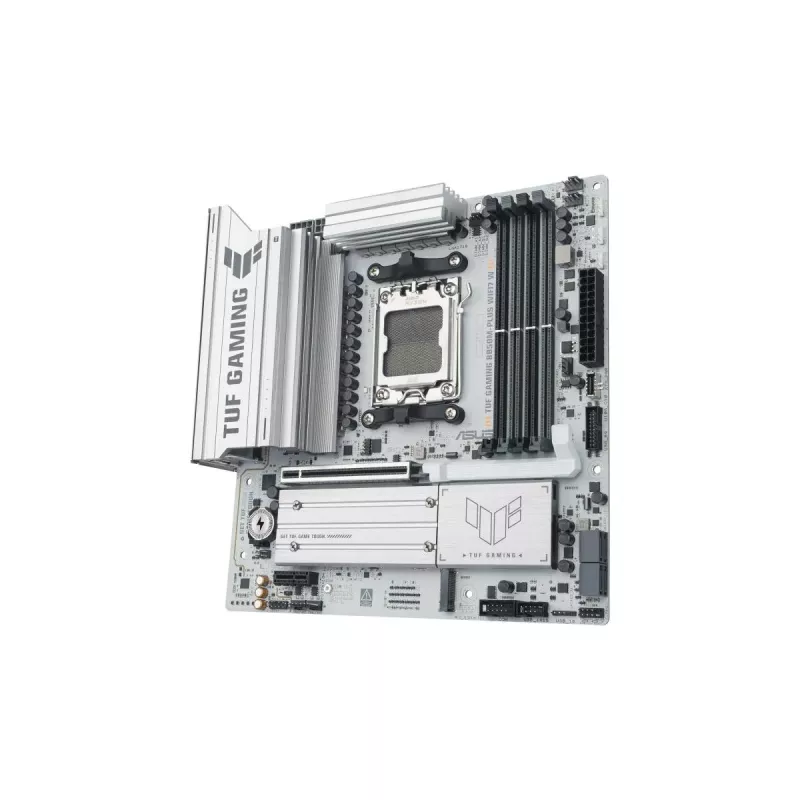

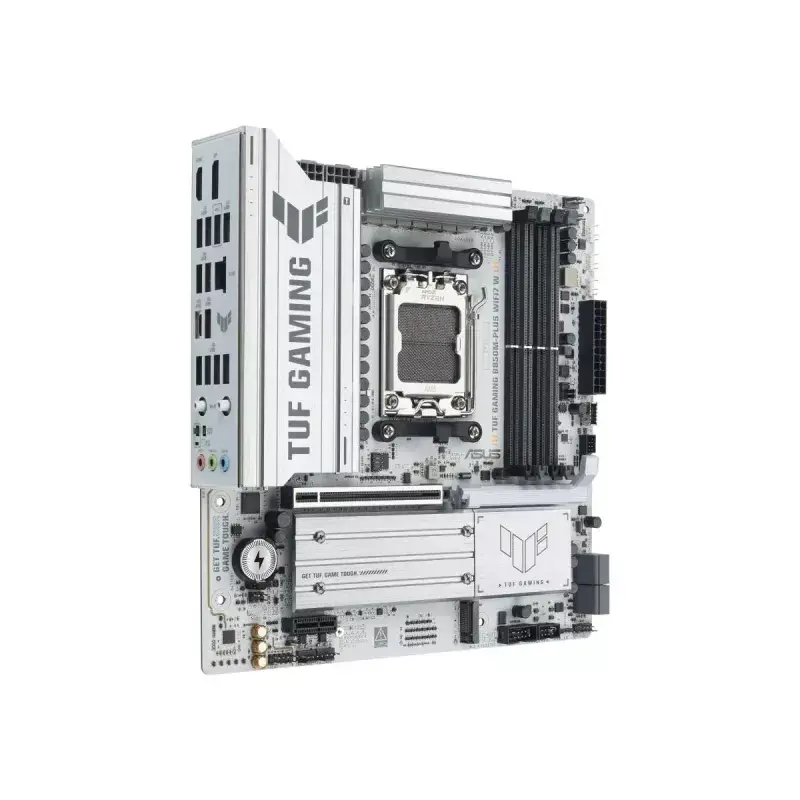

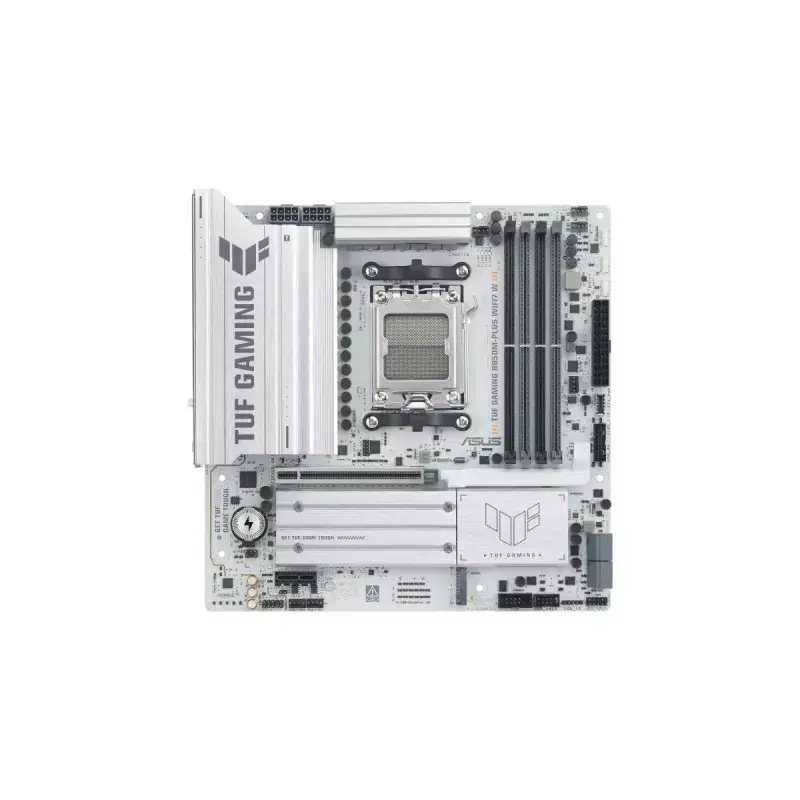

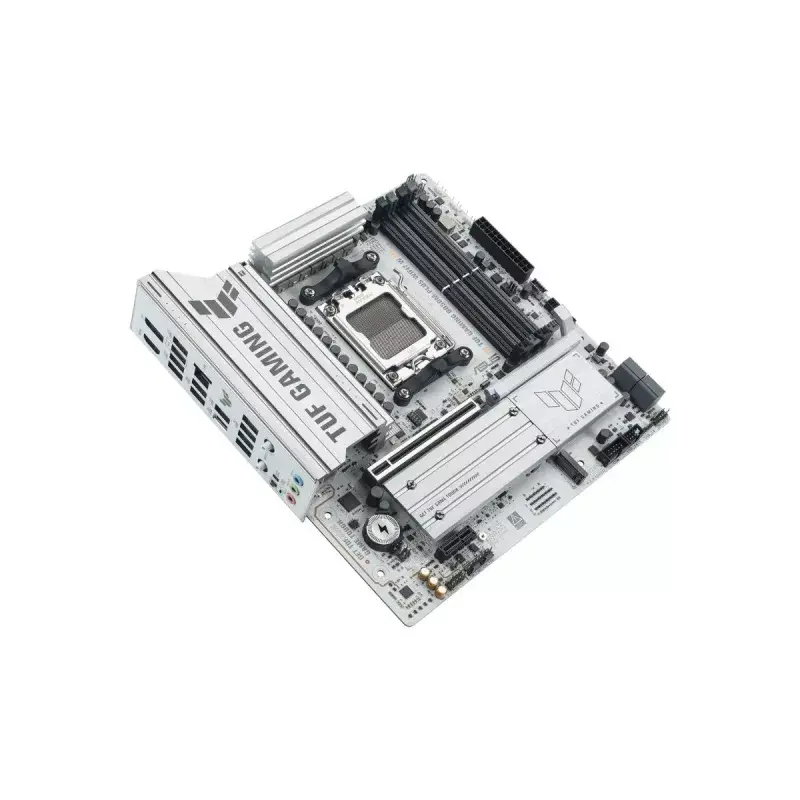

ASUS TUF GAMING B850M-PLUS WiFi 7 – Built Tough. Powered for Victory.
Product Description
The ASUS TUF GAMING B850M-PLUS WiFi 7 merges next-gen performance, military-grade durability, and modern connectivity to give gamers the reliability they need for every battle.
Built on the AMD B850 chipset with Socket AM5 support, it’s compatible with the latest Ryzen™ 9000 / 8000 / 7000 Series processors, delivering smooth multitasking and gaming performance.
Designed for endurance, the board features a reinforced power design, advanced cooling architecture, and premium capacitors that guarantee long-term stability even under heavy loads.
Next-gen connectivity options — including Wi-Fi 7, Bluetooth® 5.4, PCIe 5.0, and DDR5 memory up to 256 GB — ensure that your rig stays future-ready.
Engineered with the signature TUF military-grade reliability and three-year manufacturer warranty, this micro-ATX motherboard delivers both toughness and cutting-edge technology in a compact form factor.
Specifications
| Category | Details |
| Model | ASUS TUF GAMING B850M-PLUS WiFi 7 |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzenâ„¢ 7000 / 8000 / 9000 Series Processors |
| Socket | AMD AM5 |
| Form Factor | micro-ATX (mATX) |
| Memory Type | DDR5 |
| Memory Channels | Dual Channel |
| Total RAM Slots | 4 × 288-Pin DIMM |
| Max Memory Capacity | 256 GB |
| Memory Speed (OC) | Up to 8000 MHz |
| Storage | 3 × M.2 slots (PCIe 5.0 / 4.0) • 4 × SATA 6 Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| Expansion Slots | 1 × PCIe 5.0 x16 • 1 × PCIe 4.0 x1 |
| Graphics Outputs | 1 × HDMI 2.1 • 1 × DisplayPort |
| Networking | Intel® 2.5 Gb Ethernet with ASUS LANGuard |
| Wireless Connectivity | Wi-Fi 7 (2.4 / 5 / 6 GHz bands) • Bluetooth® v5.4 |
| USB (Rear + Front) | 1 × USB-C 3.2 Gen 2 • 7 × USB 3.1 • 4 × USB 2.0 • 1 × USB 3.2 • 1 × USB-C (Int.) • 2 × USB 3.1 (Int.) • 4 × USB 2.0 (Int.) |
| Audio Chipset | Realtek ALC1220P 7.1 Surround Sound |
| Audio Ports | Line-out, Mic-in, Optical S/PDIF |
| Other Features | TUF components, Q-Design for easy build, Enhanced Thermal Solution |
| Included Accessories | SATA cables, Quick Start Guide |
| Warranty | 3 Years Manufacturer Warranty |
| User Class | Mid-Range Gaming & Multitasking |
