Product Description

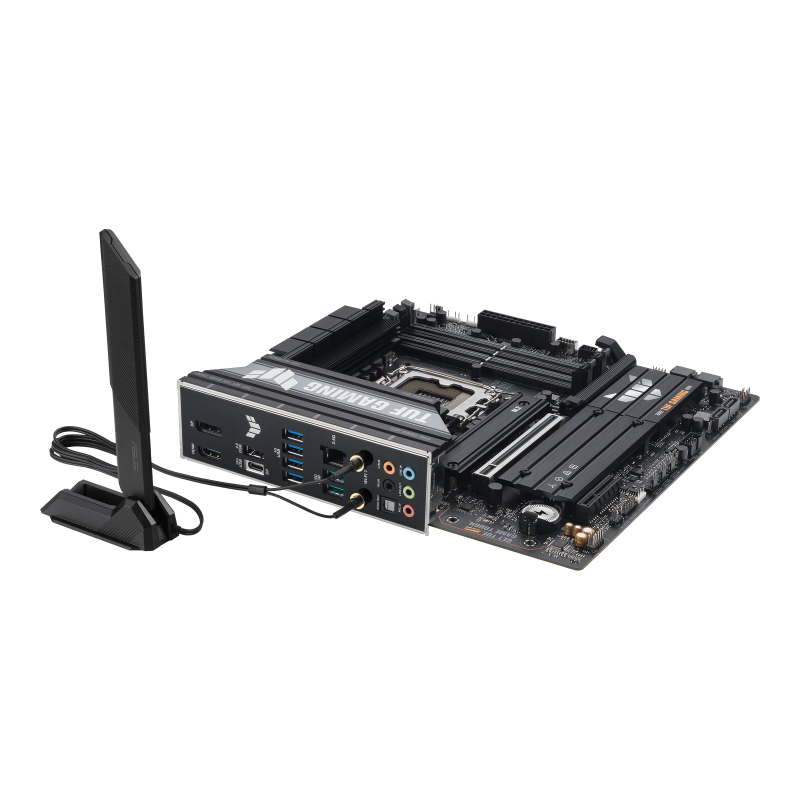

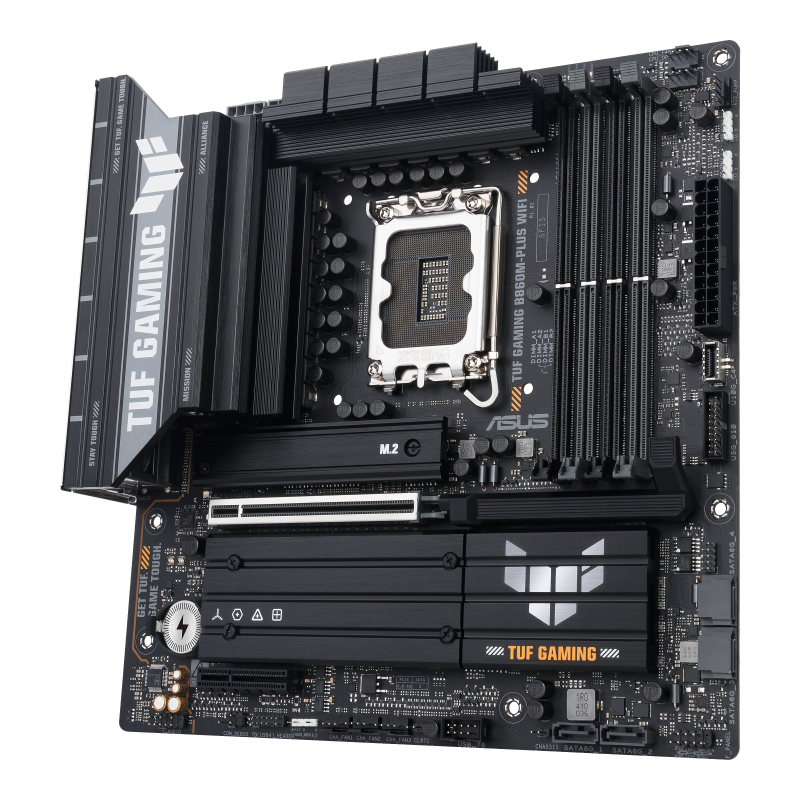

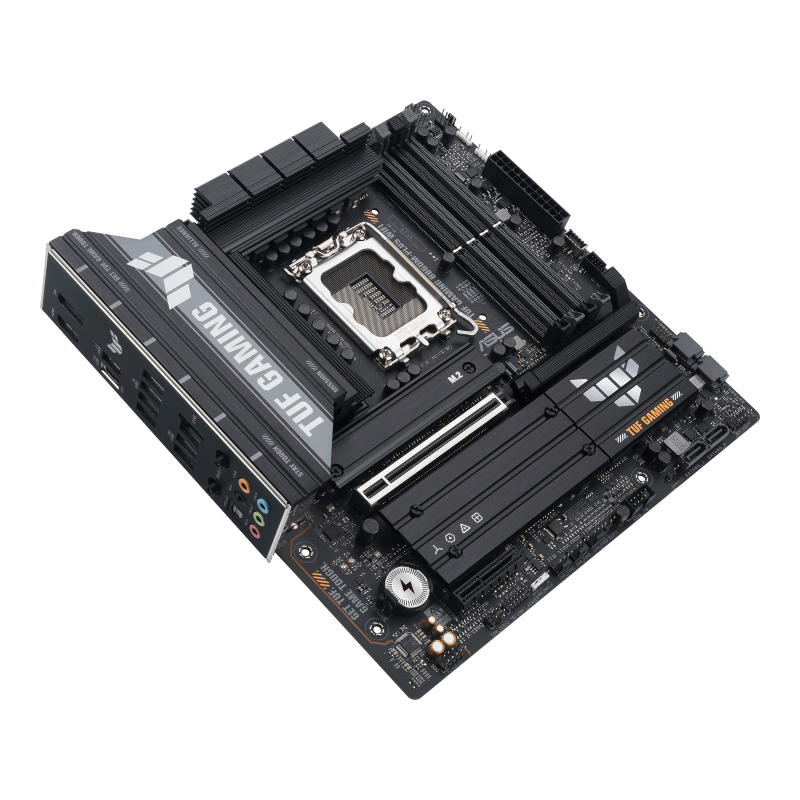

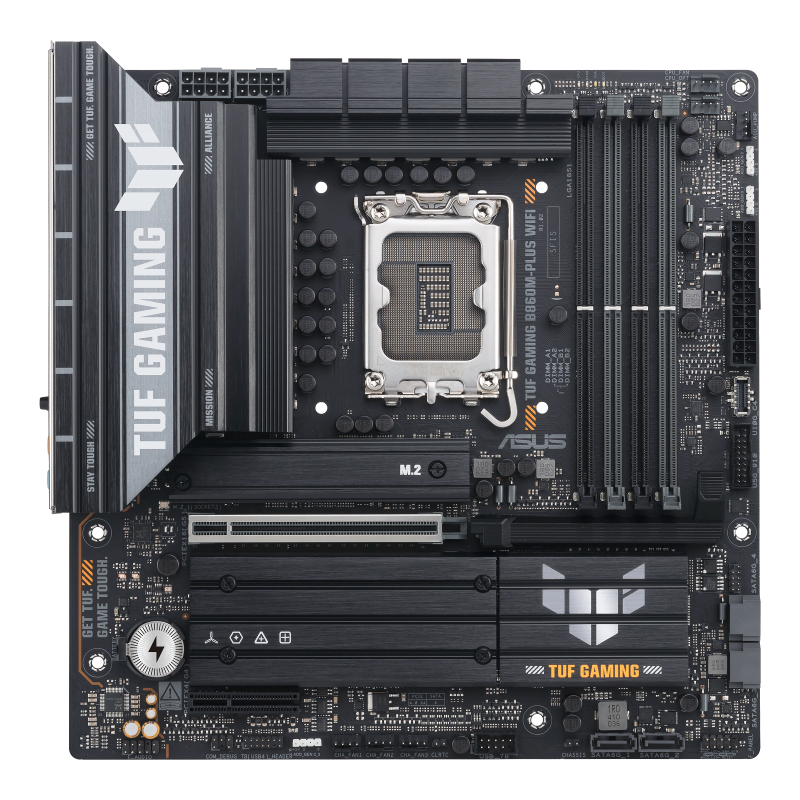

TUF GAMING B860M-PLUS WIFI
Â
ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Â
Â
Specifications
| Model | TUF GAMING B860M-PLUS WIFI |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to ASUS support for the CPU support list. |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile III (AEMPIII) |
| Graphics | 1 x DisplayPort (max. 4K@60Hz) 1 x HDMI™ port (max. 4K@60Hz) 1 x USB 20Gbps (Type-C®) supports DisplayPort video output |
| Expansion Slots | Intel® Core™ Ultra Processors: 1 x PCIe 5.0 x16 slot Intel® B860 Chipset: 1 x PCIe 4.0 x4 slot |
| Storage | 3 x M.2 slots (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4) 4 x SATA 6Gb/s ports Supports RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2), supports 2.4/5/6GHz Bluetooth v5.4 |
| USB | Rear: 1 x USB 20Gbps (Type-C®), 2 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 1 x USB 2.0 (Type-A) Front: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports up to 24-bit/192 kHz playback Audio shielding and premium capacitors, rear optical S/PDIF out |

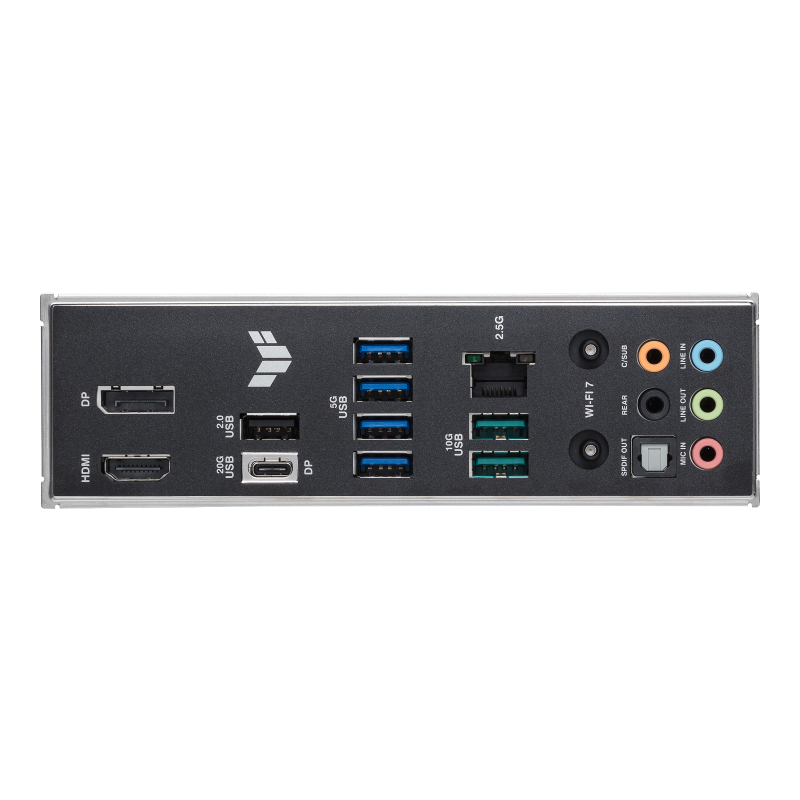

| Back Panel I/O Ports | 1 x USB 20Gbps (Type-C® with DP Alt mode), 2 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 1 x USB 2.0 (Type-A) 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks, 1 x Optical S/PDIF out |
| Internal I/O Connectors | 4-pin headers for CPU/Chassis fans and AIO pump, power connectors, M.2 slots, SATA ports, USB headers, RGB headers, and system panel headers |
| Special Features | ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, SafeSlot, etc.) ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, etc.) ASUS Thermal Solution (VRM heatsinks, M.2 heatsinks) AURA Sync (Addressable Gen 2 headers) |
| Software Features | Armoury Crate (AURA Creator, Fan Xpert 2+) TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS Supports ASUS EZ DIY features (EZ Flash, CrashFree BIOS 3, etc.) |
| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 Rubber Packages, 1 x TUF Gaming sticker, 1 x M.2 SSD screw package, 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | mATX, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS TUF Gaming B860M-Plus WiFi LGA 1851 Micro-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 2x M.2 Slots, WiFi & BT | 90MB1JV0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS TUF Gaming B860M-Plus WiFi LGA 1851 Micro-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 2x M.2 Slots, WiFi & BT | 90MB1JV0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
