Product Description

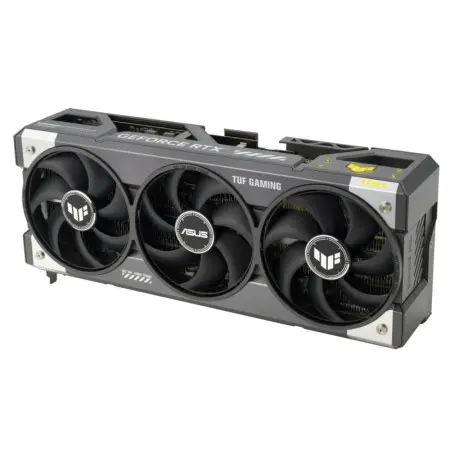

ASUS TUF Gaming GeForce RTXâ„¢ 5080 16GB GDDR7
 Overview
Game TUF. Built to Last.
The ASUS TUF Gaming GeForce RTX™ 5080 is engineered for gamers and creators who demand absolute endurance and elite performance. Elevated by enhanced cooling, military-grade components, and reinforced structural design, this GPU delivers unrelenting stability under the most extreme conditions. Built on NVIDIA’s Blackwell architecture and powered by 16GB of GDDR7 memory, the RTX 5080 brings stunning realism and next-generation AI-driven graphics to life.
Lock, load, and dominate with TUF reliability, designed to push the limits of performance and durability.
 Key Features
 Performance & Architecture
GPU Boost Clock: 2640 MHz (OC Mode) / 2617 MHz (Default Mode)
Memory: 16 GB GDDR7 on a 256-bit bus for ultra-fast bandwidth and future-ready 4K/8K gaming.
NVIDIA Blackwell Architecture delivers cutting-edge performance with DLSS 4 and advanced ray tracing.
PCIe 5.0 interface ensures maximum data throughput for modern gaming systems.
 Military-Grade Durability
Military-grade capacitors enhance power stability and lifespan.
Protective PCB coating defends against moisture, dust, and debris—reducing short-circuit risks.
ASUS GPU Guard & Support Bracket reinforce the GPU, reducing flex and ensuring stable mounting.
Auto-Extreme Manufacturing ensures precision soldering for superior reliability and consistency.
Advanced Cooling System
3.6-slot heatsink design with massive fin array for maximum surface area.
Triple Axial-tech fans optimized for high airflow and low noise.
Phase-change GPU thermal pad offers superior heat transfer, outlasting traditional thermal paste.
Vented backplate improves cooling efficiency and structural rigidityIntelligent Control
GPU Tweak III software gives intuitive control for performance tuning, fan curves, and real-time system monitoring.
0dB technology stops fans completely at low temperatures for silent operation.
Specifications
| Category | Details |
| Graphics Engine | NVIDIA® GeForce RTX™ 5080 |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 10,752 |
| Boost Clock | 2640 MHz (OC) / 2617 MHz (Default) |
| Memory | 16 GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 30 Gbps |
| Bus Standard | PCI Express 5.0 |
| Maximum Resolution | 7680 × 4320 (8K UHD) |
| Display Outputs | 3 × DisplayPort 2.1b, 2 × HDMI 2.1b |
| Max Displays | 4 |
| Cooling Type | Triple Fan (Axial-tech) |
| Slot Design | 3.6 Slots |
| Color | TUF Gunmetal / Black |
| Illumination | Subtle Aura Sync RGB Accent |
| Power Connector | 1 × 16-pin |
| Recommended PSU | 850 W |
| Dimensions (L × W × H) | 348 × 72 × 146 mm |
| Weight | 1.94 kg |
| Packaging Dimensions | 425.9 × 266 × 99 mm |
| Package Weight | 3.01 kg |
| Software | ASUS GPU Tweak III |
| Warranty | 3 Years Manufacturer Warranty |
