Product Description

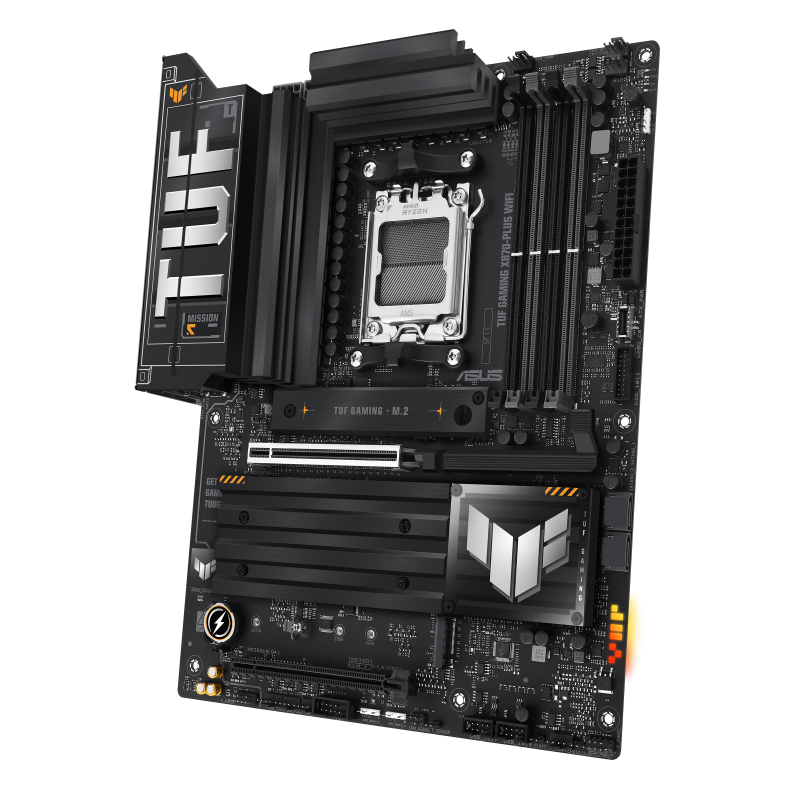

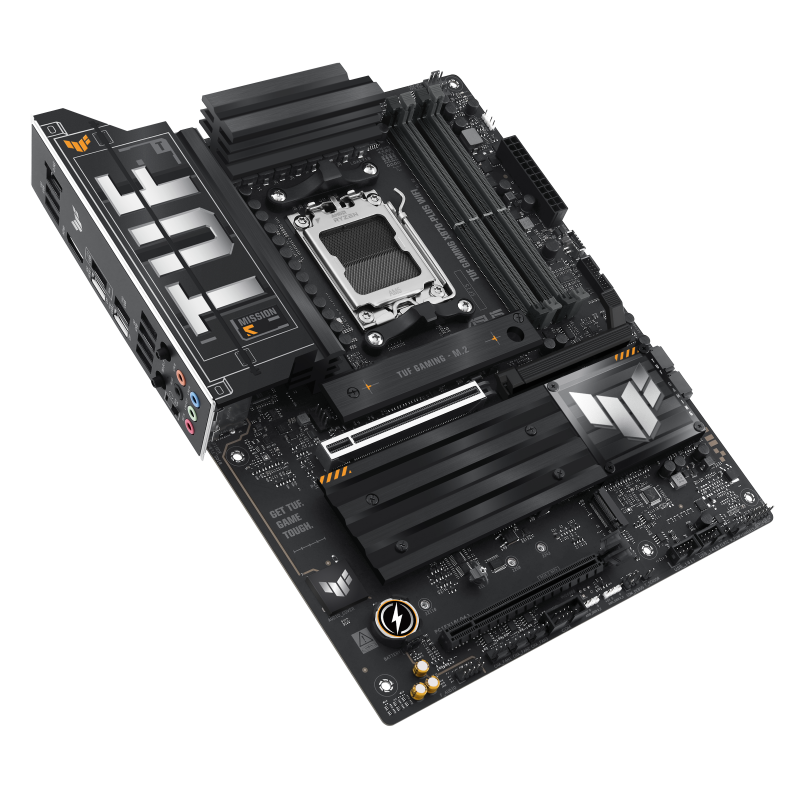

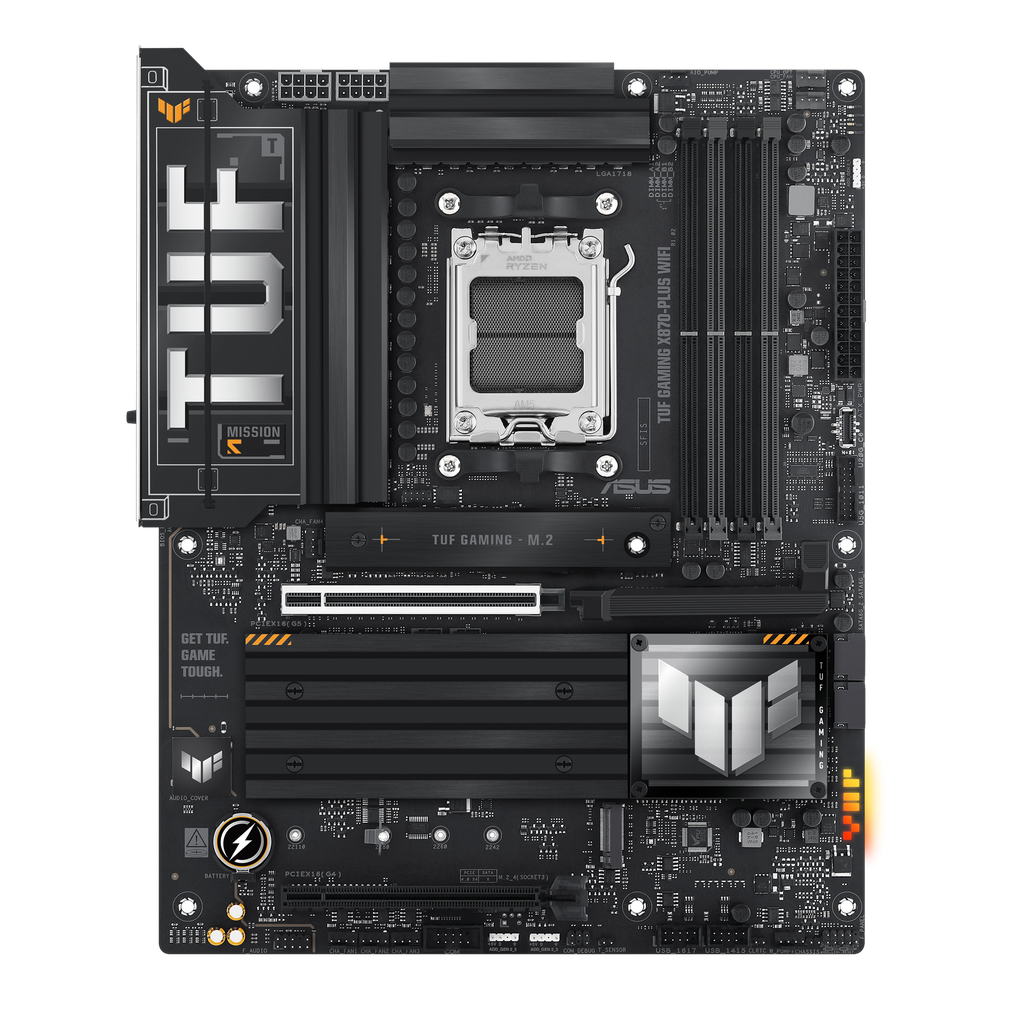

TUF GAMING X870-PLUS WIFI
ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power
Â
Â
Specifications
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel architecture Supports AMD EXPO™ and AEMP |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | For Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode)<br>For Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)<br>For X870 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)*** |
| Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* For Ryzen™ 9000 & 7000: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 5.0 x4)** For Ryzen™ 8000: M.2_1 (PCIe 4.0 x4), M.2_2 not supported For X870: M.2_3 & M.2_4 (PCIe 4.0) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (2x2 Wi-Fi 7, 802.11be), Bluetooth® v5.4*** |
| USB | Rear USB (Total 10 ports): 2 x USB4® (40Gbps), 3 x USB 10Gbps, 4 x USB 5Gbps, 1 x USB 2.0 Front USB (Total 7 ports): 1 x USB 20Gbps, 1 x USB 5Gbps, 2 x USB 2.0 headers |
| Audio | Realtek ALC1220P 7.1 Surround Sound CODEC High quality 120 dB SNR playback, 113 dB SNR recording (Line-in) Supports up to 32-Bit/192 kHz playback* |

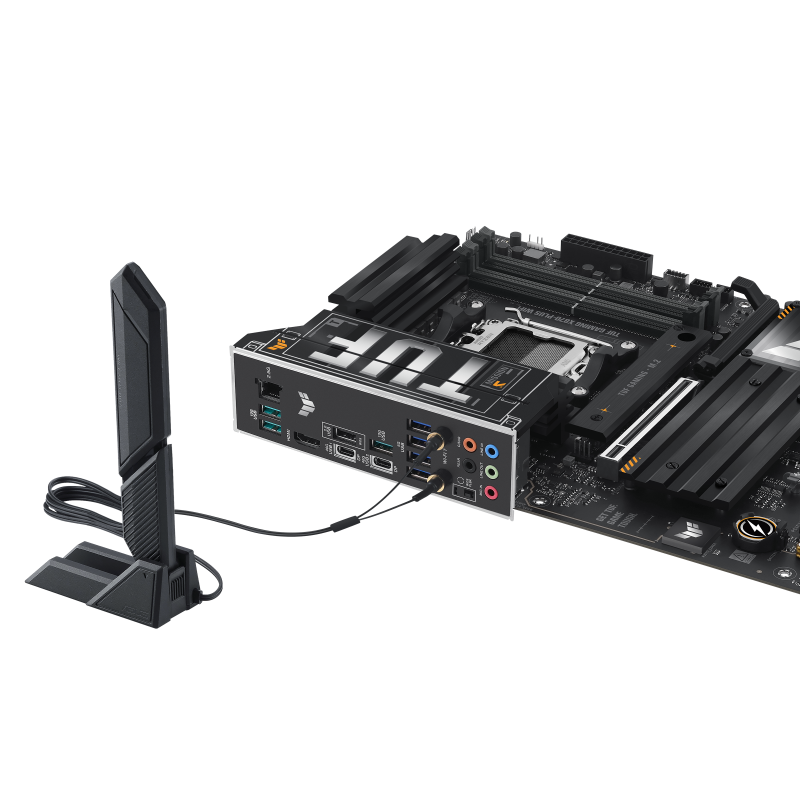

| Back Panel I/O Ports | 2 x USB4® (40Gbps), 3 x USB 10Gbps, 4 x USB 5Gbps, 1 x USB 2.0, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan/Cooling: 1 x CPU Fan header, 4 x Chassis Fan headers Power: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors Storage: 4 x M.2 slots, 2 x SATA 6Gb/s ports |
| Special Features | ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Software Features | ASUS Exclusive Software (Armoury Crate, Aura Creator, etc.), UEFI BIOS, AI Overclocking Guide |
| Manageability | WOL by PME, PXE |

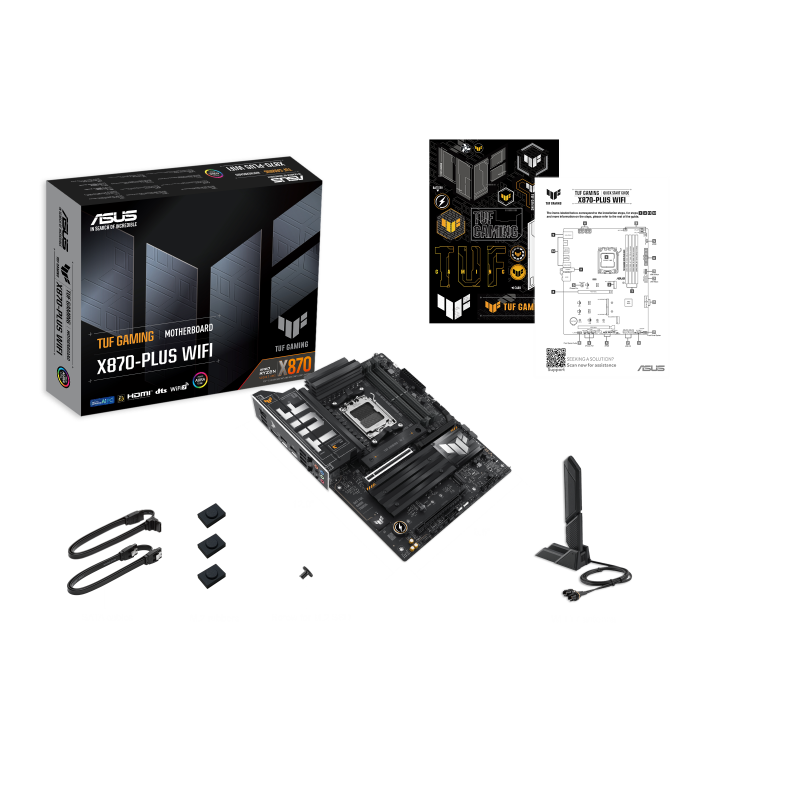

| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 rubber packages, 1 x TUF GAMING sticker |
| Documentation | 1 x Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS TUF Gaming X870-Plus WIFI AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, 1x PCIe 5.0 x16, 1x Realtek 2.5Gb Ethernet | 90MB1IU0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS TUF Gaming X870-Plus WIFI AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, 1x PCIe 5.0 x16, 1x Realtek 2.5Gb Ethernet | 90MB1IU0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
