Product Description

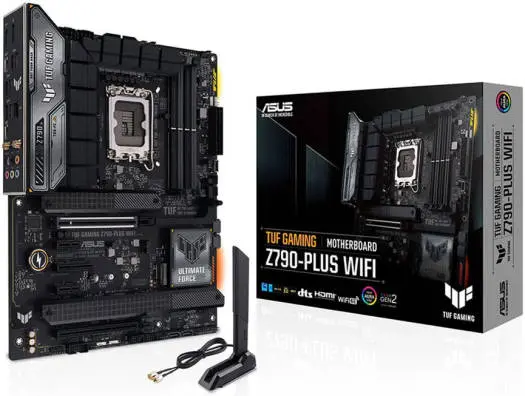

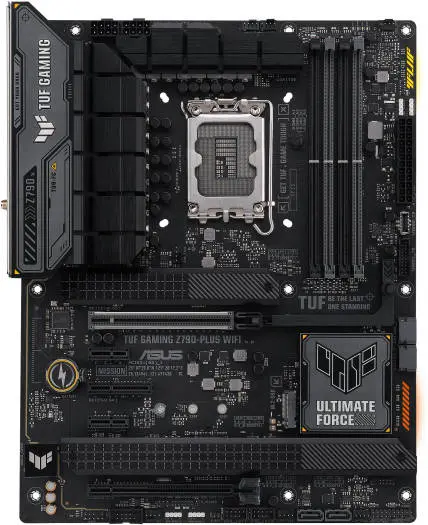

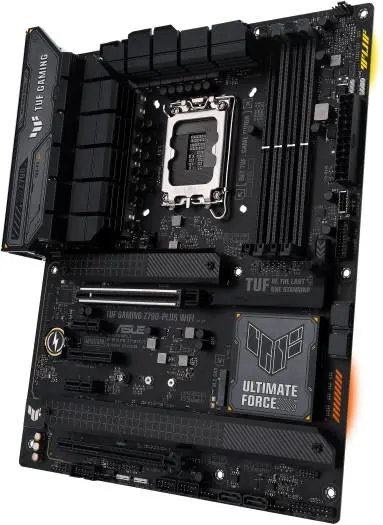

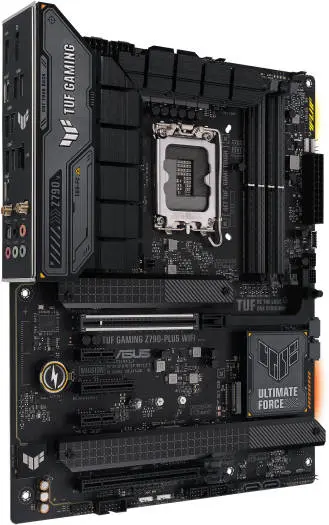

ASUS TUF GAMING Z790-PLUS WIFI — LGA1700 ATX Motherboard
Model: 90MB1D80-M1EAY0
The ASUS TUF GAMING Z790-PLUS WIFI is engineered for gamers, creators, and PC builders who demand stability, performance, and long-term durability from their Intel platform. Built on the Intel Z790 chipset, this robust motherboard supports 12th, 13th, and 14th Gen Intel® Core™ processors, delivering exceptional speed, efficiency, and powerful multitasking capabilities.
With support for DDR5 memory up to 192GB, PCIe 5.0 x16, and four high-speed M.2 slots, the board ensures lightning-fast performance for gaming, rendering, and data-intensive workloads. Its enhanced power delivery system, military-grade TUF components, and advanced cooling solutions guarantee maximum reliability under heavy loads.
The TUF GAMING Z790-PLUS WIFI also includes next-gen connectivity: Wi-Fi 6E, Intel 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, and comprehensive rear/front USB options—all designed to meet modern gaming and productivity demands.
With ASUS-exclusive features like TUF Protection, Q-Design tools, M.2 Q-Latch, PCIe Q-Release, and full Aura Sync RGB support, building and customizing your PC becomes effortless.
Strong, stable, and packed with high-end features—this motherboard is the ideal foundation for a future-ready Intel gaming PC.
Â
Specifications
| Category | Specification |
| Model | TUF GAMING Z790-PLUS WIFI |
| CPU Support | Intel LGA1700 — 12th/13th/14th Gen Core™, Pentium® Gold, Celeron® |
| Chipset | Intel Z790 |
| Memory | 4 × DIMM DDR5, up to 192GB, up to 7200+ MT/s (OC), Dual Channel, XMP Support |
| Graphics Outputs | 1 × DisplayPort 1.4 (4K@60Hz), 1 × HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 1 × PCIe 5.0 x16 1 × PCIe 4.0 x16 (x4 mode) 1 × PCIe 4.0 x4 2 × PCIe 3.0 x1 |
| Storage | 4 × M.2 (PCIe 4.0 x4 / SATA depending on slot) 4 × SATA 6Gb/s Intel RST RAID 0/1/5/10 |
| Ethernet | Intel 2.5Gb Ethernet + TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2×2), Bluetooth 5.3 |
| Rear USB Ports (8 total) | 1 × USB 3.2 Gen 2x2 Type-C 3 × USB 3.2 Gen 2 4 × USB 3.2 Gen 1 |
| Front USB Ports (7 total) | 1 × USB 3.2 Gen 2 (Type-C) 2 × USB 3.2 Gen 1 4 × USB 2.0 |
| Audio | Realtek S1220A 7.1 Surround, Premium Caps, Optical S/PDIF Out |
| Back Panel I/O | DP, HDMI, Wi-Fi 6E Module, Intel 2.5Gb LAN, 5 × Audio Jacks, Optical S/PDIF, USB Ports |
| Internal I/O | CPU/Chassis fan headers, AIO pump, ARGB Gen2, RGB header, USB headers, 4 × M.2, 4 × SATA |
| Special Features | TUF Protection, DIGI+ VRM, PCIe Q-Release, M.2 Q-Latch, Q-LED, SafeSlot, Aura Sync |
| Software | Armoury Crate, Fan Xpert 4, DTS Audio, AI Suite 3, MyASUS, Norton, WinRAR |
| BIOS | 192Mb UEFI AMI BIOS |
| Accessories | Wi-Fi antenna, 2 × SATA cables, M.2 rubber packages, screws, user guide |
| OS Support | Windows 11, Windows 10 (64-bit) |
| Form Factor | ATX (30.5 × 24.4 cm) |
