Product Description
X870 MAX GAMING WIFI7 W
Â
Specifications
| Model | X870 MAX GAMING WIFI7 W |
| CPU | AMD Socket AM5 for Ryzen 9000/8000/7000 Series |
| Chipset | AMD X870 |
| Memory | 4 x DIMM DDR5, up to 256GB, 8000+MT/s (OC), ECC/Non-ECC |
| Graphics | 1 x HDMI, 2 x USB4 (DisplayPort), up to 4K@60Hz |
| Expansion Slots | 1 x PCIe 5.0 x16 (9000/7000), 1 x PCIe 4.0 x16 (8000), 2 x PCIe 4.0 x16 (x1), 1 x PCIe 3.0 x16 (x1) |
| Storage | 3 x M.2 (PCIe 5.0/4.0), 4 x SATA 6Gb/s, bandwidth sharing with USB4/PCIEX16(G3) |
| RAID Support | RAID 0/1/5/10 (9000), 0/1 (8000), 0/1/10 (7000) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & BT | Wi-Fi 7 (2x2, up to 2.9Gbps), Bluetooth 5.4 |
| Rear USB | 2 x USB4, 1 x USB 10Gbps, 3 x USB 5Gbps, 4 x USB 2.0 |
| Front USB | 1 x USB 20Gbps, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround, 24-bit/192kHz playback, Audio shielding |
| Back I/O | USBs, HDMI, Ethernet, Audio jacks, BIOS FlashBack button |
| Internal I/O | Fan headers, Power, 3 x M.2, 4 x SATA, USB, RGB, TPM |
| Special Features | ASUS 5X Protection III, Q-Design, Aura Sync, EZ DIY |
| Software | Armoury Crate, AI Advisor, CPU-Z, Norton/WinRAR trials |
| BIOS | 256 Mb UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3 |
| Manageability | WOL by PME, PXE |

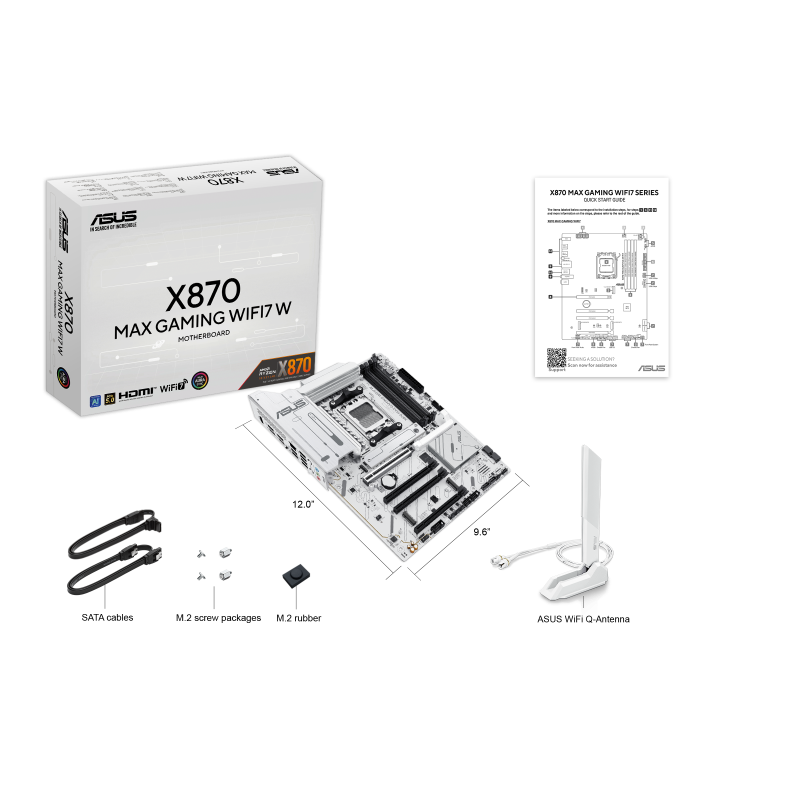

| Accessories | 2 x SATA cables, WiFi Antenna, M.2 rubber & screws, Guide |
| OS | Windows 11 |
| Form Factor | ATX, 30.5 x 24.4 cm |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, White | 90MB1LZ0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
X870 MAX GAMING WIFI7 W
Date first available
22 April, 2025
Shipping Weight
2.15 Kg
Shipping Dimensions
7.00 cm x 36.00 cm x 27.51 cm
Chipset
AMD X870
Socket
AM5
Form Factor
ATX
M.2 Slots
3
Maximum Memory
256 GB
Memory Slots
4
Memory Speed
--
Memory Type
DDR5
Multi-GPU Support
--
PCI Express x16
4
