CH-2537TXWPUS UHD+ HDMI/VGA over HDBaseT Wallplate Switcher offers smart input switching, PoH power, CEC bypass, OSD control, and flexible management for clean, modern AV wall installs. CH-2537TXWPUS

CH-2537TXWPUS

UHD+ HDMI/VGA over HDBaseT Wallplate Switcher

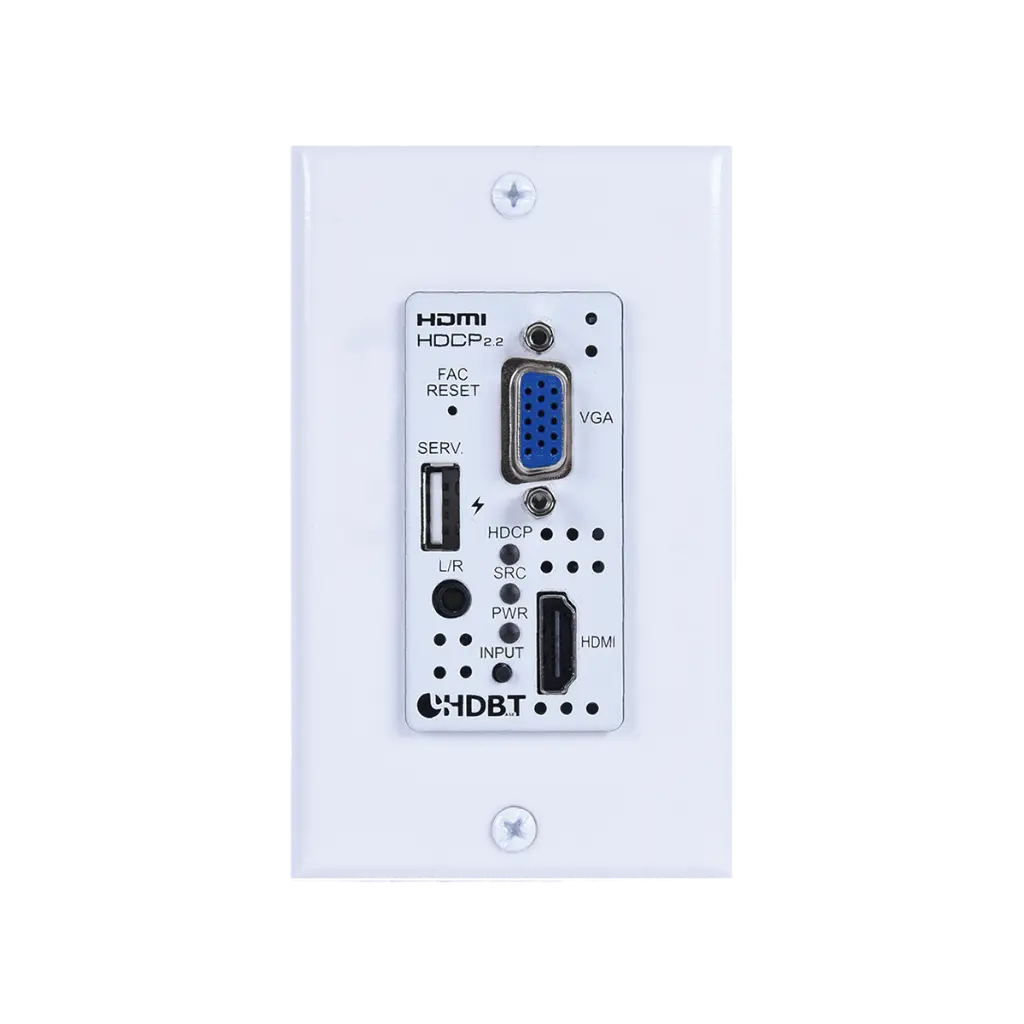

• Wall plate is designed for US one-gang sized enclosures
• Supports CEC bypass and User activated information OSD
• Unit may be powered locally or via 48V PoH from a compatible HDBaseT Receiver (PSE)
• Supports manual input selection or automatic input selection with hot plug detection
• Basic signal event automation (via RS-232 or CEC w/ compatible Receiver
• USB port supports firmware update and powering of 5V/500mA devices
• Controllable via a multi-function front panel button with OSD, or via WebGUI, Telnet, and RS-232 (w/ compatible Receiver only)
