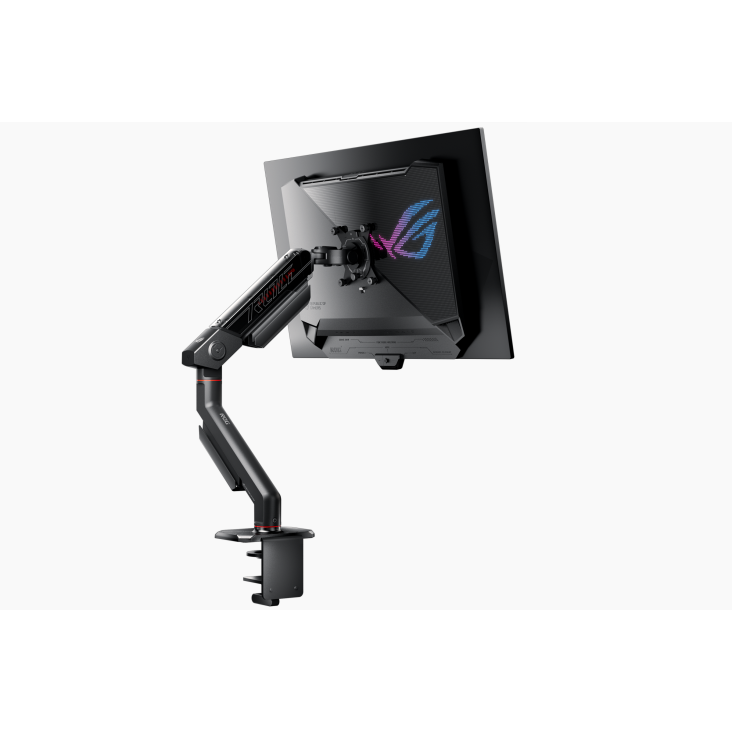

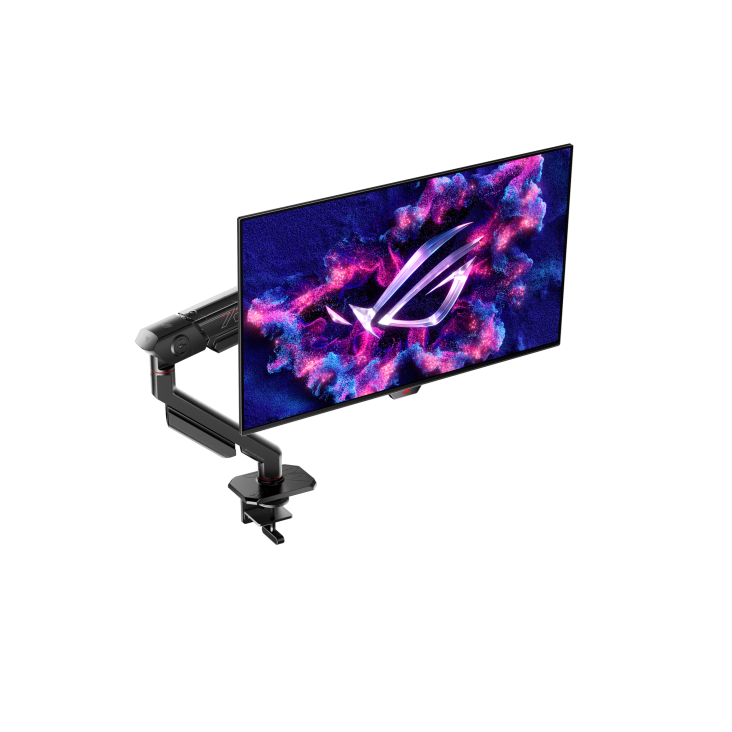

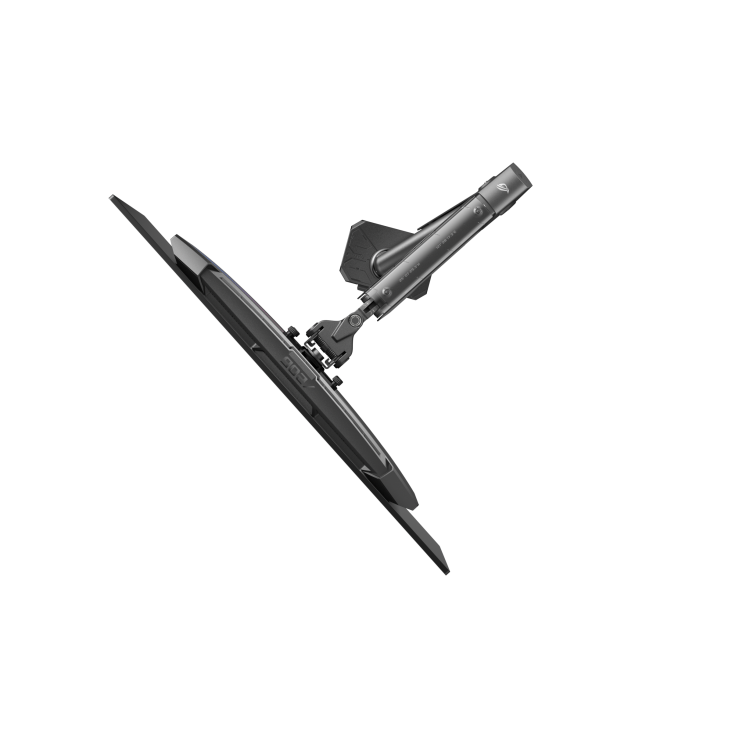

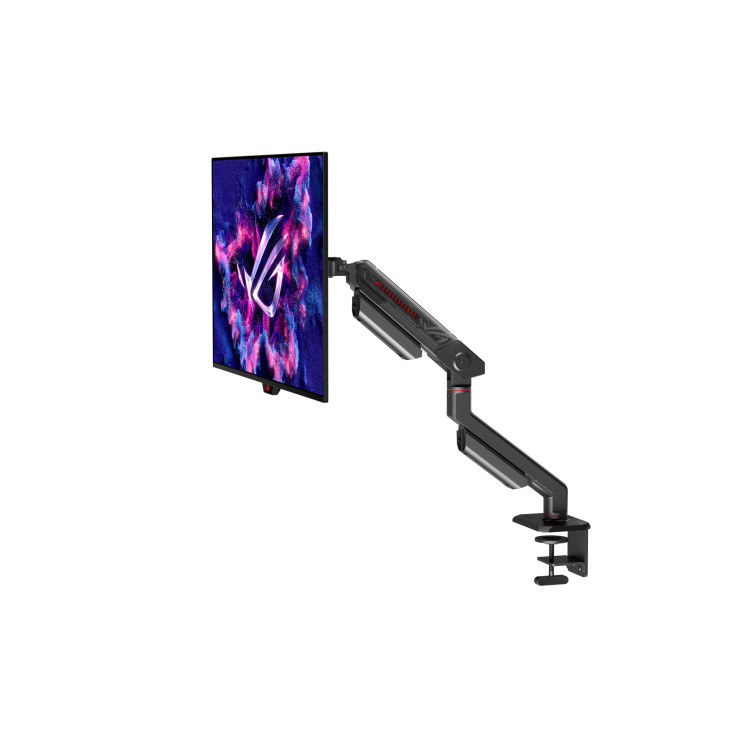

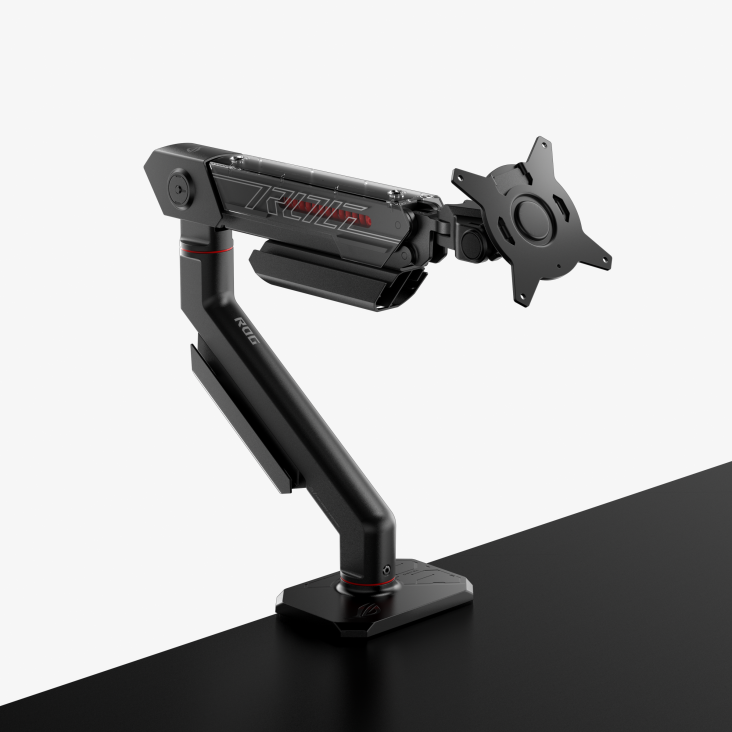

ROG Ergo Monitor Arm AAS01 (90LA00Q0-B01170)

The ROG Ergo Monitor Arm AAS01 is a premium adjustable monitor arm designed to support large gaming and professional displays with smooth movement, durable build quality, and integrated cable management.

• Model Code: 90LA00Q0-B01170
• Supported Monitor Size: Up to 39″
• Weight Capacity: 3.0 – 11.5 kg (flat) • up to 8.5 kg (curved)
• VESA Mount: 100 × 100 mm
• Range of Motion:
  • Lift: ~320 mm
  • Tilt: +80° to −25°
  • Swivel: ±90°
  • Pivot / Rotation: 360°
  • Max Extension: ~637 mm
• Desk Clamp Range: 10 – 80 mm
• Durability: Passed 10,000 motion cycles stress test
• Cable Management: Built-in cable routing for a clean setup
• Dimensions: 208 × 71 × 46 mm (arm body)
• Package Includes: Monitor arm • Clamp • Mounting accessories • User manual
• Color: Black with ROG design
