Product Description

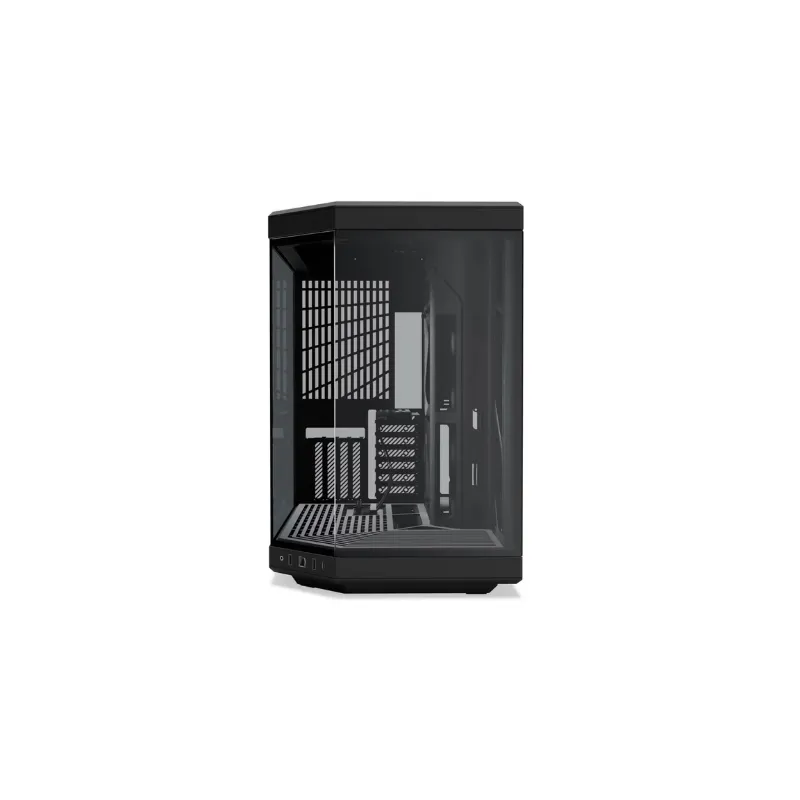

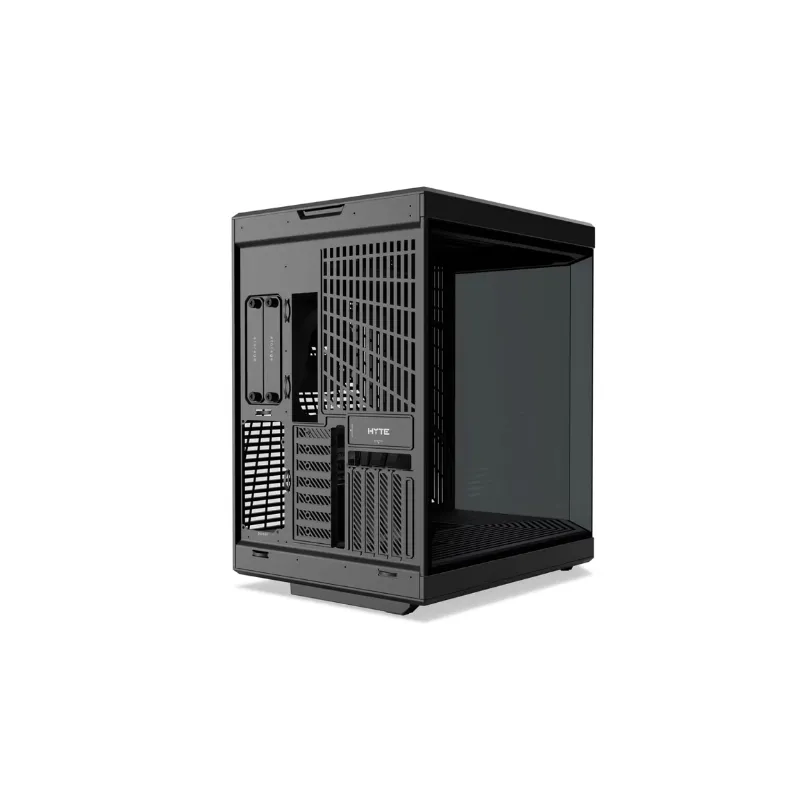

HYTE Y70 Mid-Tower ATX Case – Black (CS-HYTE-Y70-B)
HYTE Y70 Mid-Tower Case in Black is engineered for high-performance gaming builds that demand both visual impact and optimized airflow. Featuring a dual-chamber layout and panoramic tempered glass design, it cleanly separates cable management from core components, delivering a sleek showcase aesthetic while maintaining efficient thermal performance.
Designed to support everything from compact ITX systems to full E-ATX builds, the Y70 offers exceptional internal space for large GPUs, tall air coolers, and powerful power supplies. Its flexible cooling configuration supports extensive fan and radiator options, making it ideal for advanced air or liquid-cooled systems.
The modern front I/O panel provides fast connectivity with USB-C 3.2 Gen 2, dual USB-A 3.2 Gen 1 ports, and a 3.5mm combo audio jack, ensuring seamless integration with gaming peripherals and high-speed storage devices.
With its spacious interior, premium build quality, and airflow-focused design, the Y70 is built to showcase and cool high-end gaming hardware effectively.
Specifications
General Information
| Category | Specification |
|---|---|
| Device Type | PC Case |
| Brand | HYTE |
| Model | CS-HYTE-Y70-B |
| Case Size | Mid Tower |
| Case Type | Dual Chamber Mid-Tower ATX |
Motherboard Support
| Supported Sizes |
|---|
| ITX, mATX, ATX, EATX |
Front I/O Panel
| Port | Details |
|---|---|
| USB-C | 1× USB-C 3.2 Gen 2 |
| USB-A | 2× USB-A 3.2 Gen 1 |
| Audio | 1× 3.5mm Audio/Mic Combo |
Expansion Slots
| Details |
|---|
| 7 Half-Height + 4 Full-Height |
Fan Support
| Location | Configuration |
|---|---|
| Top | 3×120mm or 2×140mm |
| Rear | 1×120mm or 1×140mm |
| Side | 3×120mm or 2×140mm |
| Bottom | 3×120mm or 2×140mm |
Radiator Support
| Location | Compatibility |
|---|---|
| Top | 120–360mm / 140–280mm (up to 68mm thick) |
| Rear | 120mm or 140mm |
| Side | 120–360mm / 140–280mm (up to 125mm thick) |
Component Clearance
| Component | Maximum Support |
|---|---|
| CPU Cooler Height | 180mm |
| PSU Length | 235mm |
