Product Description

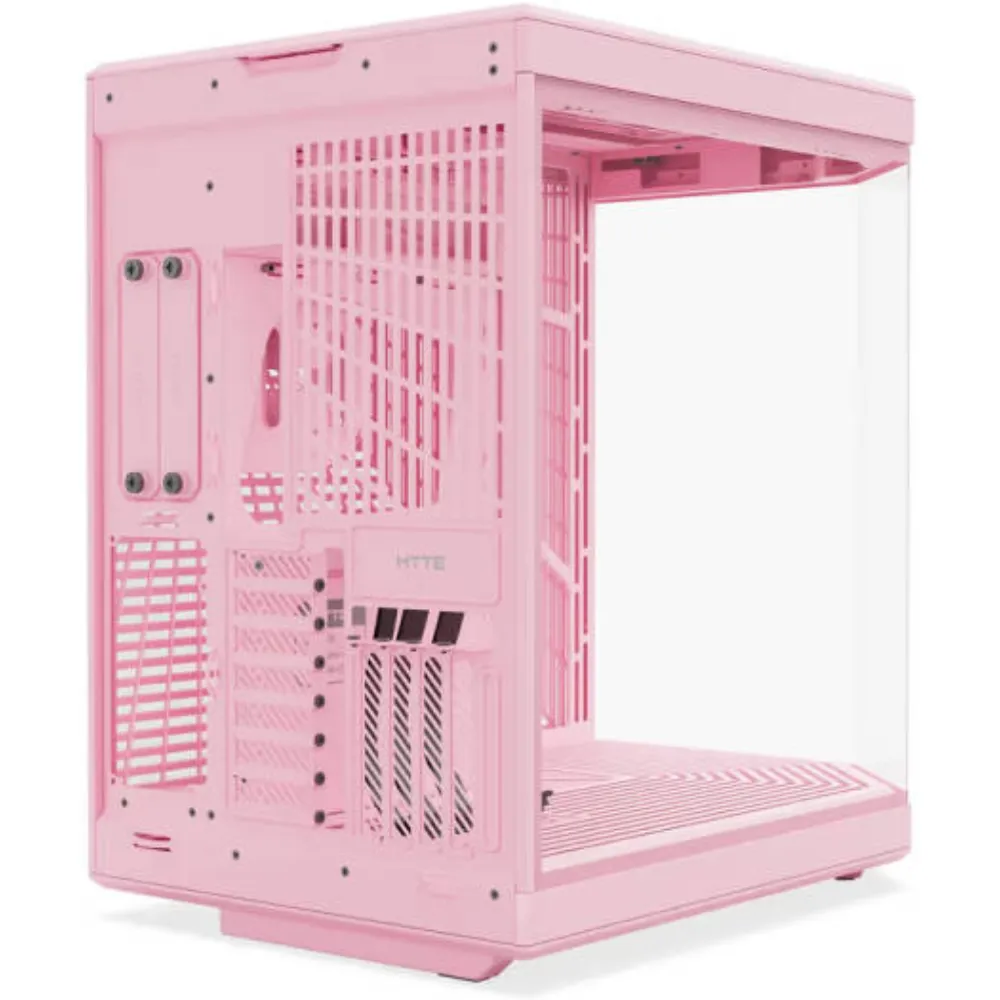

HYTE Y70 ATX Dual-Chamber Mid-Tower Case – CS-HYTE-Y70-SM
HYTE Y70 is a premium dual-chamber mid-tower ATX case engineered for high-performance gaming systems and clean showcase builds. Its spacious internal layout supports large components, advanced cooling configurations, and efficient cable management for modern enthusiast setups.
Designed to accommodate a wide range of motherboard sizes—from Mini-ITX to E-ATX—the Y70 provides exceptional flexibility for custom builds. The dual-chamber architecture separates thermal zones, improving airflow and maintaining a clean, professional internal presentation.
The front I/O panel includes modern high-speed connectivity options, ensuring seamless integration with today’s gaming peripherals and storage devices.
Built for serious cooling performance, the Y70 supports multiple fan and radiator configurations, making it ideal for both air-cooled and liquid-cooled systems.
Specifications
General
| Category | Specification |
|---|---|
| Device Type | PC Case |
| Brand | HYTE |
| Model | CS-HYTE-Y70-SM |
| Case Type | ATX Dual-Chamber Mid-Tower |
Motherboard Support
| Supported Sizes | Mini-ITX, mATX, ATX, E-ATX |
Front I/O Panel
| USB-C | 1× USB-C 3.2 Gen 2 |
| USB-A | 2× USB-A 3.2 Gen 1 |
| Audio | 1× 3.5mm Audio/Mic Combo Jack |
Expansion
| Expansion Slots | 7 Half + 4 Full Height |
Fan Support
| Location | Support |
|---|---|
| Top | 3×120mm or 2×140mm |
| Rear | 1×120mm or 1×140mm |
| Side | 3×120mm or 2×140mm |
| Bottom | 3×120mm or 2×140mm (32mm thick) |
Radiator Support
| Location | Support |
|---|---|
| Top | 120–360mm / 140–280mm (up to 68mm thick) |
| Rear | 120mm or 140mm |
| Side | 120–360mm / 140–280mm (up to 125mm thick) |
Component Clearance
| Component | Maximum Support |
|---|---|
| CPU Cooler Height | 180mm |
| PSU Length | 235mm |
| GPU Length | 422mm |
