Product Description

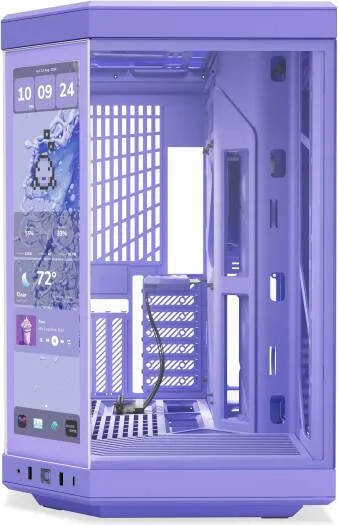

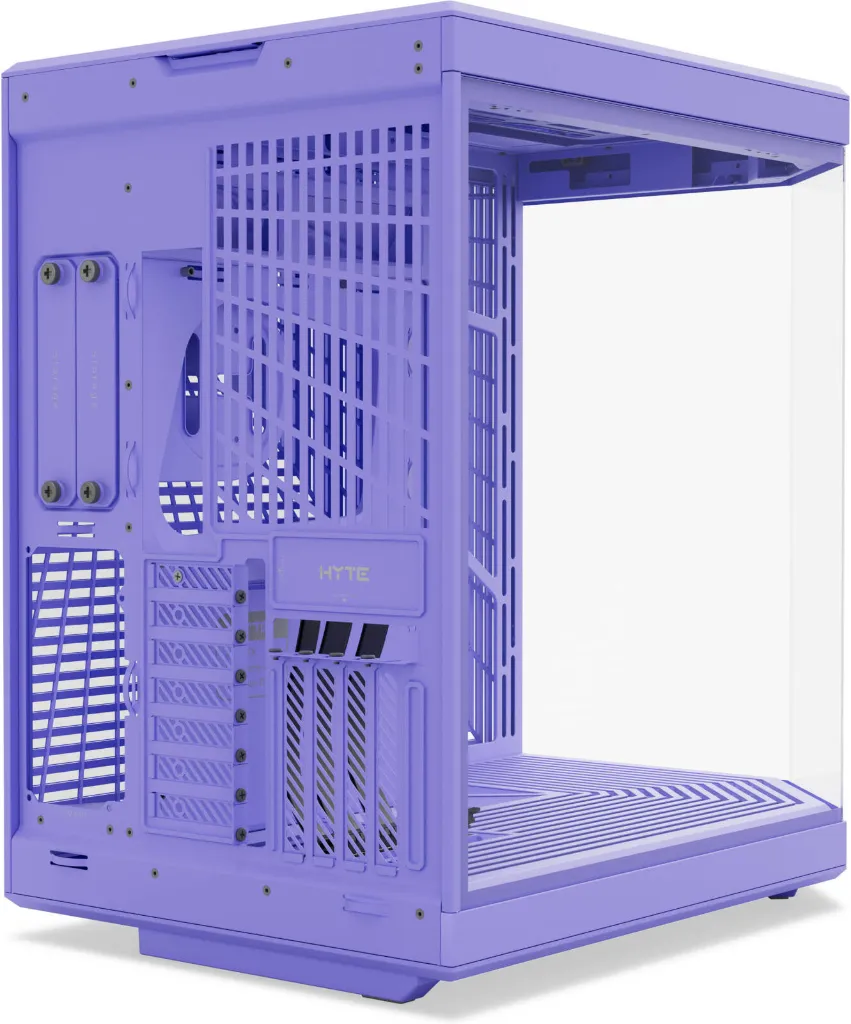

HYTE Y70 Touch Infinite – Dual Chamber Mid-Tower ATX Case (Taro Milk)
Model: CS-HYTE-Y70-TM
HYTE Y70 Touch Infinite in Taro Milk blends high-end performance engineering with a bold, pastel-inspired aesthetic. Built for enthusiasts who want their system to perform and stand out, this dual-chamber mid-tower case combines panoramic glass design, advanced airflow support, and an integrated vertical touchscreen display powered by Nexus.
Integrated 14.5” Nexus Touch Display
The signature feature is a stunning 14.5-inch 2.5K vertical touchscreen (688 × 2560 resolution, 183 PPI) built directly into the front corner panel. With 5-point multi-touch, 350 nits brightness, and Nexus Touch integration, you can monitor system stats, customize visuals, control lighting, and personalize your build in real time.
Dual-Chamber Layout for Clean Builds
The separated chamber design isolates cables and power supply components from the main showcase area, delivering optimized airflow and a clutter-free interior. The included PCIe 4.0 x16 riser cable supports vertical GPU mounting, showcasing graphics cards up to 422mm length and 105mm thickness.
Advanced Cooling Flexibility
Engineered for high-performance gaming systems, the Y70 Touch Infinite supports:
Up to 10 × 120mm fans
Up to 360mm radiators (top and side)
Rear radiator support up to 140mm
Bottom cooling support for enhanced airflow
This ensures stable thermals even under demanding gaming or workstation workloads.
Modern Connectivity
Front I/O includes:
1× USB-C 3.2 Gen 2
2× USB-A 3.2 Gen 1
1× 3.5mm Audio/Mic Combo Jack
Specifications
| Category | Specification |
|---|---|
| Case Type | Dual Chamber Mid-Tower ATX |
| Exterior Dimensions | 470 × 320 × 470 mm |
| Volume | 70.7 Liters |
| Motherboard Support | ITX, mATX, ATX, EATX |
| Expansion Slots | 7 Half + 4 Full Height |
| Riser Cable | PCIe 4.0 x16 Included |
| Dust Filters | Top, Side, Bottom |
| Top Fans | 3×120mm or 2×140mm |
| Top Radiator | 120–360mm / 140–280mm (68mm thick) |
| Side Fans | 3×120mm or 2×140mm |
| Side Radiator | 120–360mm / 140–280mm (125mm thick) |
| Rear Fan | 1×120/140mm |
| Rear Radiator | 120mm or 140mm |
| Bottom Fans | 3×120mm or 2×140mm (32mm thick) |
| Max GPU Length | 422 mm |
| Max GPU Thickness | 105 mm |
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 235 mm |
| Storage Support | 2× 3.5" HDD or 4× 2.5" SSD |
Integrated Display Specifications
| Feature | Detail |
|---|---|
| Screen Size | 14.5” Vertical |
| Resolution | 688 × 2560 (2.5K) |
| Refresh Rate | 60Hz |
| Touch Support | 5-Point Multi-Touch |
| Brightness | 350 nits |
| Contrast Ratio | 1500:1 |
| Response Time | 20ms |
| Powered By | Nexus Touch |
