Internal Reference:
CS-HYTE-Y70-WW
Product Description

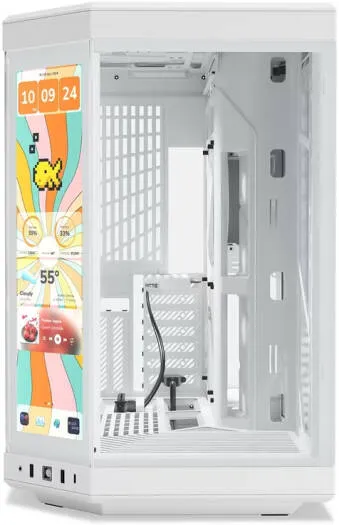

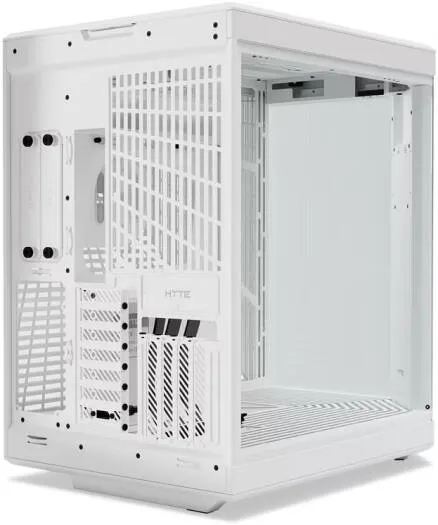

HYTE Y70 Touch Infinite – Dual Chamber Mid-Tower ATX Gaming Case (Snow White)
HYTE Y70 Touch Infinite is a premium dual-chamber mid-tower ATX case engineered for high-end gaming builds and showcase systems. Designed with a panoramic aesthetic and advanced cooling flexibility, it delivers both performance and visual impact.
The standout feature is the integrated 14.5” 2.5K vertical touchscreen, powered by Nexus Touch, enabling real-time system monitoring, custom widgets, wallpapers, and interactive controls directly from your case. With a 688 × 2560 resolution, 183 PPI, and 5-point multi-touch support, it transforms your build into a dynamic command center.
Its dual-chamber layout isolates thermals and cable management, ensuring clean airflow and a professional interior presentation. The included PCIe 4.0 x16 riser cable allows vertical GPU mounting, supporting graphics cards up to 422mm in length and 105mm in thickness.
Built for serious cooling performance, the Y70 Touch Infinite supports:
Up to 360mm radiators (top & side)
Up to 10 × 120mm fans
Large air coolers up to 180mm height
Power supplies up to 235mm length
Front I/O includes USB-C 3.2 Gen 2, dual USB-A 3.2 Gen 1, and a combo audio jack, delivering modern connectivity for gaming peripherals and fast data transfer.
Finished in Snow White, this chassis is ideal for premium custom builds, RGB showcase rigs, and enthusiast setups.
Specifications
| Category | Specification |
|---|---|
| Case Type | Dual Chamber Mid-Tower ATX |
| Dimensions | 470 × 320 × 470 mm |
| Volume | 70.7 Liters |
| Motherboard Support | ITX, mATX, ATX, EATX |
| Expansion Slots | 7 Half + 4 Full Height |
| Riser Cable | PCIe 4.0 x16 Included |
| Front I/O | 1× USB-C 3.2 Gen 2, 2× USB-A 3.2 Gen 1, 3.5mm Combo Jack |
| Max GPU Length | 422 mm |
| Max GPU Thickness | 105 mm |
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 235 mm |
| Storage Support | 2× 3.5” HDD or 4× 2.5” SSD |
| Top Fans | 3×120mm / 2×140mm |
| Top Radiator | 120–360mm / 140–280mm |
| Side Fans | 3×120mm / 2×140mm |
| Side Radiator | 120–360mm / 140–280mm |
| Bottom Fans | 3×120mm / 2×140mm |
| Rear Fan | 1×120/140mm |
| Dust Filters | Top, Side, Bottom |
| Integrated Display | 14.5” 2.5K (688 × 2560), 60Hz |
| Touch Support | 5-Point Multi-Touch |
| Brightness | 350 nits |
| Contrast Ratio | 1500:1 |
| Response Time | 20ms |
| Powered By | Nexus Touch |
