Product Description

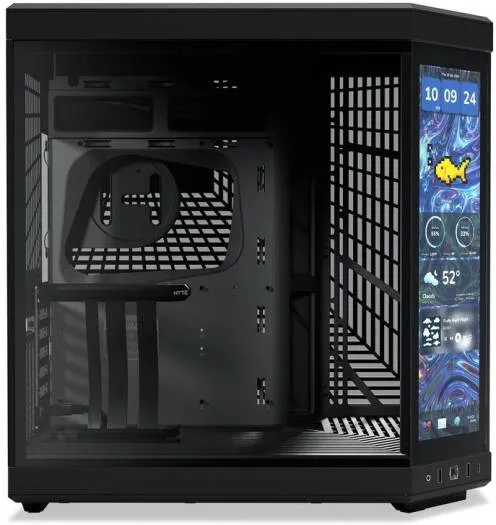

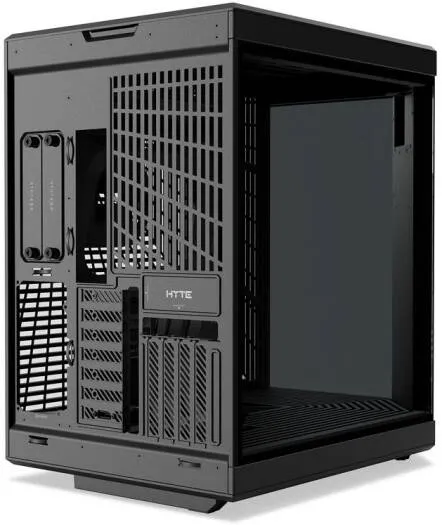

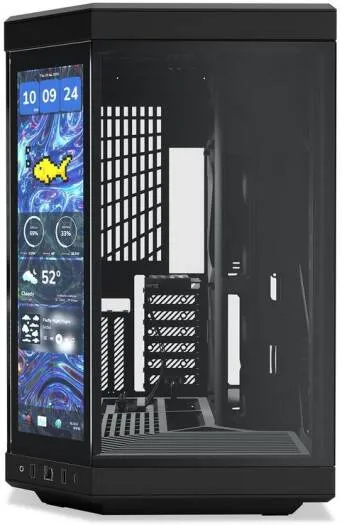

Description for HYTE Y70 Touch Infinite Dual Chamber Mid-Tower ATX Computer Case, 14.5" 688 x 2560 (2.5K) Touch Display, Up to 10 Fans & 360mm Radiator Support, Black CS-HYTE-Y70TTI-BB
Modern Aesthetic Case
Enhanced In Every Dimension
Y70 is an upgraded dual chamber ATX mid tower modern aesthetic case that delivers next gen gaming experiences with massive 4 slot vertical graphics and unlocks maximum performance via ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.
Note: Please be aware that all HYTE.com pre-orders will be shipped and fulfilled through the USA. For international customers, we recommend checking with your local distributors first, as they may have faster fulfillment due to shipping times.
Specifications
| Type | Dual Chamber Mid-Tower ATX Case |
| Exterior Dimensions | 470 x 320 x 470 mm |
| Volume (L) | 70.7 L |
| Motherboard Sizes | ITX, mATX, ATX, EATX |
| Expansion Slots | 7 half + 4 full height |
| Riser Cable Included | Yes, PCIE 4.0 x 16 |
| I/O | 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack |
| Dust Filters | Top, Side, Bottom |
| Top Fans | 3x 120 mm / 2x 140 mm |
| Top Radiator | 120-360 mm, 140-280 mm @ 68 mm thick |
| Rear Fans | 1x 120 mm / 140 mm |
| Rear Radiator | 1x 120 mm / 140 mm |
| Side Fans | 3x 120 mm / 2x 140 mm |
| Side Radiator | 120-360 mm, 140-280 mm @ 125 mm thick |
| Bottom Fans | 3x 120 mm / 2x 140 mm @ 32 mm thick |
| Max Video Card Length | 422 mm |
| Max Video Card Thickness | 105 mm |
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 235 mm |
| Storage | 2x 3.5" HDD or 4x 2.5" SSD |
| Y70 Touch Infinite Display Specifications | 14.5" 688 x 2560 (2.5K), 60Hz, 5-Point Multi-Touch Capacitive Touchscreen, 183 PPI, 350 nits, 1500:1 Contrast Ratio, 89° Viewing Angle, 20ms Pixel Response Time |
| Y70 Touch Display Specifications | 14.1" 1100 x 3840 (4K), 60Hz, 10-Point Multi-Touch Capacitive Touchscreen, 283 PPI, 300 nits, 1200:1 Contrast Ratio, 85° Viewing Angle, 30ms Pixel Response Time |
