Internal Reference:
CS-HYTE-Y70TTI-WW
Product Description

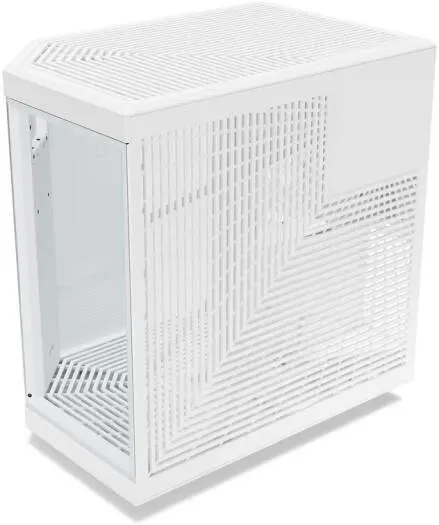

HYTE Y70 Touch Infinite – Dual Chamber Mid-Tower ATX Gaming Case (Snow White)
Model: CS-HYTE-Y70TTI-WW
HYTE Y70 Touch Infinite in Snow White is a premium dual-chamber mid-tower ATX case designed for high-end gaming builds that demand performance, airflow, and visual impact. Combining panoramic glass styling with an integrated touchscreen display powered by Nexus, it transforms your PC into a fully interactive showcase system.
Integrated 14.5” Nexus Touch Display
At the core of the Y70 Touch Infinite is a vertically mounted 14.5-inch 2.5K touchscreen (688 Ă— 2560 resolution, 183 PPI). With 5-point multi-touch support, 350 nits brightness, and Nexus Touch software integration, users can monitor system performance, customize wallpapers, manage lighting profiles, and display real-time widgets directly from the case panel.
Dual-Chamber Architecture
The separated chamber design improves airflow and simplifies cable management, keeping the main compartment clean and visually striking. An included PCIe 4.0 x16 riser cable enables vertical GPU mounting, supporting graphics cards up to:
422mm length
105mm thickness
This layout ensures both performance cooling and an unobstructed view of your components.
Advanced Cooling Support
Designed for high-performance systems, the case supports:
Up to 10 Ă— 120mm fans
Up to 360mm radiators (top and side)
Rear radiator support up to 140mm
Bottom fan support for enhanced airflow
This flexibility makes it ideal for custom liquid cooling or powerful air-cooled builds.
Modern Connectivity
Front I/O panel includes:
1Ă— USB-C 3.2 Gen 2
2Ă— USB-A 3.2 Gen 1
1Ă— 3.5mm Audio/Mic Combo Jack
Specifications
| Category | Specification |
|---|---|
| Case Type | Dual Chamber Mid-Tower ATX |
| Exterior Dimensions | 470 Ă— 320 Ă— 470 mm |
| Volume | 70.7 Liters |
| Motherboard Support | ITX, mATX, ATX, EATX |
| Expansion Slots | 7 Half + 4 Full Height |
| Riser Cable | PCIe 4.0 x16 Included |
| Dust Filters | Top, Side, Bottom |
| Top Fans | 3Ă—120mm or 2Ă—140mm |
| Top Radiator | 120–360mm / 140–280mm (68mm thick) |
| Side Fans | 3Ă—120mm or 2Ă—140mm |
| Side Radiator | 120–360mm / 140–280mm (125mm thick) |
| Rear Fan | 1Ă—120/140mm |
| Rear Radiator | 120mm or 140mm |
| Bottom Fans | 3Ă—120mm or 2Ă—140mm (32mm thick) |
| Max GPU Length | 422 mm |
| Max GPU Thickness | 105 mm |
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 235 mm |
| Storage Support | 2Ă— 3.5" HDD or 4Ă— 2.5" SSD |
Integrated Display Specifications
| Feature | Detail |
|---|---|
| Screen Size | 14.5” Vertical |
| Resolution | 688 Ă— 2560 (2.5K) |
| Refresh Rate | 60Hz |
| Touch Support | 5-Point Multi-Touch |
| Brightness | 350 nits |
| Contrast Ratio | 1500:1 |
| Viewing Angle | 89° |
| Response Time | 20ms |
| Software Platform | Nexus Touch |
Ideal For
Premium gaming systems
RGB showcase builds
Custom liquid-cooled PCs
Streamer and content creator setups
