Product Description

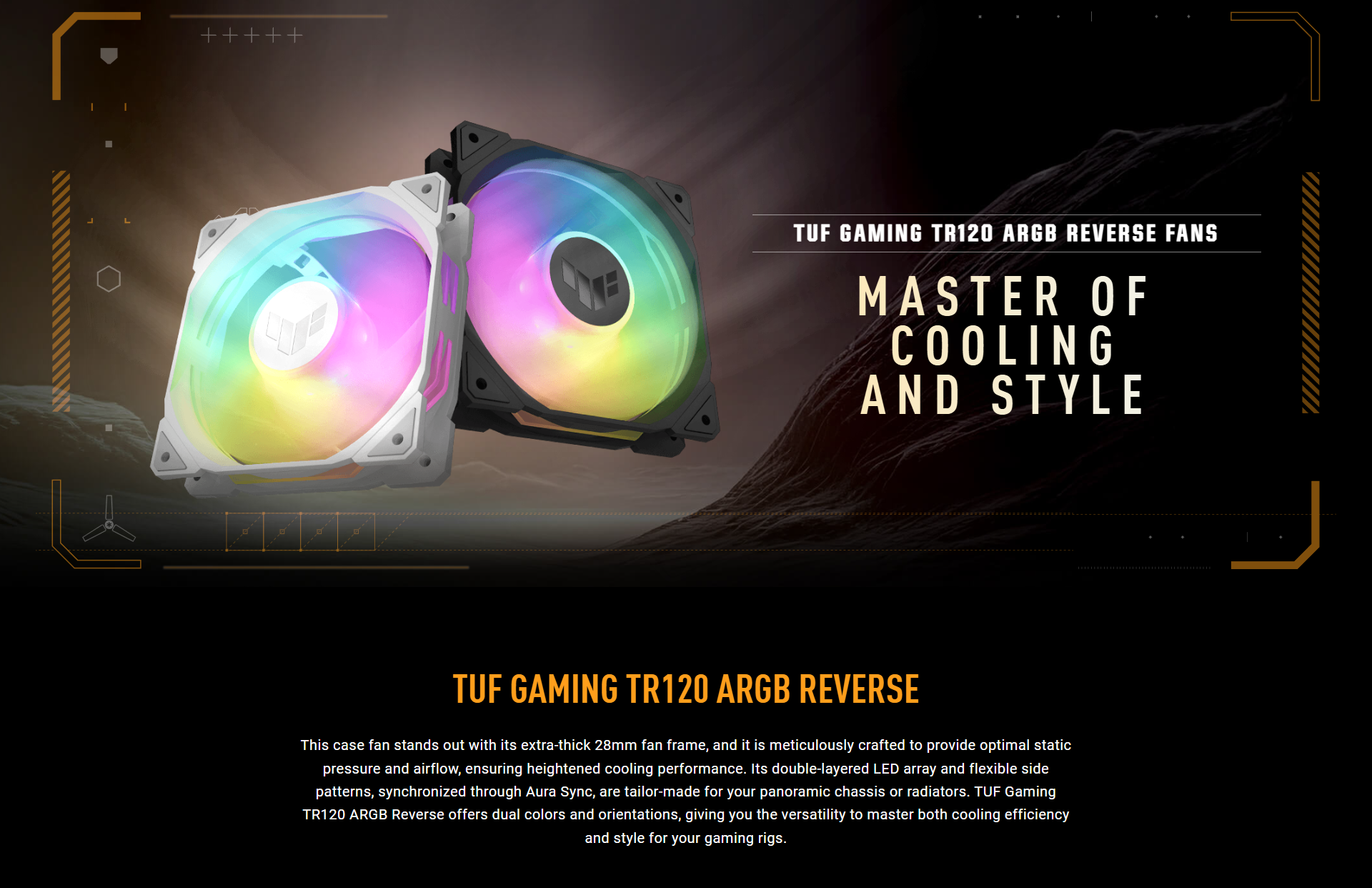

TUF Gaming TR120 ARGB Reverse: Flawless Aesthetics, Uncompromised Intake.
If you are building a dual-chamber or panoramic glass PC, standard fans can ruin the look when used as intakes, forcing you to look at their rear structural struts. The ASUS TUF Gaming TR120 ARGB Reverse Fan solves this problem entirely. By reversing the pitch of the fan blades, it draws fresh air into your case while keeping the brilliant double-layer LED Matrix facing you.
Even with the reversed geometry, this fan is a performance monster. Thanks to its extra-thick 28mm frame, it achieves an impressive 76.3 CFM of airflow and 2.75 mm H2O of static pressure, ensuring your GPU and motherboard receive a massive column of fresh air. Fully compatible with ASUS Aura Sync, the 16 individually addressable RGB LEDs provide smooth, customizable lighting that elevates your entire build.
Key Features:
Reverse Blade Design: Perfect for side and bottom intake slots, allowing you to showcase the fan's lighting without exposing the rear frame brackets.

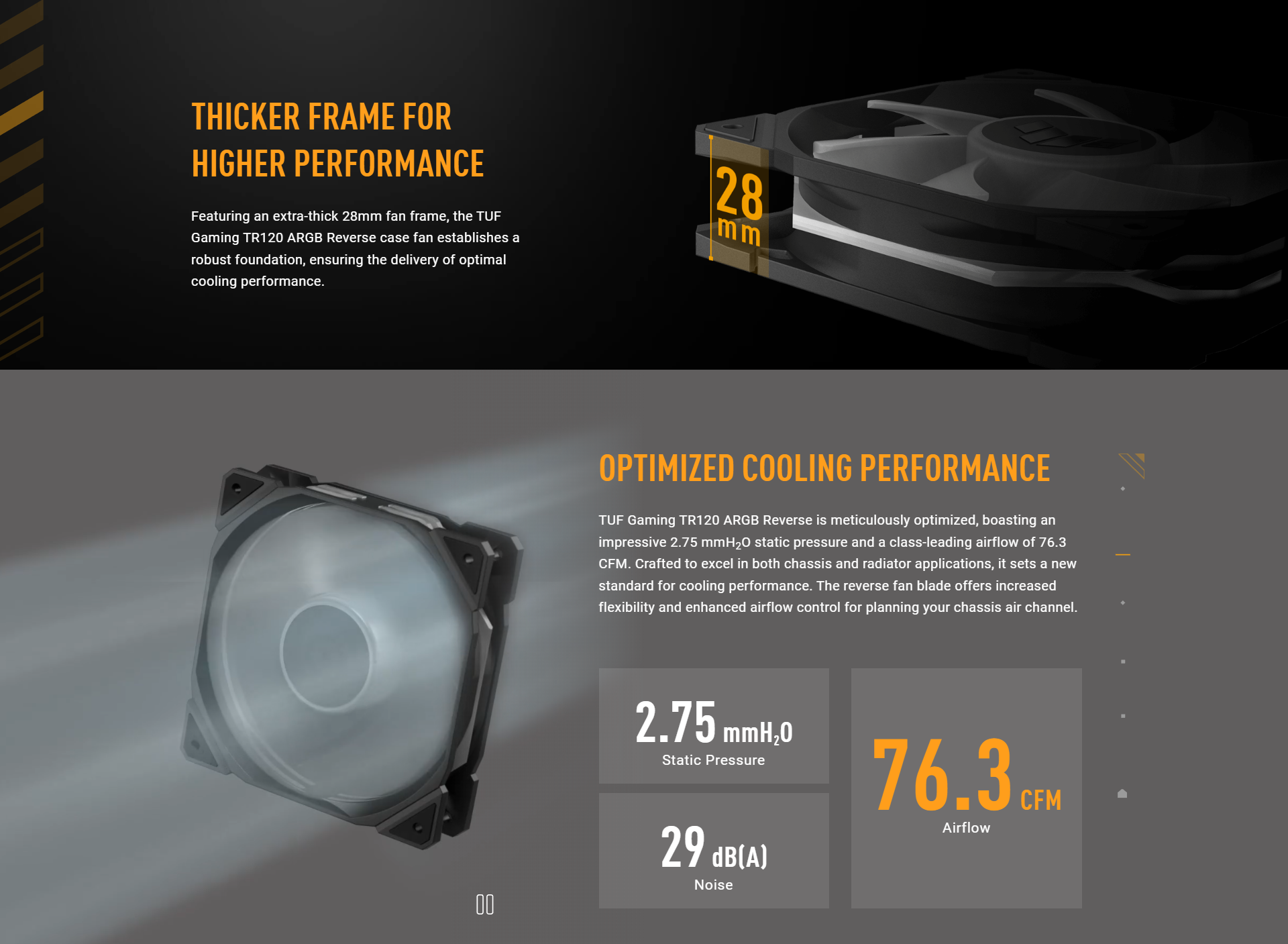

Extra-Thick 28mm Profile: The deeper frame pushes significantly more air than standard 25mm fans, compensating for the typical performance loss seen in reverse-blade designs.
High-Pressure Intake: Delivers an outstanding 76.3 CFM of airflow and 2.75 mm H2O of static pressure, easily pulling air through dust filters and restrictive mesh.
Double-Layer LED Matrix: 16 individually addressable RGB LEDs provide vibrant, gapless lighting across the blades and the flexible side pattern.
Ultra-Wide PWM Control: Spin up to 2000 RPM for heavy gaming sessions or scale down for near-silent 29 dB(A) operation during casual use.
Aura Sync Compatibility: Synchronize colors and effects with your motherboard, RAM, and peripherals for a unified lighting theme.
Hydraulic Bearing: Ensures a long lifespan with smooth, reliable, and low-noise operation.
Technical Specifications
| Category | Specification Details |
| Model | TUF Gaming TR120 ARGB Reverse Fan (Triple Pack) |
| Blade Orientation | Reverse (Intake) |
| Dimensions | 120 x 120 x 28 mm |
| Fan Bearing | Hydraulic Bearing |
| Fan Speed | Up to 2000 RPM (+/- 10%) via PWM |
| Max Airflow | 76.3 CFM |
| Max Static Pressure | 2.75 mm H2O |
| Noise Level | 29 dB(A) |
| Lighting | Addressable RGB (Aura Sync Compatible) |
| Included Accessories | 12 x mounting screws, 1 x 1-to-3 PWM splitter cable |
