Product Description

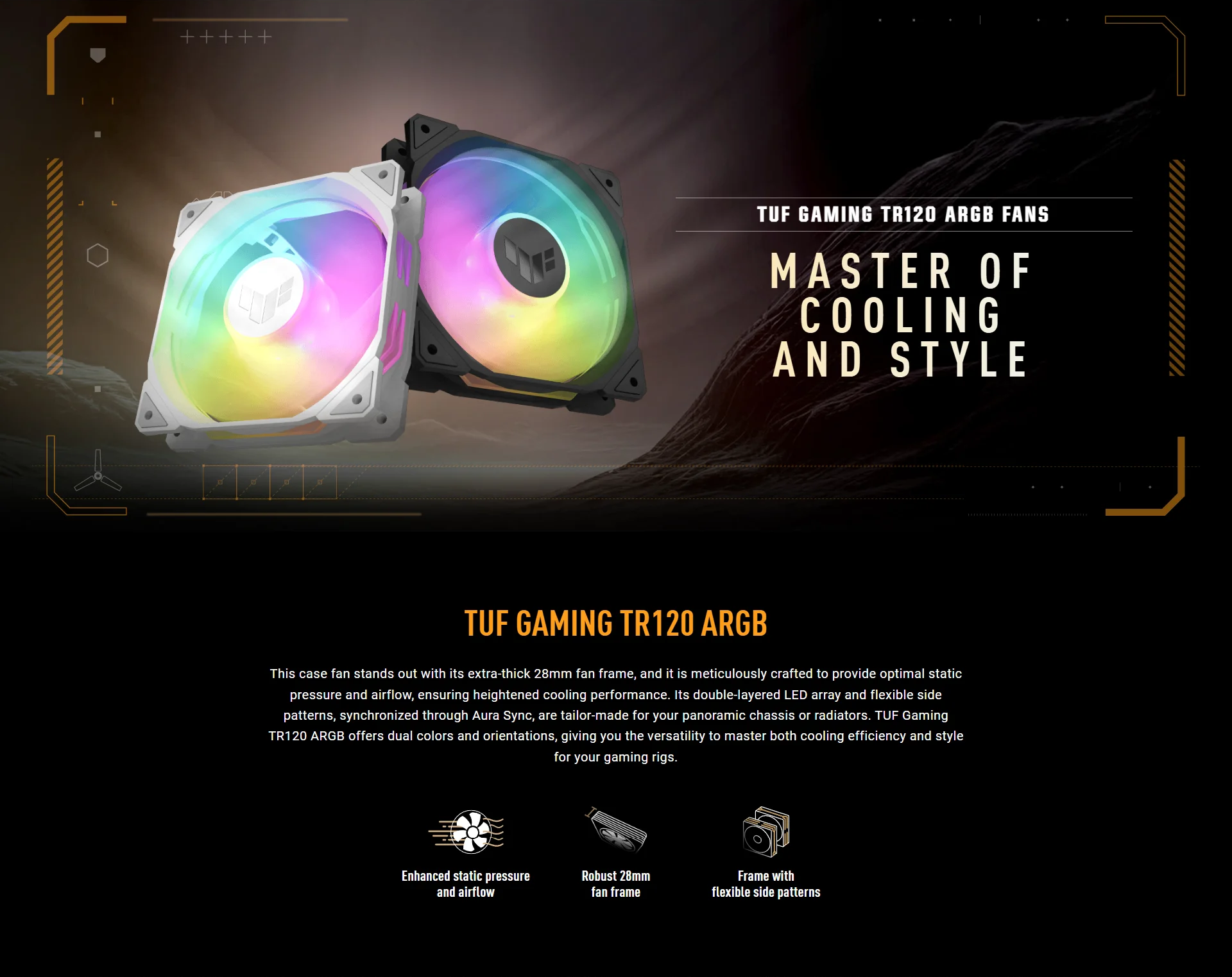

TUF Gaming TR120 ARGB: Thicker Frame, Fiercer Cooling.
Take your system's thermals to the next level with the ASUS TUF Gaming TR120 ARGB. Moving beyond the standard 25mm thickness, this fan features an extra-thick 28mm frame that establishes a robust foundation for superior cooling performance. This beefed-up design allows it to deliver a class-leading 3.3 mm H2O of static pressure and 77.4 CFM of airflow, making it exceptionally effective at forcing cool air through restrictive mesh panels, thick radiators, or dense CPU heatsinks.
Performance doesn't come at the cost of style. The TR120 boasts an exclusive double-layer LED Matrix design packed with 16 individual Addressable RGB LEDs. This creates stunning, customized lighting effects that radiate brilliantly through the fan blades and the flexible side pattern on the frame. Fully compatible with ASUS Aura Sync, it integrates seamlessly with your entire ecosystem. Plus, with options for both black and white colors, as well as standard and reverse airflow orientations, you have total freedom to match your build's exact aesthetic without compromising on airflow direction.
Key Features:

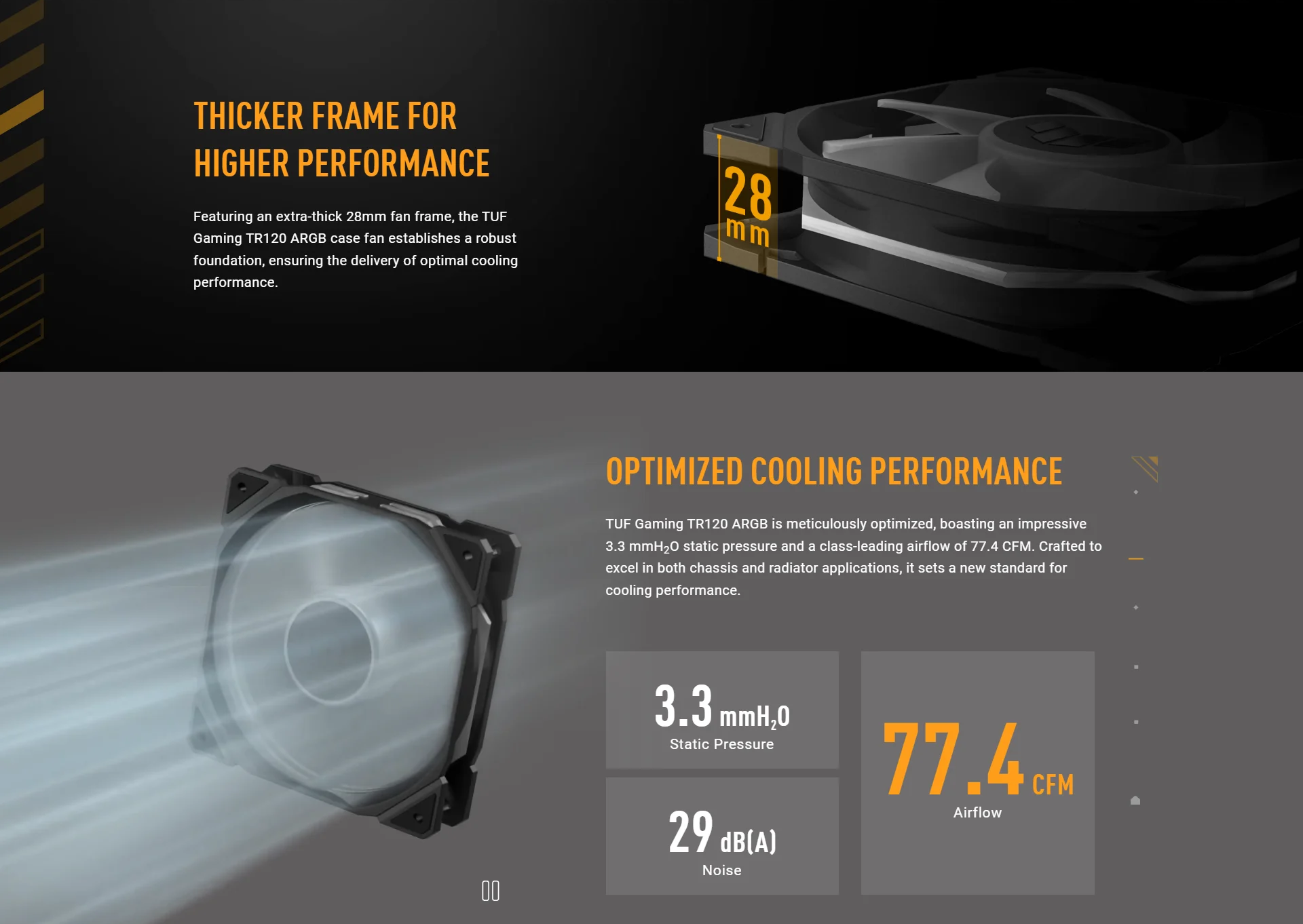

Extra-Thick 28mm Profile: A deeper frame design pushes more air and generates higher pressure than standard 25mm fans.
Class-Leading Performance: Delivers a massive 77.4 CFM of airflow and 3.3 mm H2O of static pressure to keep high-end components frosty.

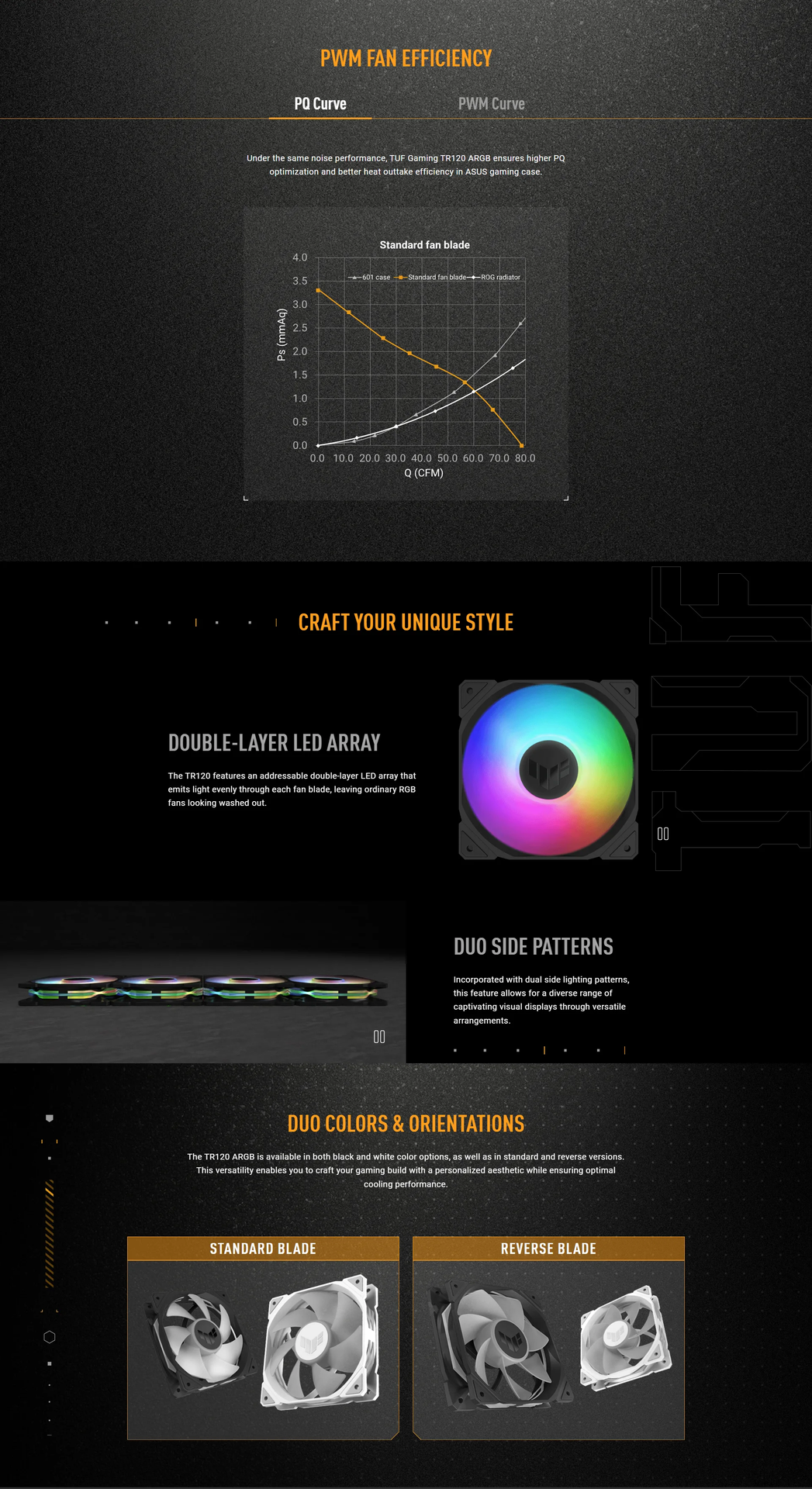

Double-Layer LED Matrix: 16 individually addressable RGB LEDs provide smooth, vibrant, and highly customizable lighting.
Ultra-Wide PWM Control: Dynamically scales up to 2000 RPM for heavy workloads or spins down for whisper-quiet operation during light tasks.
Aura Sync Compatibility: Synchronize your lighting effects perfectly with other ROG, TUF, and Aura Sync-compatible hardware.
Flexible Build Options: Available in both Black and White, with Standard or Reverse blade orientations to suit traditional and panoramic dual-chamber cases.
Hydraulic Bearing: Ensures smooth, reliable, and low-noise operation (up to a maximum of 29 dB(A)) over a long lifespan.
Technical Specifications
| Category | Specification Details |
| Model | TUF Gaming TR120 ARGB Fan (Triple Pack) |
| Dimensions | 120 x 120 x 28 mm |
| Fan Bearing | Hydraulic Bearing |
| Fan Speed | Up to 2000 RPM (+/- 10%) via PWM |
| Max Airflow | 77.4 CFM |
| Max Static Pressure | 3.3 mm H2O |
| Noise Level | 29 dB(A) |
| Lighting | Addressable RGB (Aura Sync Compatible) |
| Included Accessories | 12 x mounting screws, 1 x 1-to-3 PWM splitter cable |
