Product Description

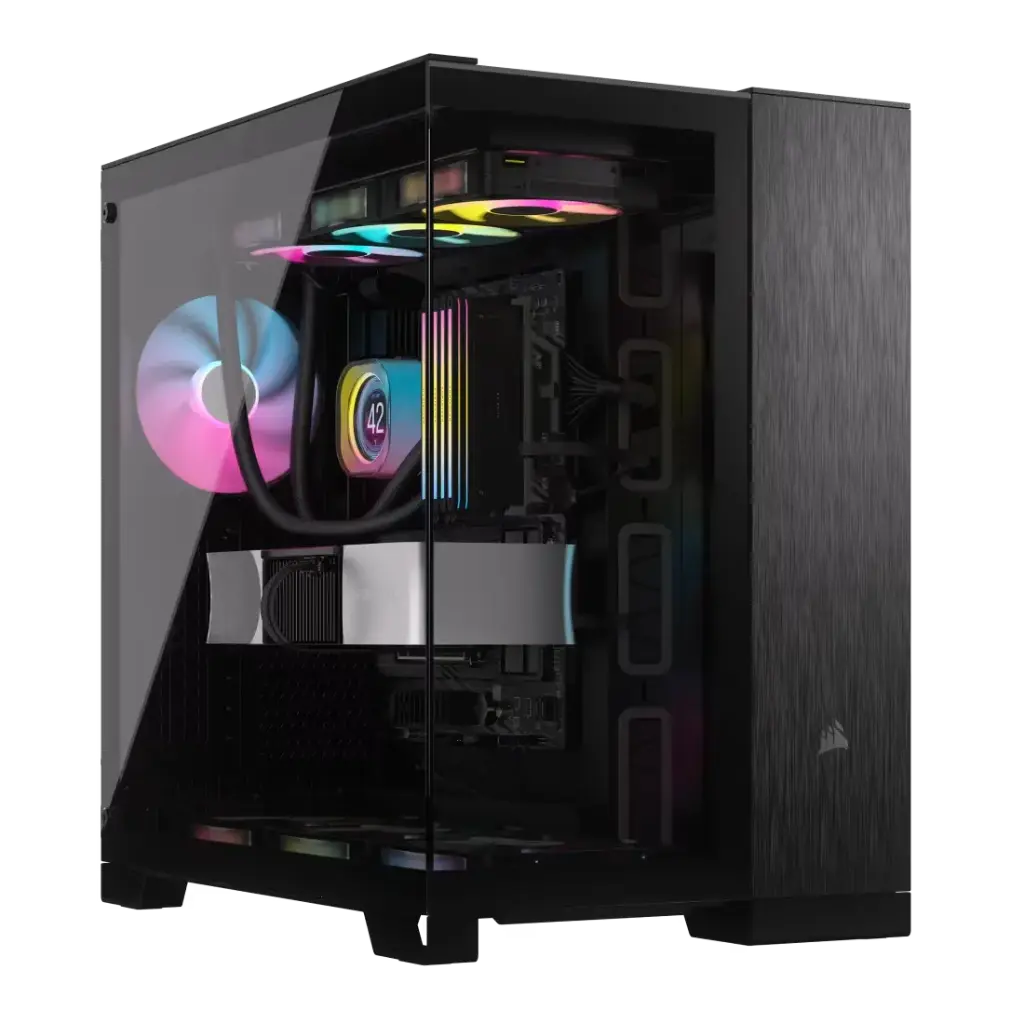

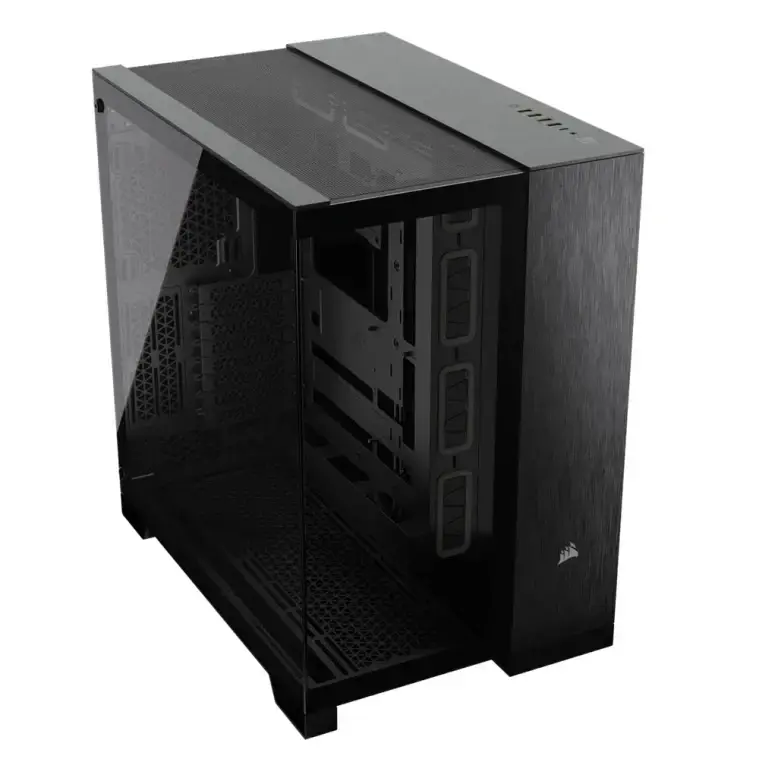

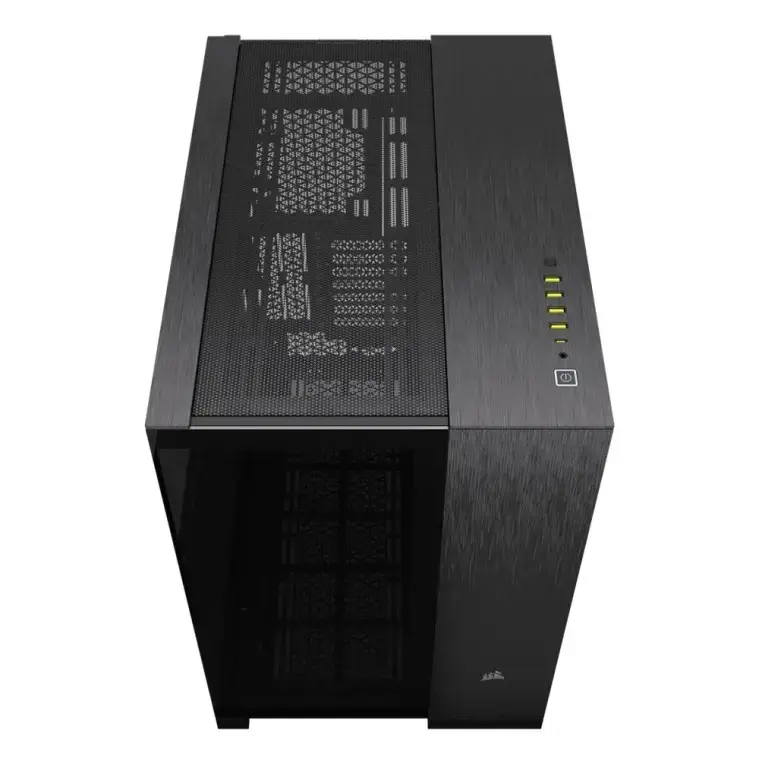

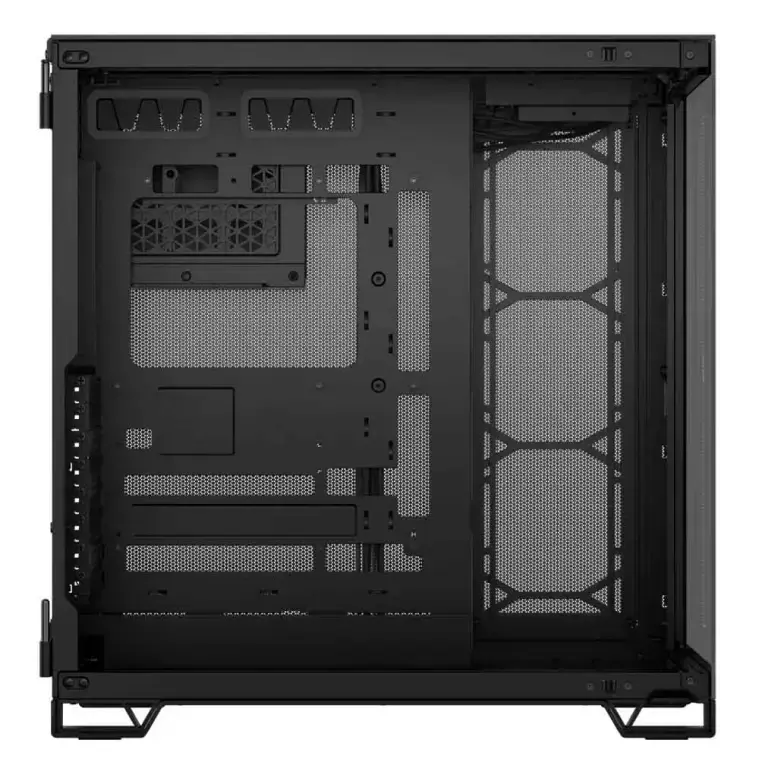

CORSAIR 6500X Dual-Chamber Mid-Tower PC Case – Black
Panoramic Glass. Reverse Connector Design. Precision Airflow.
The CORSAIR 6500X redefines premium PC craftsmanship with its elegant dual-chamber layout, panoramic tempered-glass panels, and modern reverse-connection motherboard support for the cleanest builds ever.
Built from brushed aluminum, steel, and tempered glass, this mid-tower masterpiece showcases every component in crystal clarity while keeping cables and power supplies hidden in a dedicated rear chamber.
With support for up to 10 fans and multiple 360 mm radiators, the 6500X delivers elite cooling flexibility for custom water loops or high-end air setups. Every detail—from its 109 mm of cable-routing space to its tool-less panels and dust filtration system—is designed for professional-grade assembly and airflow optimization.
The front I/O panel includes USB-C 3.2 Gen 2, four USB-A 3.2 Gen 1, and an audio combo port, making connectivity effortless. Perfect for enthusiasts who demand unmatched thermal control, refined aesthetics, and next-generation motherboard compatibility.
Key Features
Panoramic Tempered-Glass Panels – Showcase your components with wraparound visibility.
Dual-Chamber Architecture – Separates the PSU and cabling for a clean, optimized build.
Reverse-Connector Motherboard Support – Hide cables completely for a professional finish.
Extreme Cooling Flexibility – Supports up to 10 fans and multiple 360 mm radiators.
Premium Materials – Brushed aluminum, steel, and tempered glass construction.
Full-Size Component Support – Fits GPUs up to 400 mm, CPU coolers up to 190 mm, PSUs up to 225 mm.
Modern Front I/O – USB-C 3.2 Gen 2, 4 × USB-A 3.2 Gen 1, and audio in/out.
Superior Cable Management – 109 mm routing space and optional RapidRoute system.
Vertical GPU Mount Ready – Supports optional vertical mounting kit.
Specifications
| Attribute | Specification |
| Brand | CORSAIR |
| Model | 6500X (CC-9011283-WW) |
| Case Type | Mid-Tower Dual-Chamber |
| Material | Brushed Aluminum, Steel, Tempered Glass, Plastic |
| Color | Black |
| Dimensions (H × L × W) | 496 mm × 481 mm × 328 mm |
| Weight | 14.9 kg |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX (305 × 277 mm) |
| Expansion Slots | 8 Horizontal + 3 Vertical |
| GPU Maximum Length | 400 mm |
| CPU Cooler Maximum Height | 190 mm |
| PSU Maximum Length | 225 mm |
| PSU Support | ATX |
| Radiator Compatibility | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm |
| Radiator Support (Top) | 360 / 280 / 240 mm |
| Radiator Support (Bottom) | 360 / 280 / 240 mm |
| Radiator Support (Side) | 360 / 240 mm |
| Radiator Support (Rear) | 140 / 120 mm |
| Radiator Support (Front) | None (Glass Panel) |
| Fan Support (Top) | 3 × 120 mm / 3 × 140 mm |
| Fan Support (Bottom) | 3 × 120 mm / 3 × 140 mm |
| Fan Support (Side) | 3 × 120 mm |
| Fan Support (Rear) | 1 × 120 mm / 1 × 140 mm |
| Cooling Capacity | Up to 10 fans total |
| Compatible Liquid Coolers | H60 / H100i / H115i / H150i (All Series) |
| Drive Bays (3.5") | 2 × 3.5 in |
| Drive Bays (2.5") | 2 × 2.5 in |
| Front I/O Ports | 1 × USB 3.2 Gen 2 Type-C, 4 × USB 3.2 Gen 1 Type-A, 1 × Audio In/Out |
| Front I/O Motherboard Connections | 1 × HD Audio, 2 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 Type-E, 1 × F_PANEL |
| Reverse Connector Motherboard Support | Yes |
| Cable Routing Space | 109 mm |
| RapidRoute Support | Compatible (Sold Separately) |
| Side Panels | Left: Tempered Glass / Right: Mesh |
| Vertical GPU Mount Support | Yes (Kit Sold Separately) |
| Dust Filters | Yes |
| Warranty | 2 Years |
