Product Description

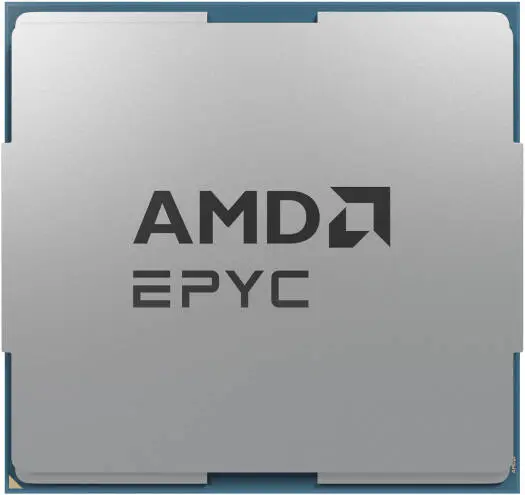

AMD EPYC™ 9754 Processor Kit – 128 Cores & 256 Threads, SP5 Socket, 256 MB L3 Cache, DDR5 Memory, PCIe 5.0 x128 | 100-000001234
Unmatched Density and Efficiency for Modern Data Centers
The AMD EPYC™ 9754 delivers revolutionary multi-core performance with 128 CPU cores and 256 threads, built to handle demanding AI, HPC, virtualization, and cloud workloads with ease.
Engineered for large-scale data environments, it combines Zen 4 architecture with DDR5 memory and PCIe 5.0 connectivity, delivering exceptional throughput and energy efficiency. Whether deployed for virtual machine density, high-capacity databases, or media streaming, the EPYC 9754 sets a new benchmark for performance-per-watt in enterprise computing.
Key Features
128 Cores / 256 Threads for extreme parallel processing
Up to 3.1 GHz Boost Clock | 2.25 GHz Base Clock
256 MB L3 Cache | 12-Channel DDR5 Memory Support
460.8 GB/s per-socket memory bandwidth
PCIe 5.0 x128 lanes for next-generation I/O speed
Configurable TDP range: 320 – 400 W (default 360 W)
Support for AMD Infinity Guard & Infinity Architecture
Enterprise-grade security and virtualization features
Optimized for multi-socket (1P / 2P) server configurations
️ Specifications
| Category | Specification |
| Platform | Server |
| Product Family | AMD EPYC™ |
| Product Line | EPYC™ 9004 Series |
| Architecture | Zen 4 |
| Cores / Threads | 128 / 256 |
| Base Clock | 2.25 GHz |
| All-Core Boost Speed | 3.1 GHz |
| Max Boost Clock | Up to 3.1 GHz |
| L3 Cache | 256 MB |
| Default TDP | 360 W |
| Configurable TDP (cTDP) | 320 – 400 W |
| CPU Socket | SP5 |
| Socket Count | 1P / 2P |
| Launch Date | June 13, 2023 |
| PCI Express® Version | PCIe 5.0 x128 |
| Memory Type | DDR5 |
| Memory Channels | 12 |
| Memory Speed | Up to 4800 MT/s |
| Per-Socket Memory Bandwidth | 460.8 GB/s |
| Integrated Graphics | No |
| Product ID (Tray) | 100-000001234 |
| Supported Technologies | AMD Infinity Guard, AMD Infinity Architecture |
| Workload Affinity | App Dev/Test, Collaboration, Content Management, General Purpose, HPC, Media Streaming, VDI, VM Density, Web Serving |
