Product Description

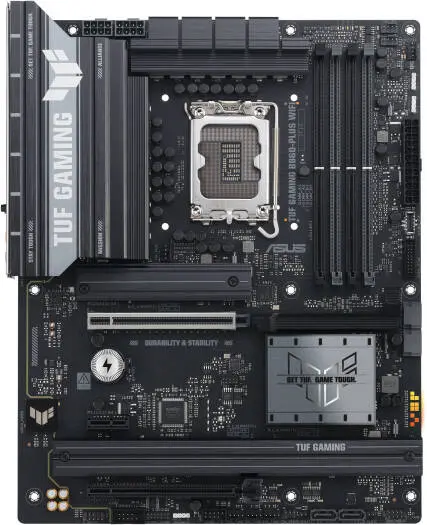

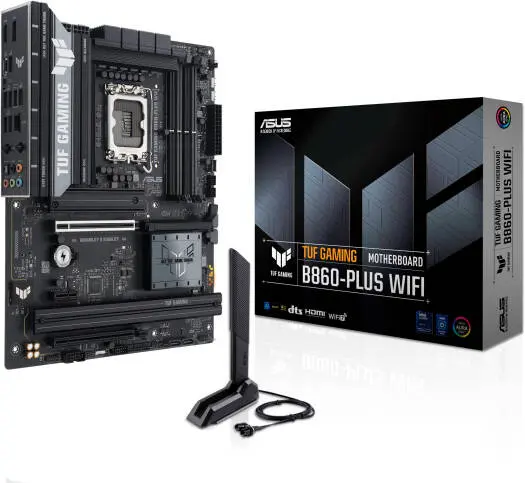

ASUS TUF GAMING B860-PLUS WiFi – Built Tough for Next-Gen Power
Product Description
The ASUS TUF GAMING B860-PLUS WiFi combines the strength of military-grade engineering with the performance of Intel® Core™ Ultra (Series 2) processors, delivering an ultra-reliable foundation for gamers, creators, and AI-ready PCs.
Powered by the Intel® B860 chipset, this ATX motherboard brings together rock-solid stability, advanced power design, and comprehensive cooling to ensure long, uninterrupted gaming sessions.
With support for DDR5 memory up to 256 GB (8666+ MT/s OC), a PCIe 5.0 x16 SafeSlot, and three high-speed M.2 slots, it offers future-proof bandwidth for GPUs, storage, and demanding workloads.
Connectivity stands out with Wi-Fi 7, Bluetooth 5.4, and Realtek 2.5 Gb Ethernet, while TUF Protection safeguards your system with enhanced ESD and surge protection.
Backed by ASUS’s rigorous testing standards and iconic TUF aesthetics, the B860-PLUS WiFi is engineered for reliability, endurance, and all-round gaming excellence.
Â
Â
Specifications
| Category | Details |
| Model | ASUS TUF GAMING B860-PLUS WiFi |
| Form Factor | ATX (30.5 × 24.4 cm) |
| Chipset | Intel® B860 |
| CPU Support | Intel® Core™ Ultra (Series 2) Processors – LGA 1851 Socket, Turbo Boost 2.0 & 3.0 |
| Memory Support | 4 × DDR5 DIMM Slots, Dual Channel, Non-ECC Unbuffered, XMP & ASUS Enhanced Memory Profile III |
| Max Memory Capacity | 256 GB DDR5 (up to 8666+ MT/s OC) |
| Graphics Outputs | 1 × DisplayPort (4K @ 60 Hz) • 1 × HDMI™ (4K @ 60 Hz) • 1 × USB 20 Gbps (Type-C® with DisplayPort Support) |
| Expansion Slots | 1 × PCIe 5.0 x16 (SafeSlot) • 1 × PCIe 4.0 x16 • 1 × PCIe 4.0 x1 |
| Storage Support | 3 × M.2 Slots (1 × PCIe 5.0 x4 + 2 × PCIe 4.0 x4) • 4 × SATA 6 Gb/s Ports • RAID 0/1/5/10 |
| Networking | Realtek 2.5 Gb Ethernet with TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2.4/5/6 GHz) • Bluetooth® 5.4 |
| Rear USB Ports | 1 × USB 20 Gbps (Type-C®) • 2 × USB 10 Gbps (Type-A) • 3 × USB 5 Gbps (Type-A) • 2 × USB 2.0 (Type-A) |
| Front USB Ports | 1 × USB 10 Gbps (Type-C®) • 1 × USB 5 Gbps Header (2 Ports) • 1 × USB 2.0 Header (2 Ports) |
| Audio | Realtek 7.1 Surround HD Audio CODEC, 24-Bit/192 kHz Playback, Audio Shielding, Optical S/PDIF, Premium Capacitors |
| Cooling Features | 4-Pin Fan Headers (CPU, Opt, AIO, 4 Chassis) • Thermal Heatsinks • AI Cooling • Fan Xpert 4 |
| Power Connectors | 1 × 24-Pin Main • 1 × 8-Pin + 1 × 4-Pin CPU Power |
