Product Description
ASUS Pro WS 2200W 80 PLUS Platinum ATX 3.1 power supply with dual-ball fan bearings, gold-plated high-performance copper pins and robust, efficient delivery for workstation and pro builds. 90YE00Z1-B0NA00

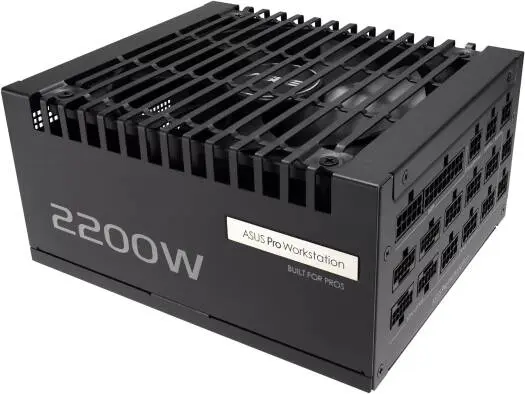

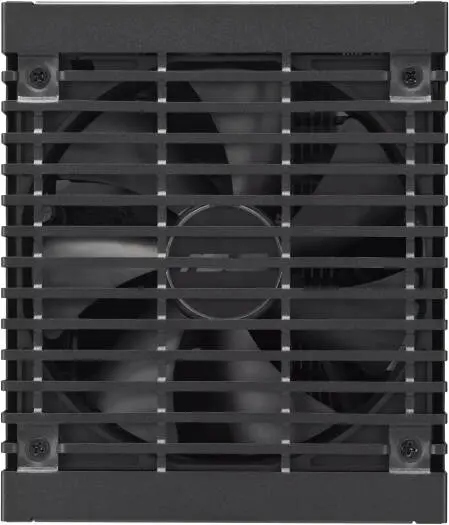

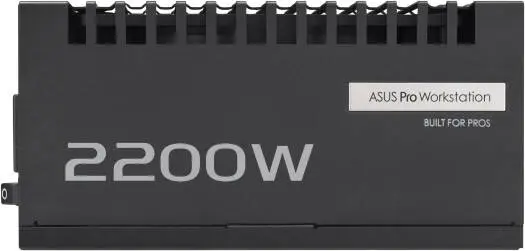

ASUS Pro WS 2200W Platinum
PSU delivers exceptional voltage stability and advanced power delivery for professionals, supporting up to four graphics cards to meet the demanding AI workloads.
Specifications
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 175 Ă— 150 Ă— 86 mm |
| Efficiency | 80Plus Platinum |
| Protection Features | OPP / OVP / UVP / SCP / OCP / OTP |
| Hazardous Materials | RoHS |
| AC Input Range | 200–240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 25A / 25A / 183.3A / 0.8A / 3A |
| Combined Load | 130W / 130W / 2200W / 9.6W / 15W |
| Total Output | 2200W |
| MB 24/20-pin | 1 |
| CPU 4+4-pin | 2 |
| PCIE 5.1 16-pin | 4 |
| PCIE 6+2-pin | 4 |
| SATA | 12 |
| Peripheral | 3 |
| Power Cord | 1 |
| Motherboard Power Cable | 1 (610 mm) |
| CPU Cable | 2 (1000 mm) |
| PCI-E Gen 5.1 16-pin Cable | 4 (750 mm) |
| PCI-E 1-to-1 Cable | 4 (750 mm) |
| SATA 1-to-3 Cable | 4 (400 + 120 + 120 mm) |
| Peripheral 1-to-3 Cable | 1 (400 + 150 + 150 mm) |
| Chassis Screws Package | 1 |
| Cable Ties | 6 |
| User Manual | 1 |
| Weight | 2.13 kg (single PSU) |
| 0dB Technology | No |
