Product Description

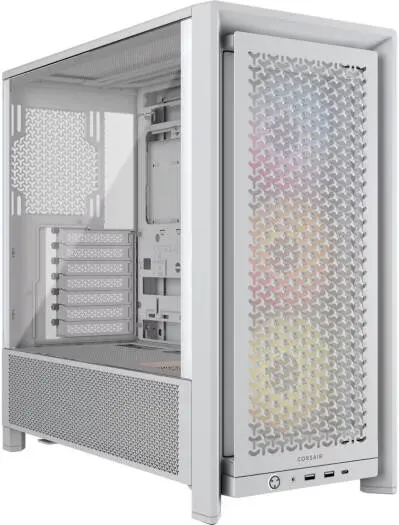

CORSAIR FRAME 4000D RS ARGB Modular Mid-Tower PC Case – White
Modular Freedom. Dynamic ARGB Lighting. Modern Cooling Precision.

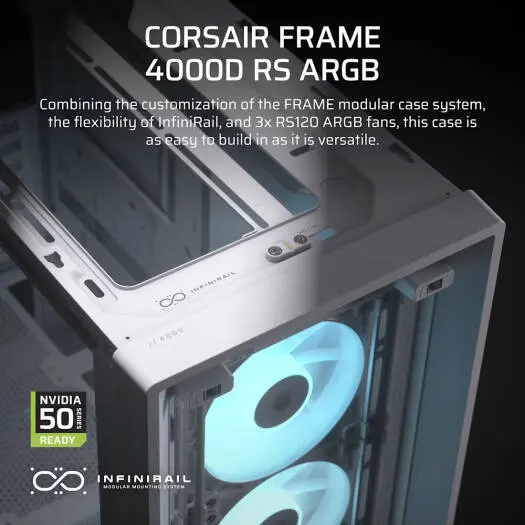

The CORSAIR FRAME 4000D RS ARGB brings innovation and flexibility to PC case design with its InfiniRail™ Fan Mounting System, enabling limitless fan and radiator positioning for custom cooling setups. Its 3D-Y Airflow Steel front panel enhances air intake efficiency, while the fully modular frame allows for easy upgrades, reconfiguration, and maintenance—perfect for builders who want complete control over form and function.

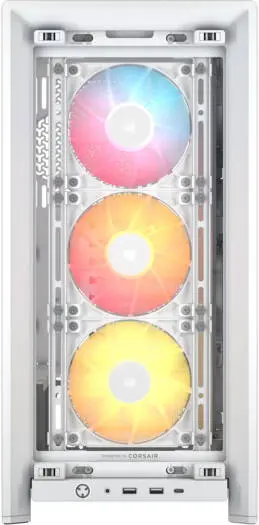

Equipped with three pre-installed RS120 ARGB fans, this mid-tower delivers vibrant, addressable lighting and powerful airflow right out of the box. The dual-layout interior supports up to 10 fans and 360 mm radiators on the top, front, and side panels, offering superior cooling flexibility.
Built for next-generation systems, the 4000D RS ARGB supports reverse connector motherboards, allowing cleaner cable routing and a professional finish. The tempered-glass side panel showcases your components, while the modern front I/O with USB-C 3.2 Gen 2 ensures easy connectivity.
Key Features

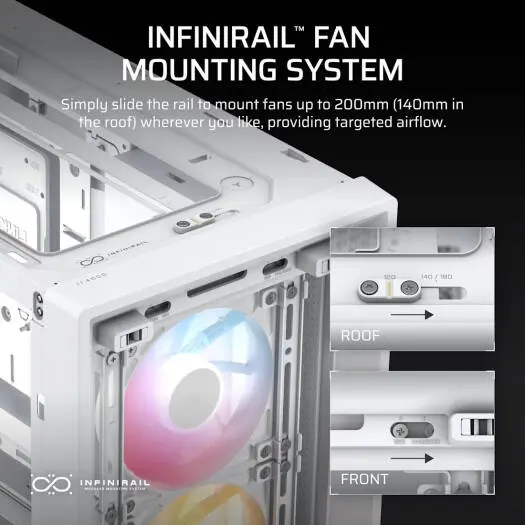

InfiniRail™ Fan Mounting System – Flexible rail-based mounts for easy fan and radiator customization.
Three Pre-Installed RS120 ARGB Fans – Brilliant lighting and optimized airflow out of the box.

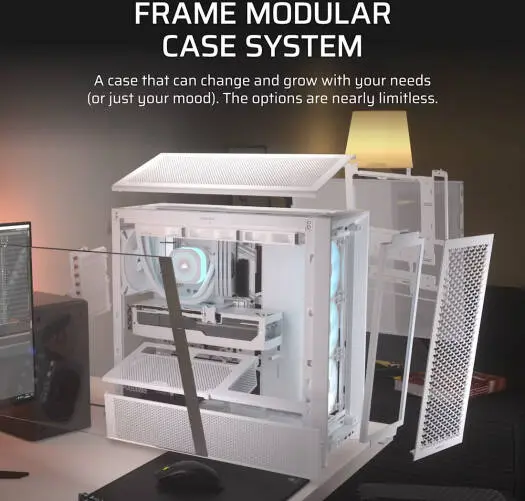

Fully Modular Frame – Customize, upgrade, and rebuild with ease.
3D-Y Airflow Steel Front Panel – Optimized ventilation with structural rigidity.
Reverse Connector Motherboard Support – Cleaner cable management for modern builds.
Tempered Glass Showcase Panel – Highlight your components with style.
Comprehensive Cooling Support – Up to 10 fans and 360 mm radiators on multiple sides.

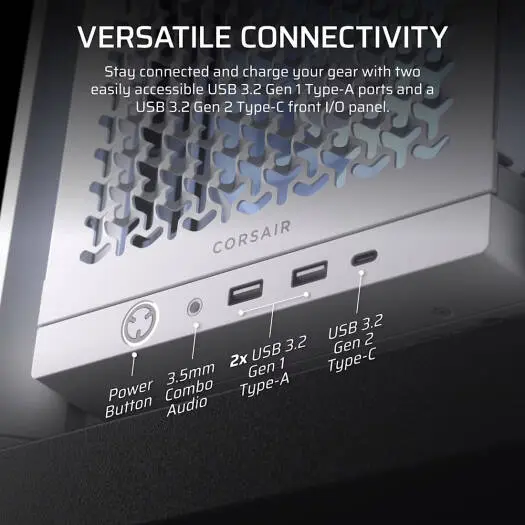

Modern Front I/O – USB-C 3.2 Gen 2, dual USB 3.2 Gen 1, and combo audio port.
Specifications
| Attribute | Specification |
| Brand | CORSAIR |
| Model | FRAME 4000D RS ARGB (CC-9011297-WW) |
| Case Type | Mid-Tower Modular |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Color | White |
| Dimensions (H × L × W) | 486 mm × 490 mm × 239 mm |
| Weight | 10.38 kg |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX (305 × 277 mm) |
| Expansion Slots | 7 Horizontal or 3 Vertical |
| GPU Maximum Length | 430 mm |
| CPU Cooler Maximum Height | 170 mm |
| PSU Maximum Length | 220 mm |
| PSU Support | ATX |
| Cooling Support | Up to 10 × Fans |
| Pre-Installed Fans | 3 × RS120 ARGB Fans |
| Radiator Compatibility | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm |
| Radiator Support (Top) | 360 / 280 / 240 mm |
| Radiator Support (Front) | 360 / 280 / 240 mm |
| Radiator Support (Side) | 360 / 280 / 240 mm |
| Radiator Support (Rear) | 140 / 120 mm |
| Fan Support (Top) | 3 × 120 mm or 2 × 140 mm |
| Fan Support (Front) | 3 × 120 mm, 2 × 140 mm, or 2 × 200 mm |
| Fan Support (Side) | 3 × 120 mm or 2 × 140 mm |
| Fan Support (Bottom) | 2 × 120 mm |
| Fan Support (Rear) | 1 × 120 mm or 1 × 140 mm |
| Compatible Liquid Coolers | CORSAIR H60 / H100 / H115 / H150 / Nautilus / Titan Series |
| Drive Bays (3.5") | 2 × 3.5 in |
| Drive Bays (2.5") | 4 × 2.5 in |
| Front I/O Ports | 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 1 Type-A, 1 × Audio In/Out |
| Reverse Connector Motherboard Support | Yes |
| Cable Routing Space | 37 mm |
| Dust Filtration | Yes |
| Side Panels | Left: Tempered Glass / Right: Steel |
| Vertical GPU Mount Support | Yes (Riser Card Sold Separately) |
| Warranty | 2 Years |
