Product Description

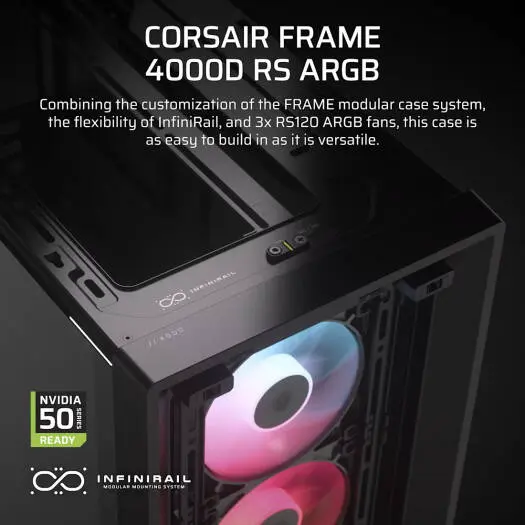

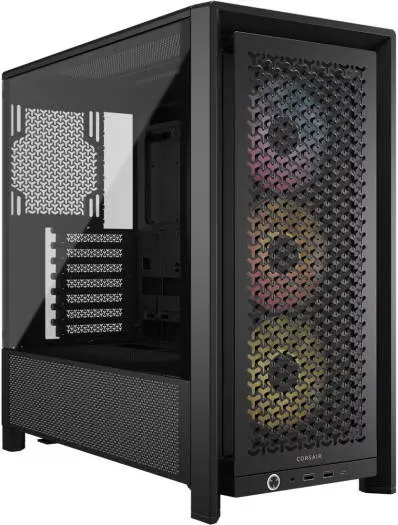

CORSAIR FRAME 4000D RS ARGB Modular Mid-Tower PC Case – Black
Modular Freedom. Brilliant ARGB. Next-Level Cooling.
The CORSAIR FRAME 4000D RS ARGB is a fully modular and high-performance mid-tower PC case designed for enthusiasts who demand both flexibility and precision. Engineered with CORSAIR’s innovative InfiniRail™ Fan Mounting System, it allows effortless customization and adjustment of fan and radiator positions to create the perfect airflow layout.
With three pre-installed RS120 ARGB fans, this case delivers powerful cooling performance and vivid, addressable RGB illumination right out of the box. The 3D-Y Airflow Steel front panel maximizes air intake while maintaining a bold, industrial aesthetic that complements any high-end build.
Built to support reverse connector motherboards, the FRAME 4000D RS ARGB ensures a cleaner, more organized presentation by keeping cables completely out of sight. Supporting GPUs up to 430 mm, radiators up to 360 mm, and up to 10 fans, it offers limitless cooling options for even the most demanding setups.
Key Features

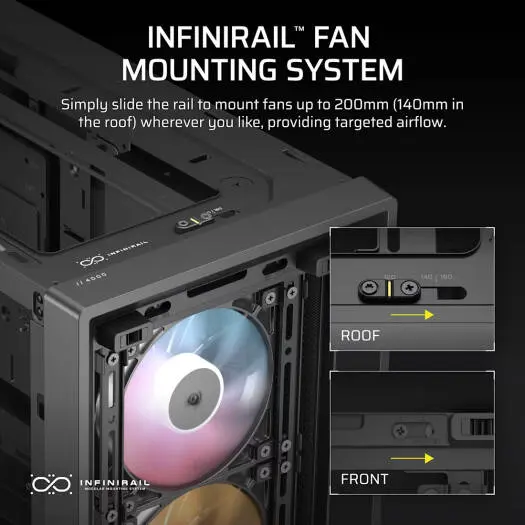

InfiniRail™ Fan Mounting System – Provides modular fan and radiator positioning freedom.
Three Pre-Installed RS120 ARGB Fans – Dynamic lighting and optimized cooling out of the box.

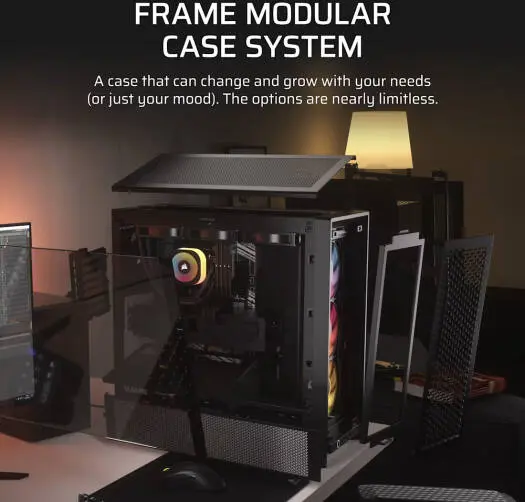

Fully Modular Design – Reconfigure panels, mounts, and layouts for ultimate flexibility.
3D-Y Airflow Steel Front Panel – Promotes strong airflow with a durable, modern design.

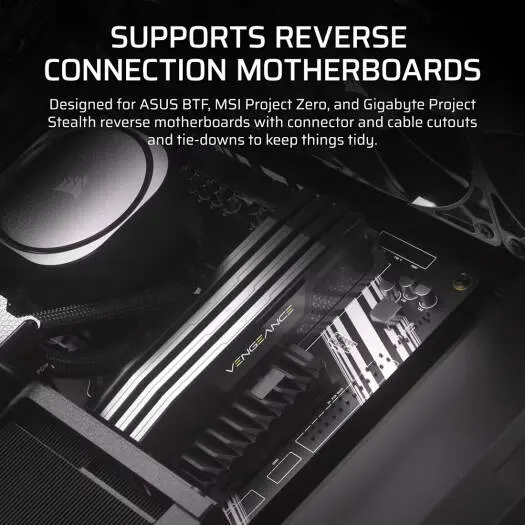

Reverse Connector Motherboard Support – Enables an ultra-clean, cable-free presentation.

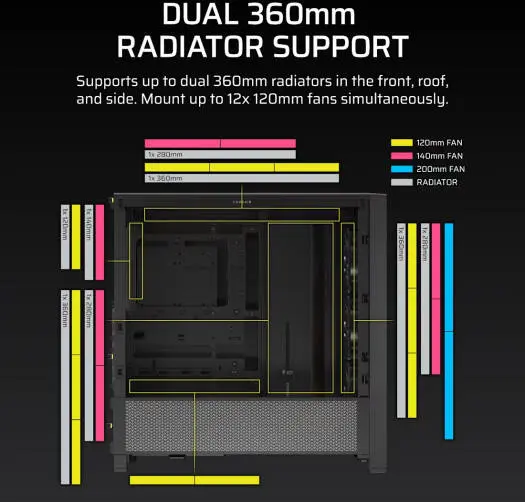

High Cooling Capacity – Supports up to 10 fans and 360 mm radiators on top, front, or side.
Tempered Glass Showcase Panel – Display your hardware and RGB lighting with clarity.

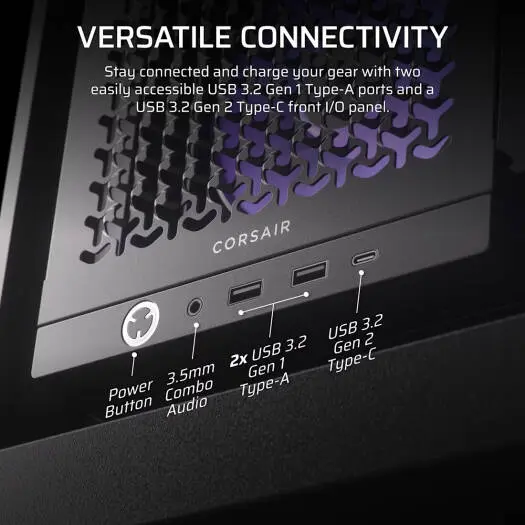

Modern Front I/O – Includes USB-C 3.2 Gen 2, dual USB-A 3.2 Gen 1, and combo audio jack.
Specifications
| Attribute | Specification |
| Brand | CORSAIR |
| Model | FRAME 4000D RS ARGB (CC-9011296-WW) |
| Case Type | Mid-Tower |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Color | Black |

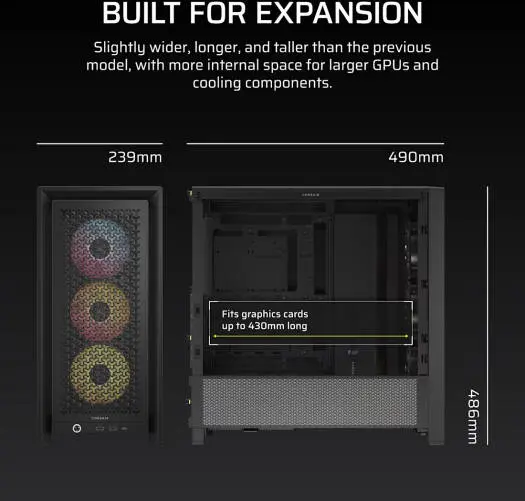

| Dimensions (H × L × W) | 486 mm × 490 mm × 239 mm |
| Weight | 10.38 kg |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX (305 × 277 mm) |
| Expansion Slots | 7 Horizontal or 3 Vertical |
| GPU Maximum Length | 430 mm |
| CPU Cooler Maximum Height | 170 mm |
| PSU Maximum Length | 220 mm |
| PSU Support | ATX |
| Cooling Support | Up to 10 × Fans |
| Pre-Installed Fans | 3 × RS120 ARGB Fans |
| Radiator Compatibility | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm |
| Radiator Support (Top) | 360 / 280 / 240 mm |
| Radiator Support (Front) | 360 / 280 / 240 mm |
| Radiator Support (Side) | 360 / 280 / 240 mm |
| Radiator Support (Rear) | 140 / 120 mm |
| Fan Support (Top) | 3 × 120 mm or 2 × 140 mm |
| Fan Support (Front) | 3 × 120 mm, 2 × 140 mm, or 2 × 200 mm |
| Fan Support (Side) | 3 × 120 mm or 2 × 140 mm |
| Fan Support (Bottom) | 2 × 120 mm |
| Fan Support (Rear) | 1 × 120 mm or 1 × 140 mm |
| Compatible Liquid Coolers | CORSAIR H60 / H100 / H115 / H150 / Nautilus / Titan Series |
| Drive Bays (3.5") | 2 × 3.5 in |
| Drive Bays (2.5") | 4 × 2.5 in |
| Front I/O Ports | 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 1 Type-A, 1 × Audio In/Out |
| Reverse Connector Motherboard Support | Yes |
| Cable Routing Space | 37 mm |
| Dust Filtration | Yes |
| Side Panels | Left: Tempered Glass / Right: Steel |
| Vertical GPU Mount Support | Supported (Riser Card Sold Separately) |
| Warranty | 2 Years |
