Product Description

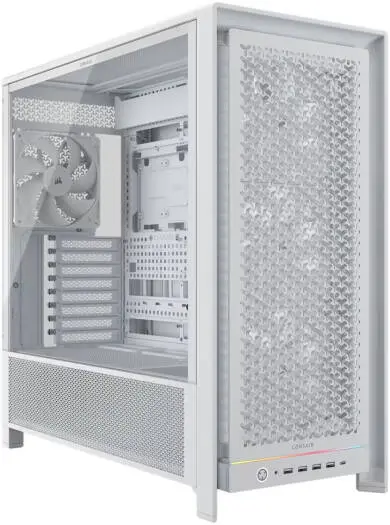

CORSAIR FRAME 5000D RS High-Airflow Mid-Tower PC Case – White
Modular Design • Premium Cooling • Clean Performance
The CORSAIR FRAME 5000D RS delivers the perfect balance between cooling power, space efficiency, and modern design. Built for enthusiasts who demand performance and precision, this high-airflow mid-tower introduces the next generation of modular case engineering with CORSAIR’s exclusive InfiniRail™ Fan Mounting System and RapidRoute 2.0 cable management.
Four pre-installed RS140 fans ensure exceptional cooling right out of the box, while the sculpted 3D-Y Airflow Steel front panel maximizes intake for powerful, efficient airflow. With a spacious dual-layout interior, the FRAME 5000D RS supports reverse-connector motherboards, giving builders a flawless, cable-free presentation.
Designed to house high-end components, this case accommodates GPUs up to 450 mm, radiators up to 420 mm, and up to 13 fans—offering limitless flexibility for air- or liquid-cooling setups inside a pristine white chassis.
Key Features
InfiniRail™ Fan Mounting System – Tool-free, adjustable fan and radiator positioning.
Four Pre-Installed RS140 Fans – Strong cooling performance with clean, silent operation.
RapidRoute 2.0 Cable Management – 42 mm of routing depth for ultra-tidy builds.
3D-Y Airflow Steel Front Panel – High-ventilation steel mesh for maximum intake.
Reverse Connector Motherboard Support – Keep all cables hidden for a minimalist look.
Massive Cooling Support – Holds up to 13 fans and multiple 420 mm radiators.
Tempered Glass Showcase Panel – Displays your components in full clarity.
Next-Gen I/O Panel – USB-C 3.2 Gen 2, four USB-A 3.2 Gen 1, and combo audio port.
Specifications
| Attribute | Specification |
| Brand | CORSAIR |
| Model | FRAME 5000D RS (CC-9011308-WW) |
| Case Type | Mid-Tower High-Airflow |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Color | White |
| Dimensions (H × L × W) | 542 mm × 556 mm × 250 mm |
| Weight | 15.48 kg |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX (305 × 277 mm) |
| Expansion Slots | 8 Horizontal or 3 Vertical |
| GPU Maximum Length | 450 mm |
| CPU Cooler Maximum Height | 175 mm |
| PSU Support | ATX |
| Cooling Support | Up to 13 Fans |
| Pre-Installed Fans | 4 × RS140 Series Fans |
| Radiator Compatibility | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm |
| Radiator Support – Top | 420 / 360 / 280 / 240 mm |
| Radiator Support – Front | 360 / 280 / 240 mm |
| Radiator Support – Side | 360 / 280 / 240 mm |
| Radiator Support – Rear | 140 / 120 mm |
| Fan Support – Top | 3 × 120 mm / 3 × 140 mm |
| Fan Support – Front | 3 × 120 mm / 3 × 140 mm / 2 × 200 mm |
| Fan Support – Side | 3 × 120 mm / 3 × 140 mm |
| Fan Support – Bottom | 4 × 120 mm |
| Fan Support – Rear | 1 × 140 mm / 1 × 120 mm |
| Compatible Liquid Coolers | CORSAIR H60 / H100 / H115 / H150 / Nautilus / Titan Series |
| Drive Bays (3.5") | 2 × 3.5 in |
| Drive Bays (2.5") | 6 × 2.5 in |
| Front I/O Ports | 1 × USB 3.2 Gen 2 Type-C, 4 × USB 3.2 Gen 1 Type-A, 1 × Audio In/Out |
| Reverse Connector Motherboard Support | Yes |
| Cable Routing Space | 42 mm |
| RapidRoute Included | Yes (RapidRoute 2.0) |
| Dust Filtration | Yes (Front, Top, Bottom) |
| Side Panels | Left: Tempered Glass / Right: Steel |
| Vertical GPU Mount Support | Supported (Riser Card Sold Separately) |
| Warranty | 2 Years |
