Product Description

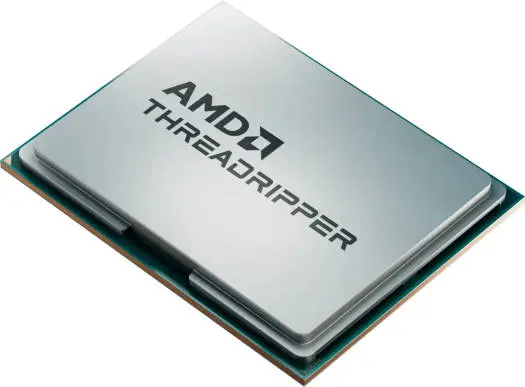

AMD Ryzen™ Threadripper™ 7960X sTR5 Processor – 24 Cores, 48 Threads, 5.3 GHz Max Boost, 128 MB Cache, DDR5-5200 ECC, PCIe 5.0 | 100-100001352WOF
Performance for the Demanding Professional
The AMD Ryzenâ„¢ Threadripperâ„¢ 7960X brings exceptional multi-core performance and efficiency to creative studios, engineering workstations, and high-end desktops. Featuring 24 Zen 4 cores and 48 threads, it easily handles advanced content creation, 3D rendering, simulation, and heavy multitasking workloads.
Built on the TSMC 5 nm FinFET process, this processor delivers outstanding frequency scaling—achieving up to 5.3 GHz—while maintaining remarkable efficiency. With support for DDR5 ECC memory, PCIe 5.0, and quad-channel bandwidth, professionals can depend on unmatched throughput and scalability for modern, data-intensive workflows.
 Key Features
24 Cores & 48 Threads for powerful multitasking
4.2 GHz Base / 5.3 GHz Max Boost Clock
128 MB L3 Cache & 24 MB L2 Cache
4-Channel DDR5 ECC Memory support (up to 5200 MT/s)
48 PCIe 5.0 lanes for ultra-fast connectivity
Overclocking enabled (Precision Boost 2 + PBO)
Unlocked for custom tuning and performance control
AMD Zen 4 Architecture built on 5 nm technology
Designed for sTR5 socket platform and TRX50 chipsets
Specifications
| Category | Specification |
| Platform | Desktop |
| Market Segment | Enthusiast Desktop |
| Product Family | AMD Ryzenâ„¢ Processors |
| Product Line | AMD Ryzenâ„¢ Threadripperâ„¢ Processors |
| Architecture | Zen 4 (Storm Peak) |
| Cores / Threads | 24 / 48 |
| Base Clock | 4.2 GHz |
| Max Boost Clock | Up to 5.3 GHz |
| L1 Cache | 1.5 MB |
| L2 Cache | 24 MB |
| L3 Cache | 128 MB |
| Default TDP | 350 W |
| Processor Technology | TSMC 5 nm FinFET (CPU Cores), TSMC 6 nm FinFET (I/O Die) |
| Unlocked for Overclocking | Yes |
| Memory Type | DDR5 ECC |
| Memory Channels | 4 |
| Max Memory Speed | Up to 5200 MT/s |
| Max Memory Capacity | 1 TB (Depends on configuration) |
| PCIe Version | PCIe 5.0 x48 lanes |
| CPU Socket | sTR5 |
| Thermal Solution | Not Included (Liquid cooler recommended) |
| Max Operating Temp (Tjmax) | 95 °C |
| Launch Date | October 19, 2023 |
| OS Support | Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
