Product Description

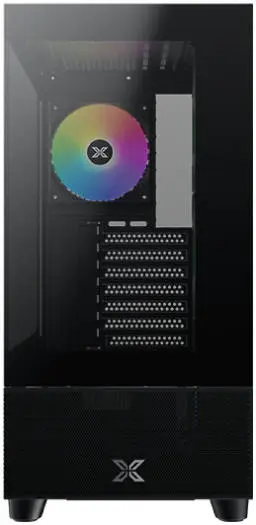

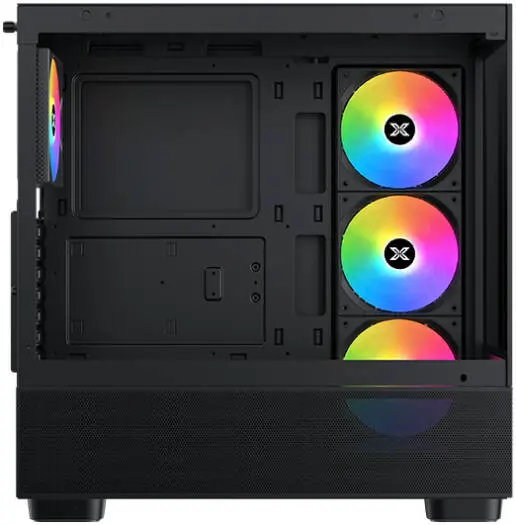

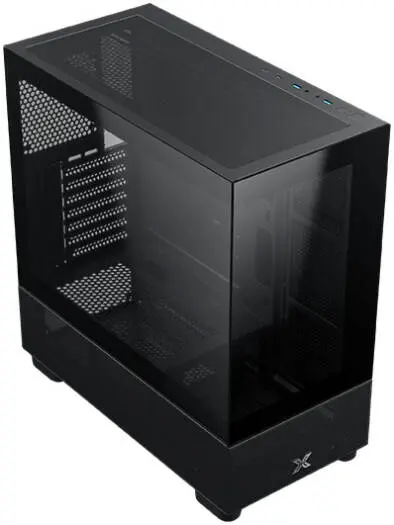

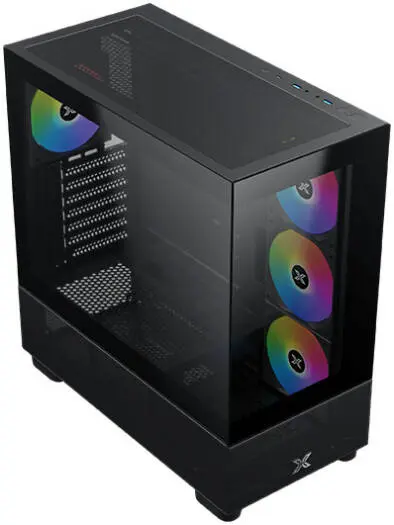

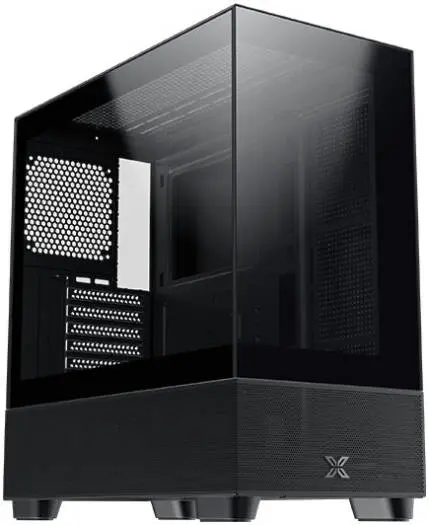

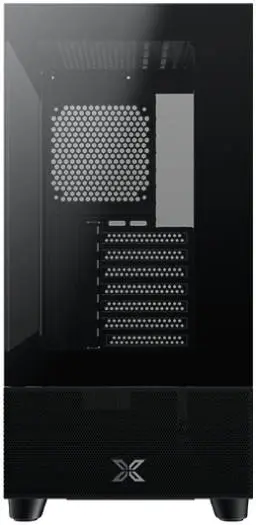

Xigmatek Endorphin Air V2 E-ATX Computer Case, 4x S20A Pre-Installed Fans, 360mm Radiator Support, 7 Expansion Slots, Two-Sided Tempered Glass, Steel Material, Black EN41822
Specifications
| Product Name | Endorphin Air V2 |
| Material | Steel |
| Dimensions (L×W×H) | 435 × 218 × 456 mm |
| Drive Bays | HDD Cage (Bottom): 3.5″ ×1 HDD Cage (Top): 3.5″ & 2.5″ Combo ×1 SSD Bracket: 2.5″ ×2 |
| Expansion Slots | 7 Standard Slots |
| Motherboard Support | E-ATX, ATX, M-ATX, Mini ITX |
| Power Supply | Standard PS2 ATX PSU |
| Fan Support | Top: 120mm ×3 or 140mm ×2 MB: 120mm ×3 (E-ATX MB Width ≤ 28cm) HDD Cage: 120mm ×1 PSU Shroud: 120mm ×2 Rear: 120mm ×1 |
| Radiator Support | Top: 360mm (Memory Height ≤ 45mm) MB Panel: 240mm (E-ATX MB Width ≤ 28cm) Rear: 120mm |
| I/O Panel | USB 3.0 ×2, Type C ×1, HD Audio |
| CPU Cooler Clearance | 170mm |
| GPU Length Limitation | 285mm (Fan on MB Panel) 420mm (No Fan on MB Panel) |
| PSU Length Limitation | 220mm |
