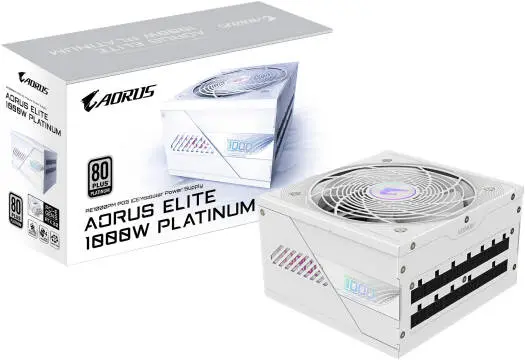

GIGABYTE AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 Power Supply – White  GP-AE1000PM-PG5-ICE

The GIGABYTE AORUS ELITE P1000W is a high-end, fully modular power supply built for modern, power-hungry gaming and workstation PCs. With 1000W of stable output, 80 PLUS Platinum efficiency, and full Intel ATX 3.0 / PCIe 5.0 compliance, this PSU is engineered to handle next-generation GPUs and CPUs with ease.

Designed in a clean all-white ICE edition, it pairs premium performance with standout aesthetics, making it ideal for showcase builds. The 120mm Fluid Dynamic Bearing (FDB) fan ensures quiet, long-lasting cooling, while comprehensive protection circuits keep your system safe under all conditions.

Key Features

• 1000W High-Performance Output for high-end GPUs and CPUs

• Intel ATX 3.0 compliant (backward compatible with ATX 3.1)

• PCIe 5.0 Ready with native 16-pin (12VHPWR) connector

• 80 PLUS Platinum Certified – up to 92% efficiency

• Fully Modular Design with flat, all-white cables

• 120mm Fluid Dynamic Bearing Fan for quiet and durable operation

• Comprehensive Protection (OVP, OPP, SCP, UVP, OCP, OTP)

• Premium ICE White Finish for clean, modern PC builds

Technical Specifications

Model

• GP-AE1000PM-PG5-ICE

Form Factor

• Intel ATX 12V v3.0 (ATX 3.1 compatible)

Output Power

• 1000W

Efficiency Certification

• 80 PLUS Platinum

• Up to 92% efficiency at typical load

PFC

• Active PFC (>0.9 typical)

Input Voltage

• 100–240V AC (Full Range)

Input Frequency

• 50–60 Hz

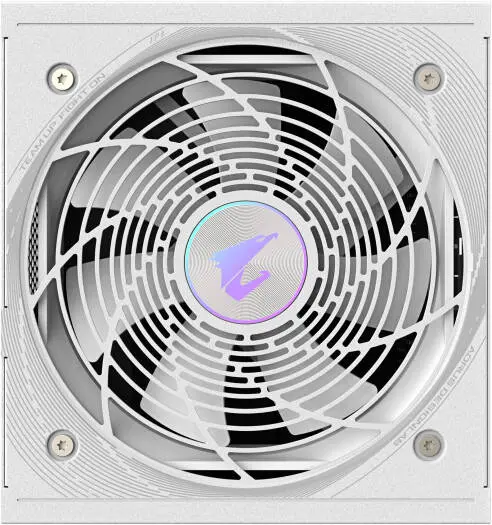

Cooling Fan

• 120mm Fluid Dynamic Bearing (FDB)

Dimensions

• 150 × 140 × 86 mm

MTBF

• 100,000 hours

Power Good Signal

• 100–150 ms

Hold-Up Time

• 16 ms

Protections

• OVP / OPP / SCP / UVP / OCP / OTP

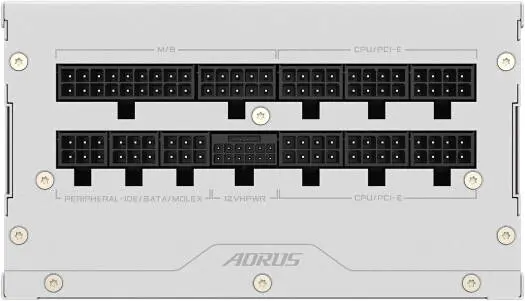

Cable & Connector Configuration (All-White, Flat Cables)

• ATX 20+4 Pin ×1 (650mm)

• CPU / EPS 4+4 Pin ×2 (700mm)

• PCIe 16-Pin (PCIe 5.0) ×1 (700mm)

• PCIe 6+2 Pin ×6

• SATA Power ×8

• 4-Pin Peripheral (Molex) ×4
