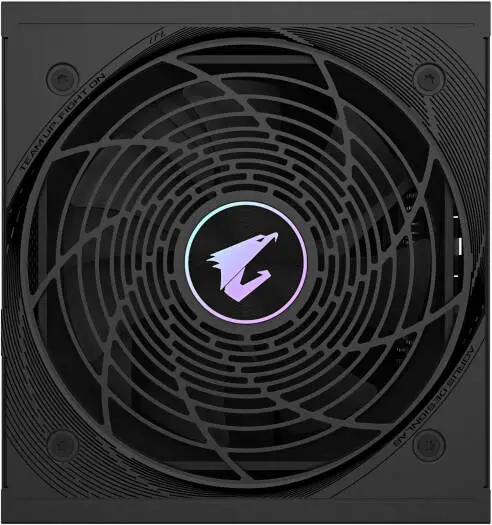

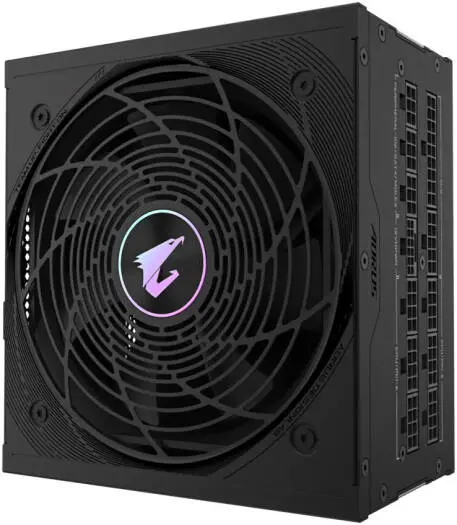

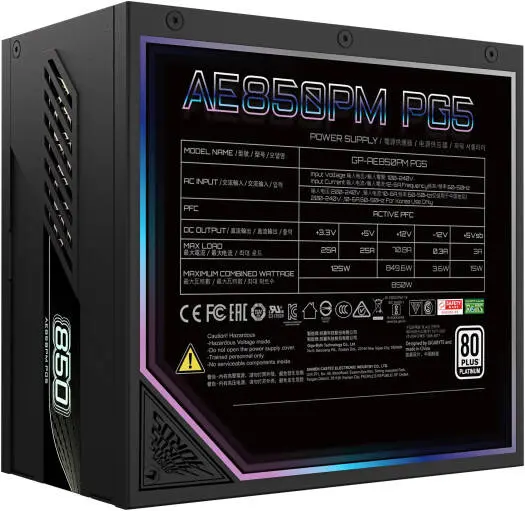

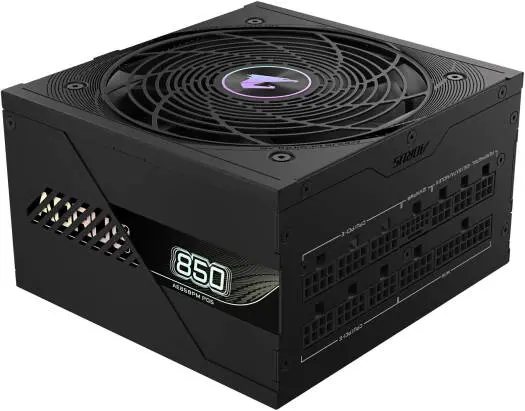

GIGABYTE AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0 Power Supply – Black  GP-AE850PM-PG5

The GIGABYTE AORUS ELITE P850W is a high-end, fully modular power supply built for modern gaming PCs and professional workstations that demand stable power, high efficiency, and future-ready compatibility. Delivering 850W of continuous power and certified 80 PLUS Platinum, it achieves up to 92% efficiency, reducing heat, noise, and wasted energy.

Designed to meet the latest Intel ATX 12V v3.0 standard and fully compatible with ATX 3.1, this PSU is PCIe 5.0 ready, making it ideal for next-generation graphics cards. A 120mm Fluid Dynamic Bearing (FDB) fan ensures quiet operation and long service life, while a full suite of electrical protections keeps your system safe under heavy loads.

Finished in stealth black with flat modular cables, the GP-AE850PM PG5 is perfect for clean, professional-looking builds without sacrificing performance.

Key Features

• 850W continuous power output for high-performance systems

• 80 PLUS Platinum certified – up to 92% efficiency

• Intel ATX 12V v3.0 compliant (ATX 3.1 compatible)

• Native PCIe 5.0 (16-pin) connector for modern GPUs

• Fully modular, flat black cables for clean cable management

• 120mm FDB fan for efficient, low-noise cooling

• Comprehensive protection suite for maximum system safety

• Sleek all-black AORUS ELITE design

Technical Specifications

Model

• GP-AE850PM PG5

Form Factor

• Intel ATX 12V v3.0 (compatible with ATX 3.1)

Output Capacity

• 850W

Efficiency Certification

• 80 PLUS Platinum

• Up to 92% efficiency at typical load

Power Factor Correction

• Active PFC (>0.9 typical)

Input Voltage

• 100–240V AC (full range)

Input Current

• 12–6A

Input Frequency

• 50–60 Hz

Cooling

• 120mm Fluid Dynamic Bearing (FDB) fan

Dimensions

• 150 × 140 × 86 mm

MTBF

• 100,000 hours

Power Good Signal

• 100–150 ms

Hold-Up Time

• 16 ms

Protection Features

• OVP / OPP / SCP / UVP / OCP / OTP
