Product Description

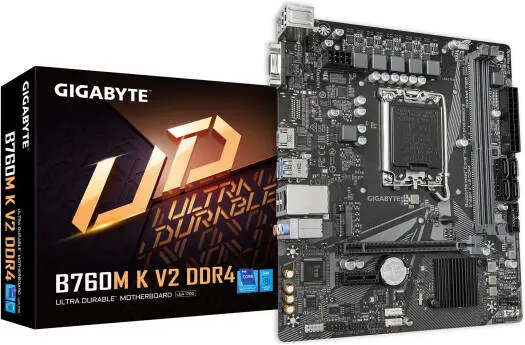

GIGABYTE B760M K V2 DDR4 – Reliable Essentials for Everyday Builds

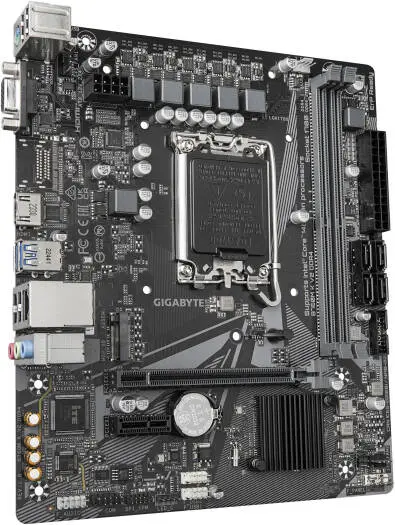

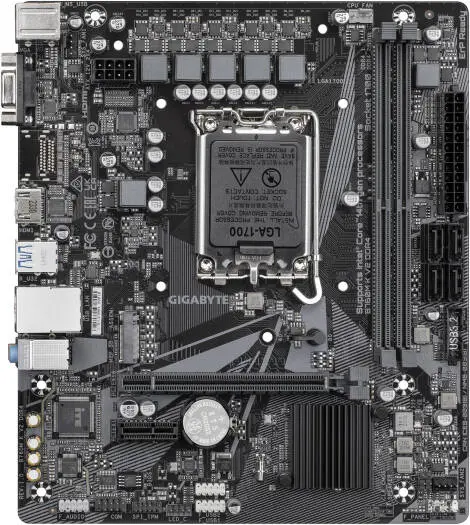

The GIGABYTE B760M K V2 DDR4 is a compact, dependable Micro-ATX motherboard built for Intel® 12th, 13th, and 14th Gen processors on the LGA1700 socket. Designed for stability and value, it delivers the features most users actually need—DDR4 support, PCIe 4.0 graphics, and NVMe storage—in a space-saving form factor that’s perfect for home, office, and entry-level gaming PCs.
With dual-channel DDR4 up to 64GB, a PCIe 4.0 x16 slot for modern GPUs, and a PCIe 3.0 x4 M.2 slot for fast SSDs, this board keeps builds responsive and upgrade-friendly. Add in GIGABYTE’s UEFI BIOS tools and solid component quality, and you’ve got a no-nonsense platform that gets the job done.
Why it’s a smart pick
Intel® LGA1700 support for 12th / 13th / 14th Gen CPUs
DDR4 memory up to 64GB with XMP support
PCIe 4.0 x16 for current-gen graphics cards
M.2 NVMe (PCIe 3.0 x4) + SATA RAID support
Compact Micro-ATX size for smaller cases
GIGABYTE Control Center & Q-Flash for easy setup and maintenance
Specifications
| Category | Details |
| CPU | LGA1700 – Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron® |
| Chipset | Intel® B760 Express |
| Memory | 2× DDR4 DIMM, up to 64GB, Dual Channel DDR4 2133–3200 MT/s ECC / Non-ECC Unbuffered, XMP |
| Graphics | Intel® HD Graphics (CPU dependent) D-Sub: 1920×1200@60Hz HDMI 2.1: 4K@60Hz (HDCP 2.3) |
| Audio | Realtek® HD Audio CODEC, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN (10/100/1000 Mbps) |
| Expansion Slots | 1Ă— PCIe 4.0 x16 (CPU) 1Ă— PCIe 3.0 x1 |
| Storage | 1Ă— M.2 PCIe 3.0 x4/x2 (2280/2260) 4Ă— SATA 6Gb/s RAID 0/1/5/10 |
| USB Ports | Rear: 2Ă— USB 3.2 Gen1, 4Ă— USB 2.0 Internal: 2Ă— USB 3.2 Gen1, 4Ă— USB 2.0 |
| Internal I/O | 24-pin ATX, 8-pin CPU power CPU/System fan headers, RGB header TPM, Clear CMOS, chassis intrusion |

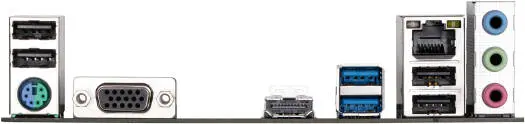

| Back Panel | PS/2, D-Sub, HDMI, USB ports, RJ-45, 3Ă— audio jacks |
| BIOS | 128 Mbit AMI UEFI BIOS, Q-Flash |
| OS Support | Windows® 11 / Windows® 10 (64-bit) |
| Form Factor | Micro-ATX (22.3 Ă— 19.3 cm) |
