Product Description

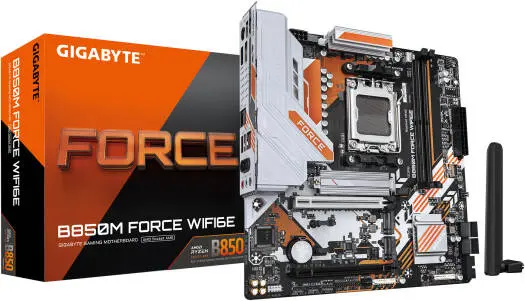

GIGABYTE B850M FORCE WIFI6E AM5 Micro ATX Motherboard, AMD B850 Chipset, 2x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 Slot, 3x M.2 Slots, WiFi 6E & BT 5.3 | B850M-FORCE-WF6E

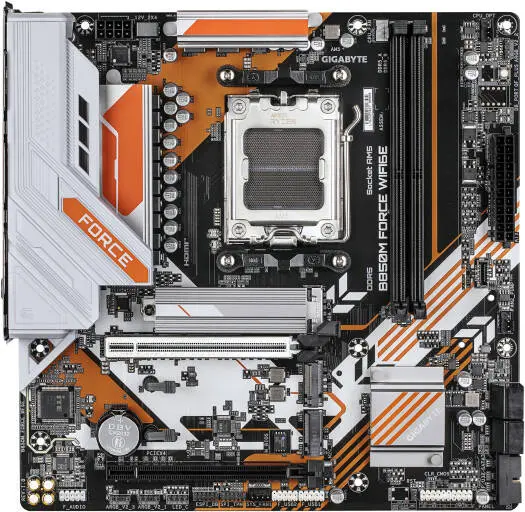

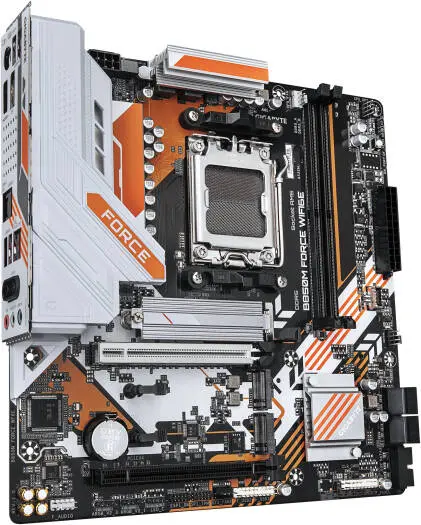

The GIGABYTE B850M FORCE WIFI6E is a Micro ATX motherboard built on the AMD B850 chipset, supporting AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. It features a compact form factor (244 x 244 mm) and includes 2 DDR5 DIMM slots supporting up to 128GB memory with speeds up to 9600 MHz (OC). The board supports dual-channel memory with AMD EXPO profiles and offers stable 8+2+2 phase digital VRM power delivery.
Specifications
| CPU | AMD Socket AM5; supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | DDR5 up to 9600(OC) MT/s; 2× DIMM slots up to 128 GB; Dual channel; non-ECC Un-buffered; supports AMD EXPO™ & XMP |
| Onboard Graphics | AMD Radeon™ integrated GPU; HDMI 2.1 (4096×2160 @ 60 Hz); DisplayPort 1.4 (3840×2160 @ 144 Hz); HDCP 2.3, HDR |
| Audio | Realtek® Audio CODEC; HD Audio; 2/4/5.1/7.1 ch |
| LAN | Realtek® 2.5 GbE LAN |
| Wireless | MediaTek Wi-Fi 6E MT7902 (2.4/5/6 GHz, 11ax 160 MHz); Bluetooth 5.3 |
| Expansion Slots | 1× PCIe x16 (CPU): Ryzen 9000/7000 → PCIe 5.0 x16, Ryzen 8000 (Phoenix 1) → PCIe 4.0 x8, Phoenix 2 → PCIe 4.0 x4; 1× PCIe x16 (Chipset) PCIe 4.0 x4 |
| Storage Interface | 3× M.2 (Support PCIe 5.0/4.0 x4/x2 SSDs depending on CPU); 4× SATA 6 Gb/s; RAID 0/1/5/10 (NVMe) – RAID 5 only on Ryzen 9000; RAID 0/1/10 (SATA) |
| USB | CPU: 1× USB-C 3.2 Gen 1 (rear), 1× USB 3.2 Gen 2 Type-A (red), 1× USB 2.0 (rear) Chipset: 1× USB-C 3.2 Gen 1 (internal), 4× USB 3.2 Gen 1 (2 rear + 2 internal), 5× USB 2.0 (1 rear + 4 internal) |
| Internal I/O | 24-pin ATX + 8-pin CPU power; multiple fan + pump headers; 3× ARGB Gen2 + 1× RGB headers; 3× M.2 slots; 4× SATA; front panel + audio; USB-C/USB 3.2 Gen 1/USB 2.0 headers; TPM header; Reset + Clear CMOS jumpers; Q-Flash Plus button |

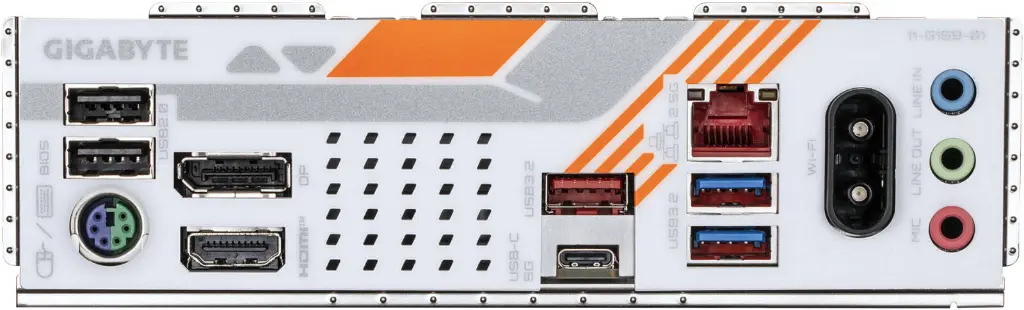

| Back Panel | HDMI, DisplayPort, PS/2, USB-C 3.2 Gen 1, 2× USB 3.2 Gen 1, 1× USB 3.2 Gen 2 (red), 2× USB 2.0, RJ-45 (2.5 GbE), 2× antenna ports, 3× audio jacks |
| I/O Controller | iTE® Controller |
| H/W Monitoring | Voltage, temperature, fan speed, water flow; fan fail warning; speed control |
| BIOS | 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
