Product Description

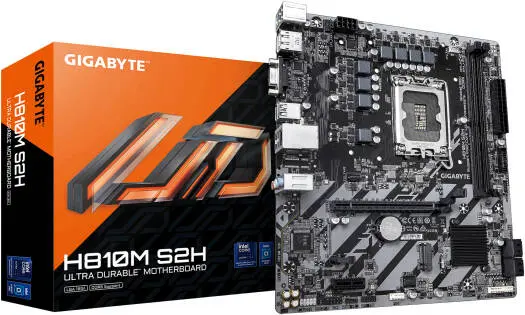

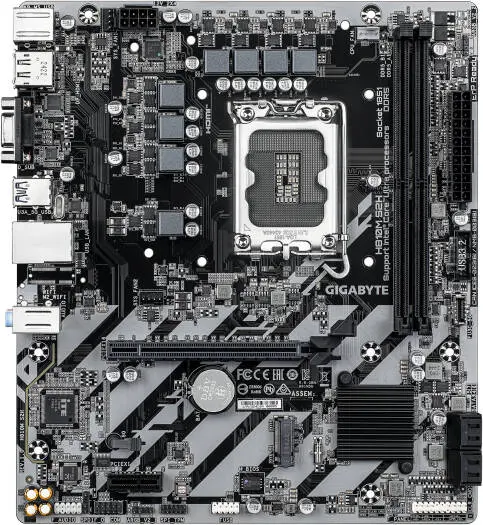

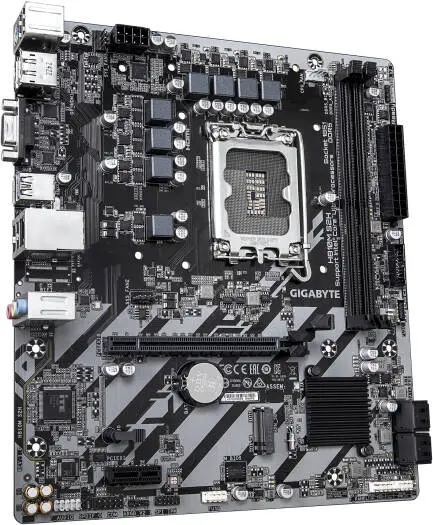

GIGABYTE H810M S2H LGA1851 micro-ATX motherboard with Intel H810 chipset, DDR5 up to 128GB, PCIe x16 slot, and M.2 storage—simple, reliable choice for next-gen Intel PCs. H810M-S2H
Specifications
| CPU | LGA1851 socket, Intel® Core™ Ultra Processors |
| Chipset | Intel® H810 Express Chipset |
| Memory | 2x DDR5 DIMM 6400/5600 MT/s, Dual Channel, 128GB max |
| Onboard Graphics | HDMI 2.1, DP 2.1, D-Sub, Triple-display support |
| Audio | Realtek® Audio CODEC, 7.1-channel, S/PDIF Out |
| LAN | Realtek® GbE LAN (1 Gbps) |
| Expansion Slots | 1x PCIe 4.0 x16 (GPU/NVMe SSD), 1x PCIe 3.0 x1 |
| Storage | 1x M.2 PCIe 4.0, 4x SATA 6Gb/s, RAID 0/1/5/10 |
| USB Ports | USB 3.2 Gen 1: 1x Type-C, 3x Type-A, USB 2.0: 7x |
| Internal I/O | 24-pin ATX, 8-pin CPU, 2x RGB Gen2, 2x fan headers |

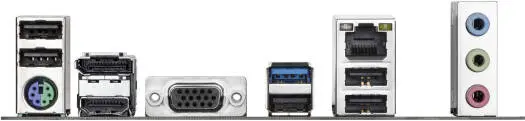

| Back Panel I/O | HDMI, DP, D-Sub, 1x USB 3.2, 5x USB 2.0, LAN, audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temp, fan speed, water cooling detection |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Smart Backup |
| Bundled Software | Norton® Internet Security, LAN management |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 21.5cm |
