Product Description

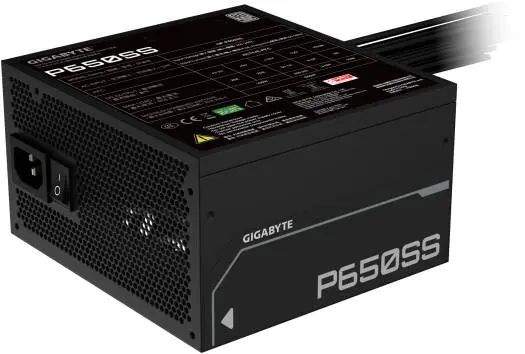

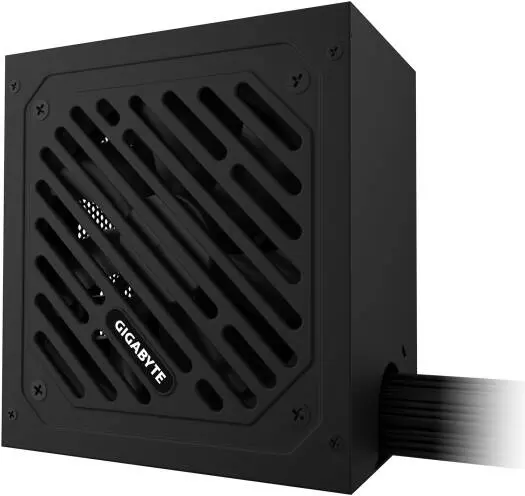

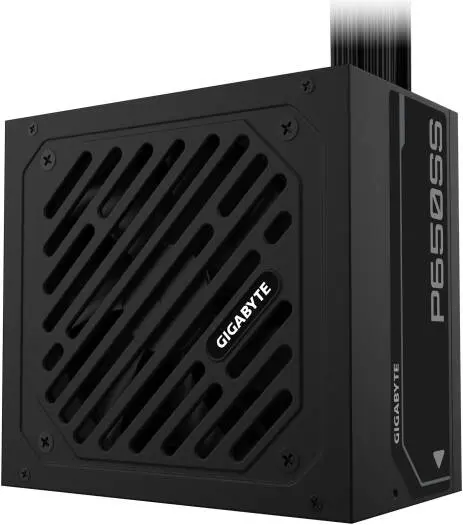

GIGABYTE P650SS Non Modular Power Supply, 650W Power, 80 Plus Silver Efficiency, 120mm Fluid Dynamic Bearing Fan, Intel ATX 3.0 Standard, 0.9 Active PFC, Black  GP-P650SS
Specifications
| Model | GP-P650SS |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 155-240 Vac |
| Input Current | 6.3A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 650W |
| Dimension | 150 x 140 x 86 mm |

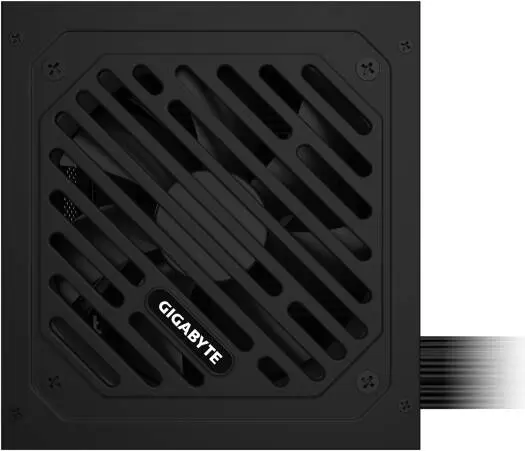

| Fan Type | 120mm Fluid Dynamic Bearing (FDB) fan |
| 80 PLUS | Silver |
| Efficiency | 90% at typical load (230V EU) |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | Â |
| ATX/MB 20+4 Pin | x 1 : 600mm*1 |
| CPU/EPS 4+4 Pin | x 2 : 650mm+120mm*1 |
| PCI-e 6+2 Pin | x 2 : 600mm*2 |
| SATA x 3 + 4 Pin Peripheral | x 1 : 500mm+120mm+120mm+120mm*1 |
| SATA x 2 + 4 Pin Peripheral | x 2 : 500mm+120mm+120mm+120mm*1 |
