Product Description

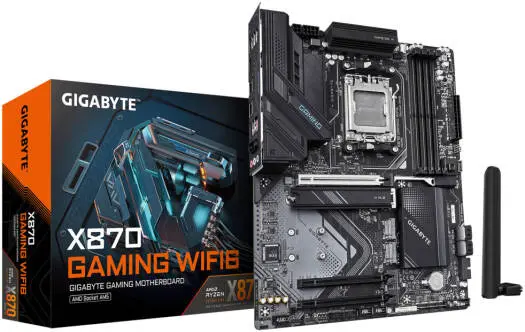

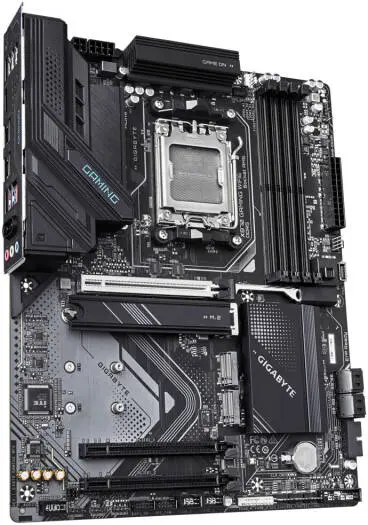

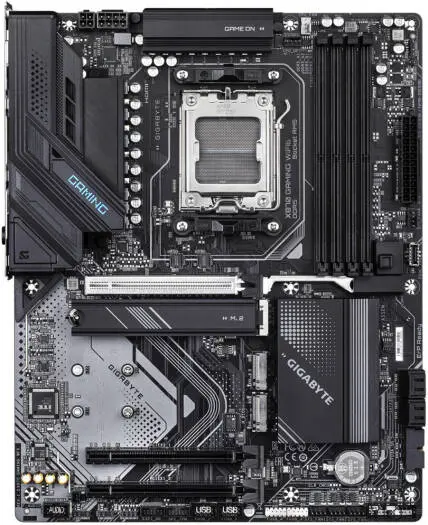

X870 GAMING WIFI6
Specifications
| Feature | Specification |
| CPU Support | AMD Socket AM5: Ryzenâ„¢ 9000/8000/7000 Series Processors |
| Chipset | AMD X870 |
| Memory Support | - DDR5 8200(O.C) to 4400MT/s memory modules |
| Â | - 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) |
| Â | - Dual-channel architecture, supports AMD EXPOâ„¢ and XMP profiles |
| Graphics | Integrated AMD Radeonâ„¢ Graphics |
|  | - 2 x USB4® USB Type-C® (3840x2160@240Hz, DisplayPort 1.4, HDR) |
| Â | - 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDR) |
| Audio | Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1-channel audio |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 6 RTL8851BE: Wi-Fi a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion Slots | - 1 x PCIe 5.0 x16 slot (Ryzenâ„¢ 9000/7000 Series) |
| Â | - 2 x PCIe 3.0 x1 slots (chipset) |
| Storage Interface | - 1 x M.2 PCIe 5.0 x4 SSD slot (CPU-integrated) |
| Â | - 2 x M.2 PCIe 4.0 x4/x2 SSD slots (chipset-integrated, shared bandwidth) |
| Â | - 4 x SATA 6Gb/s connectors |
| Â | - RAID 0/1/5/10 for NVMe SSDs (RAID 5 only on Ryzenâ„¢ 9000 Series); RAID 0/1/10 for SATA |
| USB Ports | - 2 x USB4® USB Type-C® ports |
| Â | - 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 (back panel) |
|  | - Internal: 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 headers |
| Internal I/O Connectors | - 1 x 24-pin ATX main, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V |
| Â | - 1 x CPU fan, 1 x CPU fan/water cooling pump, 4 x system fan |
| Â | - 3 x addressable RGB Gen2 LED, 1 x RGB LED strip headers |
| Â | - 4 x SATA connectors, 3 x M.2 Socket 3 connectors, front panel headers |
| Â | - Trusted Platform Module header, reset jumper, Clear CMOS jumper |
| Back Panel Connectors | - 2 x SMA antenna, 1 x HDMI, 2 x USB4® USB Type-C®, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 |
| Â | - 4 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks, 1 x Q-Flash Plus button |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, supports Q-Flash, Q-Flash Plus, and Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup |
