Product Description
Long Description

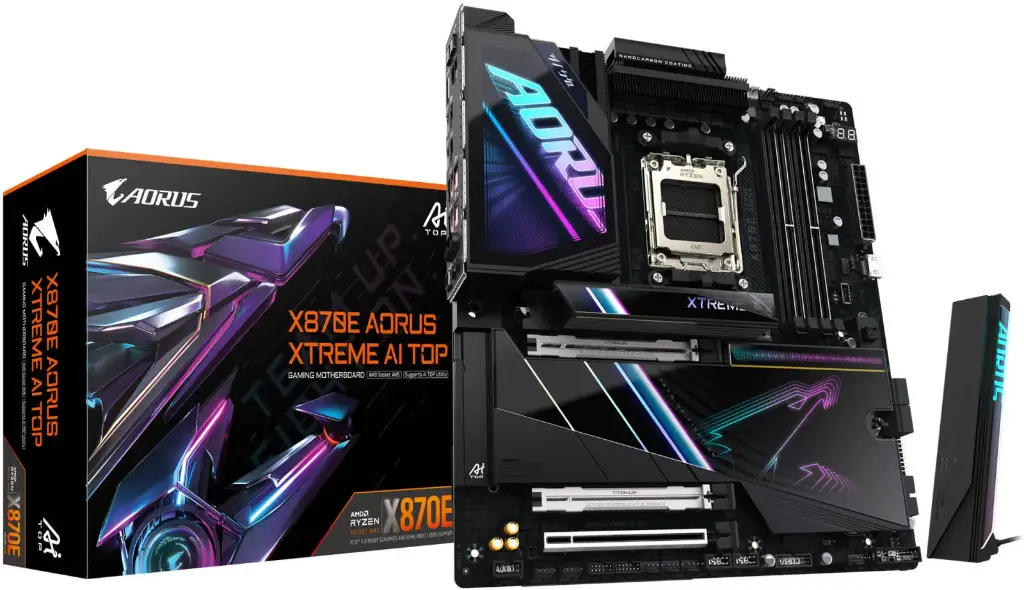

The GIGABYTE X870E AORUS XTREME AI TOP is a premium E-ATX motherboard for AMD’s latest Ryzen CPUs (7000/8000/9000 series) with AMD AM5 socket and X870E chipset. It delivers extreme performance, scalability, and durability for demanding gaming, AI development, and content creation.
Equipped with a robust 18+2+2 digital VRM, 110 A power stages, and dual-copper 8-layer PCB, it supports overclocked DDR5 memory up to 8800 MT/s and up to 256GB capacity. Storage and expansion are future-ready with dual PCIe 5.0 x16 slots (x16/x8+x8), plus one PCIe 4.0 x2 slot, and four M.2 slots (one PCIe 5.0, three PCIe 4.0), along with four SATA 6 Gb/s ports.
Connect at lightning speed using dual USB4 Type-C ports with DisplayPort support, six rear USB 3.2 Gen 2 ports, numerous front panel headers including USB 3.2 Gen 2x2, and more. Networking is second-to-none with dual 10 Gigabit LAN and Wi-Fi 7 with high-gain ARGB antenna. Visual flair and customization come via I/O Zone AORUS RGB lighting and RGB FUSION.
Premium design touches include tool-less EZ-Latch for M.2/PCIe slots, VRM Thermal Armor with M.2 Thermal Guard XL, NVMe cooling, durable titanium PCIe UD Slot, DDR Wind Blade, sensor panel link, and onboard Q-Flash, Clear CMOS, power/reset buttons for effortless fine-tuning and diagnostics.
Key Features
Form Factor & Socket: E-ATX, AM5—supports Ryzen 7000/8000/9000 series
Power & Cooling: 18+2+2 VRM with 110 A Smart Power Stages, 8-layer dual-copper PCB, VRM Thermal Armor, M.2 Thermal Guard XL, DDR Wind Blade
Memory: 4× DDR5 DIMMs, up to 256 GB, overclockable to DDR5-8800 (AMD EXPO/XMP)
Expansion:
2× PCIe 5.0 ×16 (x16 or dual x8), 1× PCIe 4.0 ×16 (x2 mode)
4× M.2 slots (1× PCIe 5.0, 3× PCIe 4.0), 4× SATA 6 Gb/s
USB & Video: Dual USB4 Type-C (40 Gb/s + DP-Alt), HDMI 2.1, front USB 3.2 Gen 2x2 Type-C header, multiple USB A ports
Networking: Dual 10 GbE LAN, Wi-Fi 7 (Tri-band) + Bluetooth with ultra-high gain antenna
Audio: Realtek ALC1220 HD audio + ESS SABRE 9118 DAC, DTS:X Ultra
Durability & UI: Titanium PCIe slot, EZ-Latch design, sensor panel link, power/reset/Clear CMOS buttons, RGB FUSION lighting
BIOS & Management: UEFI with Q-Flash, Active OC Tuner, BIOS Flashback
Summary Table
| Category | Details |
|---|---|
| Model | X870E AORUS XTREME AI TOP |
| CPU Support | AMD AM5 (Ryzen 7000/8000/9000) |
| Form Factor | E-ATX (305×269 mm) |
| Memory | DDR5 up to 8800 MT/s (OC), 256 GB |
| Power Design | 18+2+2 VRM, 110 A stages, dual copper PCB |
| Expansion Slots | 2× PCIe 5.0 ×16, 1× PCIe 4.0 ×2 |
| Storage | 4× M.2 (1 PCIe 5.0, 3 PCIe 4.0), 4× SATA |
| USB Ports | 2× USB4 Type-C, multiple USB 3.2/USB 2.0 A |
| Networking | 2× 10GbE LAN, Wi-Fi 7 + BT |
| Audio | ALC1220 + ESS 9118 DAC, DTS:X Ultra |
| Cooling & Build | VRM/M.2 heatsinks, tool-less latches, RGB |
| Extras | BIOS buttons, sensor panel link, RGB zone |
