Product Description

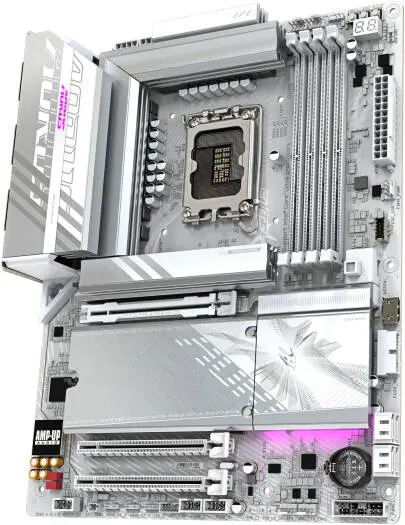

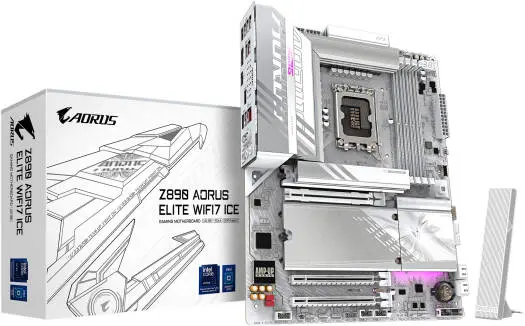

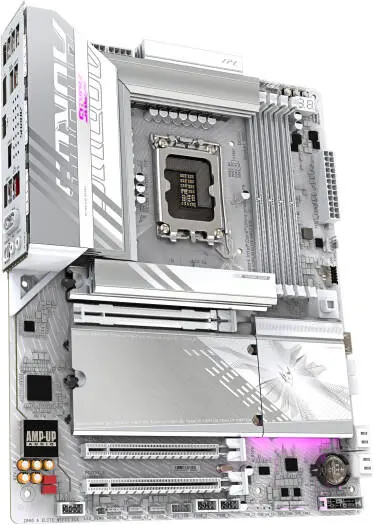

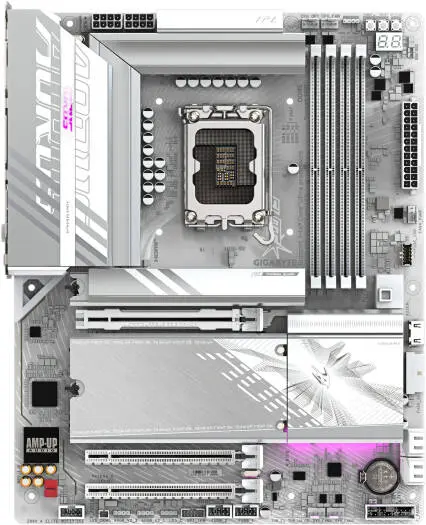

Z890 Aorus Elite Wi-Fi 7 Ice
A high-performance motherboard designed for enthusiasts and gamers who prioritize cooling, performance, and wireless connectivity. It is based on the Intel Z890 chipset and offers a wide range of features to support the latest Intel Core processors.
Specifications
| CPU | LGA1851 socket, Intel® Core™ Ultra Processors support, L3 cache varies with CPU. |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Supports DDR5 9200(O.C) - 5600MT/s memory modules, 4x DDR5 DIMM sockets, up to 256 GB, Dual-channel, ECC Un-buffered DIMM, XMP memory modules, CUDIMM support. |
| Onboard Graphics | Integrated Intel® HD Graphics, Thunderbolt™ 4 (max resolution 5120x2880@60Hz), USB4® (max resolution 3840x2160@240Hz), HDMI (1920x1080@30Hz), DisplayPort (4096x2304@60Hz), triple-display support. |
| Audio | Realtek® ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out. |
| LAN | Realtek® 2.5GbE LAN chip |

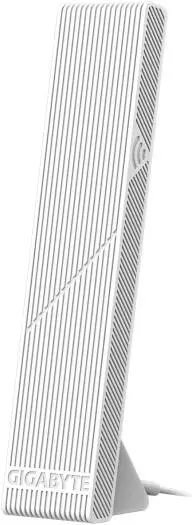

| Wireless | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0), Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1), Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands, Wi-Fi 7 features for Windows 11 SV3. |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x4 (Chipset). |
| Storage Interface | CPU: 2x M.2 (PCIe 5.0 & PCIe 4.0); Chipset: 2x M.2 (PCIe 4.0/SATA), 4x SATA 6Gb/s. RAID 0/1/5/10 for NVMe & SATA. |
| USB Ports | Thunderbolt™ 4, USB Type-C® (USB 3.2 Gen 2), 2x USB 3.2 Gen 2 Type-A, 5x USB 3.2 Gen 1, 8x USB 2.0/1.1. |
| Internal I/O Connectors | 24-pin ATX, 8-pin ATX 12V, fan headers, RGB LED strip headers, M.2, SATA, TPM header, HDMI port, USB headers, Q-Flash Plus button, Clear CMOS. |
| Back Panel Connectors | Thunderboltâ„¢ 4, USB 3.2 (Type-A & Gen 1), USB 2.0, DisplayPort, RJ-45, optical S/PDIF, audio jacks, antenna connectors. |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control. |
| BIOS | AMI UEFI BIOS, 256 Mbit flash |
| Unique Features | GIGABYTE Control Center, Q-Flash, Smart Backup. |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software. |
| Operating System Support | Windows 11 64-bit |
| Form Factor | ATX, 30.5 cm x 24.4 cm |
