Product Description
ASUS ROG Astral GeForce RTX™ 5090 BTF Gaming OC Edition – 32 GB GDDR7, PCIe 5.0, BTF Cable-Free Design
Model No.: 90YV0NF0-M0NA00
 The Final Frontier of Gaming Power
The ROG Astral GeForce RTX™ 5090 BTF Gaming OC Edition represents the pinnacle of ASUS innovation — combining unmatched performance, revolutionary BTF technology, and advanced cooling engineering. Designed for the elite gamer and content creator, this card features NVIDIA Blackwell architecture, 21 760 CUDA cores, and 32 GB of GDDR7 VRAM, pushing visual fidelity and frame rates beyond imagination.
 BTF Ecosystem – Truly Cable-Free, Future-Ready
Hidden-Connector Design: Enjoy an ultra-clean cable-free build by pairing the GPU with a BTF motherboard and chassis.
Detachable GC-HPWR Adapter: Supports up to 1000 W power delivery for uncompromised performance.
Universal Compatibility: Works flawlessly with both standard and BTF motherboards, giving builders total flexibility.
Reinforced Power Delivery: Enhanced contacts and PCB strength ensure stable current for heavy loads and overclocking.
 Quad-Fan Vapor-Chamber Cooling System
Four Axial-Tech Fans deliver higher airflow and static pressure with minimal noise.
Patented Vapor Chamber & Dense Fin Array efficiently dissipate heat for sustained high performance.
Phase-Change GPU Thermal Pad melts microscopically under heat to improve conductivity and extend lifespan.
3.8-Slot Heatsink Design ensures maximum cooling potential while maintaining structural rigidity.
 Military-Grade Durability
TUF-grade chokes and MOSFETs deliver stable power and long-term reliability.
Protective PCB Coating guards against dust, moisture, and corrosion.
Dual-Ball Fan Bearings last twice as long as conventional sleeve designs.
Auto-Extreme Manufacturing guarantees precision soldering and consistent build quality.
 AI Performance & Next-Gen Graphics
NPU Performance: Up to 3593 TOPs for AI-enhanced workflows and DLSS 4 real-time upscaling.
Ray Tracing & DLSS 4: Experience cinematic-level lighting and ultra-smooth frame rates in 4K and 8K gaming.
NVIDIA G-SYNC & Reflex: Tear-free visuals with ultra-low latency for competitive gaming.
 Specifications
| Category | Specification |
| Brand | ASUS ROG |
| Model Name | ROG Astral GeForce RTXâ„¢ 5090 BTF Gaming OC Edition |
| Part Number | 90YV0NF0-M0NA00 |
| GPU | NVIDIA GeForce RTXâ„¢ 5090 |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 21 760 |
| Boost Clock (OC Mode) | 2610 MHz |
| Boost Clock (Default) | 2580 MHz |
| Memory | 32 GB GDDR7 |
| Memory Bus | 512 bit |
| Memory Speed | 28 Gbps |
| Bus Standard | PCI Express 5.0 |
| Max Resolution | 7680 × 4320 (8K) |
| OpenGL Version | 4.6 |

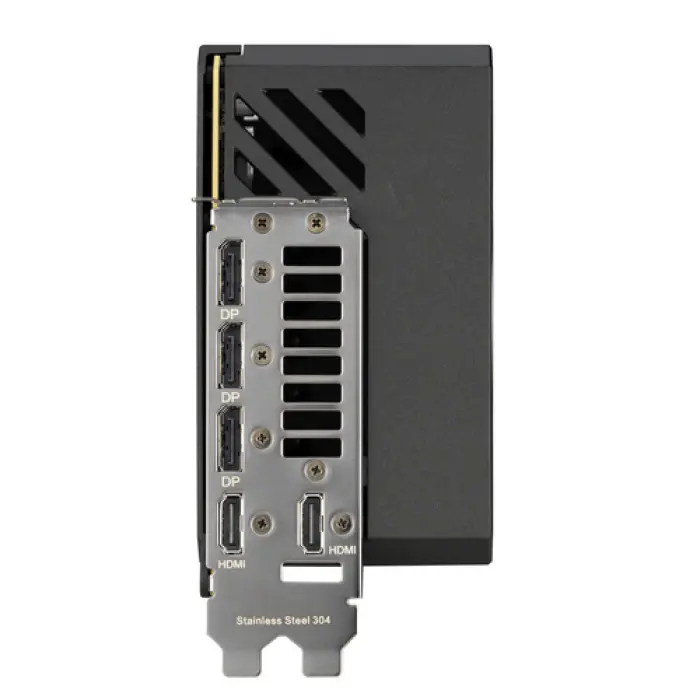

| Ports | 3 × DisplayPort 2.1b • 2 × HDMI 2.1b |
| HDCP Support | Yes (2.3) |
| Max Displays | 4 |
| NPU Performance | Up to 3593 TOPs |
| Cooling | Quad Axial-Tech Fans + Vapor Chamber + Phase-Change Pad |
| Slot Design | 3.8 slots |
| Power Connector | 1 × 16-pin (GC-HPWR 1000 W BTF Adapter) |
| Recommended PSU | 1000 W |
| Illumination | ARGB Multi-Color Lighting |
| Color | Black / Grey |
| Weight | 3.01 kg |
| Dimensions (L × W × H) | 357.6 × 76 × 149.3 mm |
| Package Dimensions | 420 × 226 × 126 mm (4.45 kg total) |
