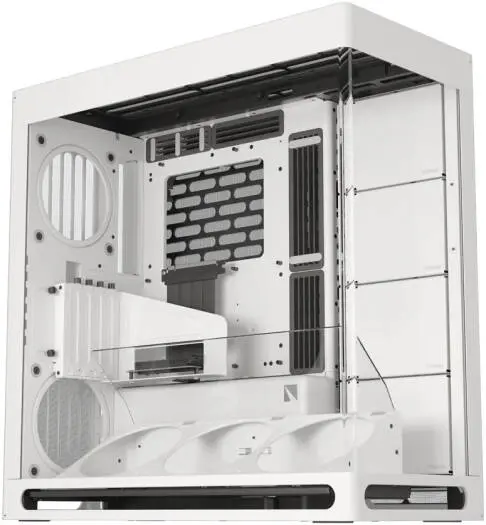

HAVN HS 420 E-ATX Mid Tower VGPU Edition – White

Up to 420mm Radiators | 11-Fan Support | Hybrid Airflow Structure | SGCC Steel + Tempered Glass | Model: HVN-CA-HS420-07

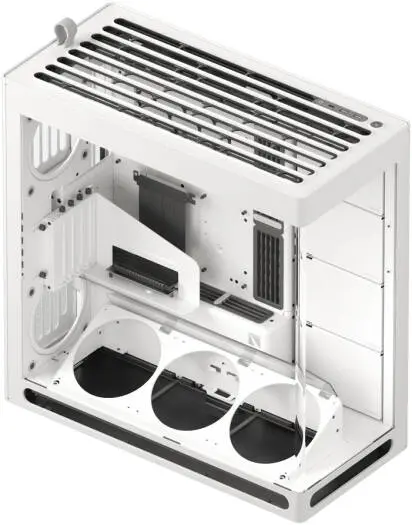

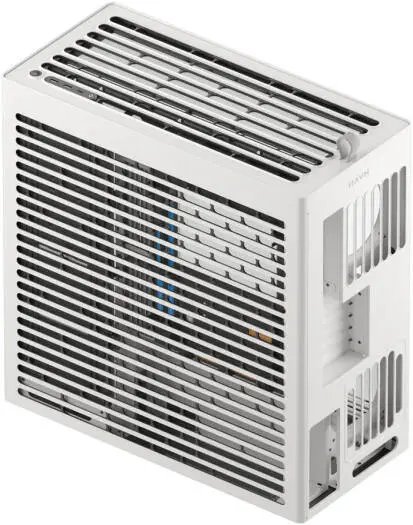

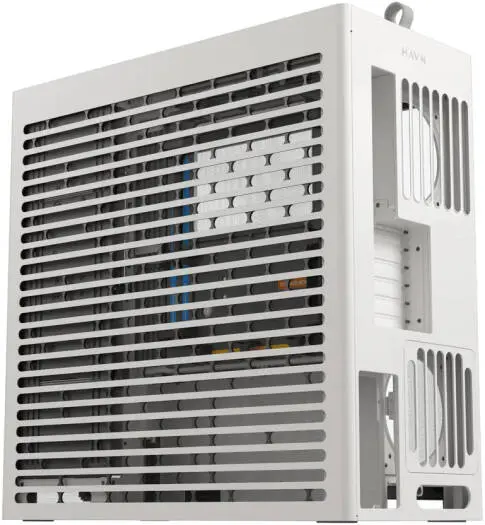

The HAVN HS 420 VGPU Edition in White is engineered as a premium hybrid-structure chassis built for maximum airflow, structural strength, and next-generation component support. After extensive prototyping and thousands of engineering test hours with Pro Gamers Group, this case was developed to deliver exceptional central GPU cooling while maintaining traditional mid-tower dimensions.

Designed for high-performance builds, it supports large radiators, oversized GPUs, and advanced cooling layouts, making it ideal for demanding gaming, rendering, and workstation setups. Its dual-chamber layout ensures superior cable management, improved thermal separation, and a clean, professional appearance.

The White Edition combines premium SGCC steel, reinforced tempered glass, zinc alloy elements, and NdFeB magnetic panels to offer durability with a refined, modern aesthetic.

Key Features

Hybrid Central Airflow Architecture

Purpose-built to maximize GPU cooling efficiency through optimized intake and exhaust pathways.

Supports Extreme Cooling Setups

Accommodates up to eleven fans and triple 420mm radiators for high-end cooling performance.

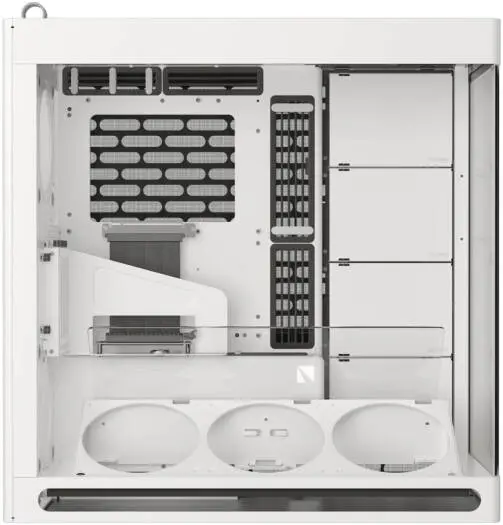

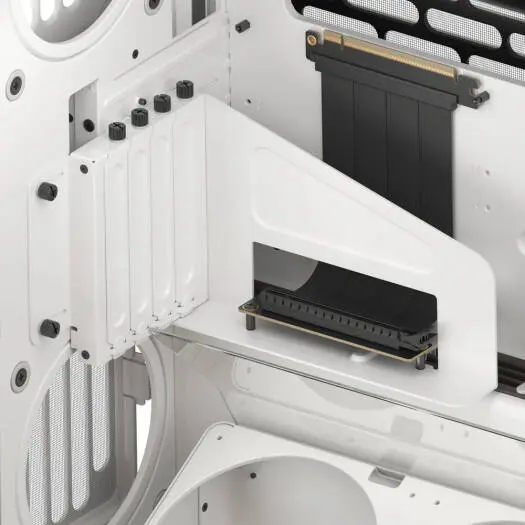

VGPU Edition Enhancements

Optimized space and structure for vertical GPU configurations and high-airflow GPU zones.

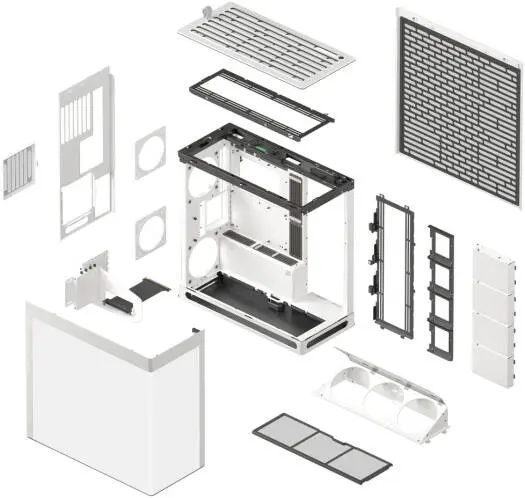

Premium Material Construction

Robust SGCC sheet metal, 3mm tempered glass, ABS, nylon, silicone, and magnetic zinc alloy components.

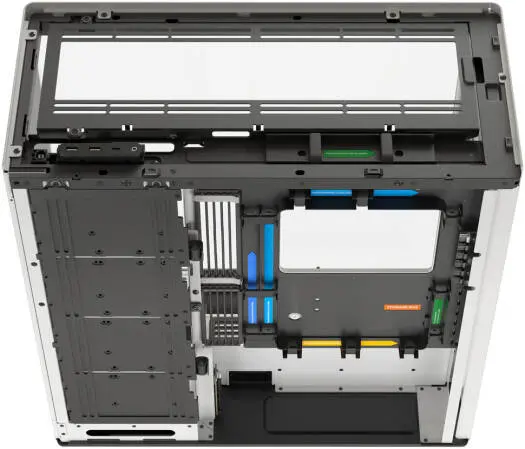

Dual-Chamber Thermal Layout

Separates GPU and CPU cooling zones from PSU and cabling, improving airflow and reducing heat saturation.

Internal Display Support

Includes front pillar mounting for a 14-inch screen with standard VESA compatibility.

Specifications

Form Factor: Mid Tower

Materials: SGCC sheet metal, tempered glass, ABS, nylon, silicone, zinc alloy, NdFeB magnets

Dimensions: 541 × 259.5 × 547 mm

Net Weight: 17.84 kg

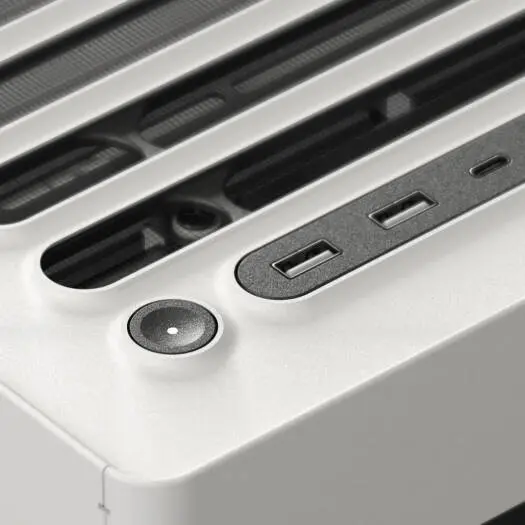

Front I/O Ports

• USB 3.2 Gen 2 Type-C ×1

• USB 3.2 Gen 1 Type-A ×2

• Audio Jack ×1

• Power / Reset Button

Motherboard Compatibility

• E-ATX (max width 277 mm)

• ATX

• Micro-ATX

• Mini-ITX

Fan Support (Up to 11 Fans)

• Top: 3 × 120mm / 3 × 140mm

• Right: 3 × 120mm / 3 × 140mm

• Bottom: 3 × 120mm / 3 × 140mm

• Rear: 2 × 120mm / 2 × 140mm (max thickness 30mm)

PWM Fan Repeater:

• 12 channels (Cable Tray ×1, PSU Shroud ×1)

Liquid Cooling Support

• Top: 280 / 360 / 420 mm (up to 65 mm thick; no RAM overlap)

• Right: 280 / 360 / 420 mm (60 mm with GPU >317 mm; 80 mm with top AIO)

• Bottom: 280 / 360 / 420 mm (up to 120 mm thickness)

Clearance

• GPU Length: Up to 480 mm

• GPU Width: 195 mm

• GPU Slots: 2–5 slots

• CPU Cooler Height: Up to 185 mm

• PSU Length: Up to 220 mm (total internal clearance 290 mm)

RAM Clearance (with thick radiators):

• 420mm rad → RAM up to 32 mm

• 360mm rad → RAM up to 43 mm

Storage Support

Right Fan Mount:

• 4 × 3.5" drives

• 8 × 2.5" drives

Cable Tray:

• 1 × 3.5"

• 2 × 2.5"

Included Storage Bays: 4×

Internal Display Mount

• VESA 75 × 75 mm / 100 × 100 mm

• Maximum Size: 14 inches

• Position: Front Right Pillar
