Product Description

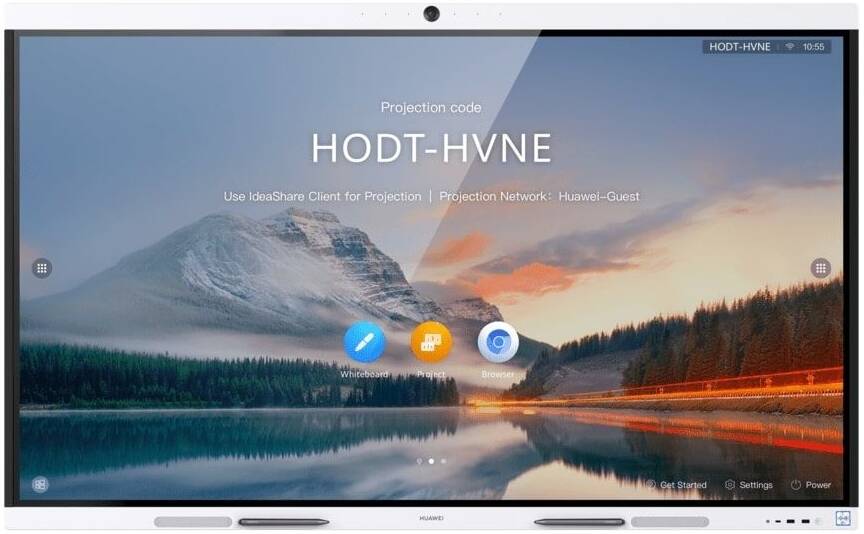

IdeaHub B2Â
Take your meetings to the next level with IdeaHub B2, the all-in-one solution for seamless multi-platform cloud conferencing.
Crystal-Clear 4K Video: Professional 4K camera with a 1.5 ÎĽm industrial-grade image sensor delivers natural, low-noise visuals with less than 2% distortion.
Immersive 3D Audio: Built-in stereo speaker with a 550 cmÂł ultra-large sound cavity ensures powerful, crystal-clear sound that fills the room.
 Smart Voice Pickup: Six-microphone array with advanced beamforming technology captures voices clearly within a 10-meter radius.
 Plug-and-Play Simplicity: High-definition cloud conferencing with no OPS configuration required.
 Reliable Performance: Innovative heat-dissipation design guarantees consistent resolution and stable operation even during long meetings.
 IdeaHub B2 is more than just hardware—it’s a complete collaboration hub designed to deliver smarter meetings, sharper communication, and a smoother conferencing experience from day one.
Â
Specifications
| Category | Specification | Details |
| General | Model | IHB2-65PU |
| Product Dimensions | 1484.5 Ă— 91.6 Ă— 916.1 mm | |
| Package Dimensions | 1650 Ă— 220 Ă— 1050 mm | |
| Components | Device | |
| Stylus Pen | 2 | |
| Cable | Power cable Ă— 1 | |
| Rolling Stand | Optional (65", 75", 86") | |
| Wall-Mounted Bracket | Optional (65", 75", 86") | |
| IdeaShare Key | Optional | |
| OPS | Optional | |
| Screen | Resolution | 4K UHD (3840 Ă— 2160) |
| Backlight Type | D-LED | |
| Lamination | Zero-gap bonding | |
| Viewing Angle | 178° | |
| Color Depth | 10-bit (8-bit + FRC) | |
| Color Gamut | 85% NTSC (typical) | |
| Refresh Rate | 60 Hz | |
| Touch Points | 20 | |
| Camera | Zoom | 2x digital zoom |
| Field of View | H: 80° / V: 50° | |
| Video Output | 4K | |
| TV Distortion | ＜2% | |
| Aperture | F/1.8 | |
| Speaker | Frequency Range | 100 Hz – 20 kHz |
| Speaker Units | 2 Ă— full-frequency + 2 Ă— high-frequency | |
| Stereo | Yes | |
| Max Power | 30 W | |
| Microphone | Pickup Angle | 180° |
| Quantity | 6 | |
| Frequency Range | 100 Hz – 20 kHz | |
| Pickup Distance | 10 m | |
| Wireless | Module | Dual-Wi-Fi |
| Frequency | 2.4 GHz / 5 GHz | |
| System | CPU | Quad-core |
| RAM | 4 GB | |
| Flash | 32 GB | |
| OS | Android 9.0 / Windows 10* *Windows 10 requires OPS plug-in | |
| Interfaces | Front Ports | USB Type-C Ă— 1, USB Type-A 3.0 Ă— 2 |
| Side Ports | USB Type-A 3.0 Ă— 1, USB Type-B Ă— 1, HDMI IN Ă— 2, HDMI OUT Ă— 1, COM Ă— 1, RJ45 Ă— 1, OPS (80-pin) Ă— 1, 3.5mm Line-in Ă— 1, 3.5mm Line-out Ă— 1 | |
| Meeting & Projection | Third-Party Meeting Apps | Yes |
| Projection Modes | IdeaShare code, HDMI, Type-C, IdeaShare Key, NFC, drop-down | |
| Projection Quality | Wireless: up to 4K 30 fps / Wired: up to 4K 60 fps | |
| Supported OS | Android / Windows / iOS / macOS | |
| Annotation | Yes | |
| Reverse Control | Yes | |
| Writing | Latency | ≤25 ms |
| Precision | ±1 mm | |
| Touch Distance | ≤1.5 mm | |
| Whiteboard Saving | QR code, Email, Local storage, USB | |
| Intelligent Writing | Yes |
