Product Description

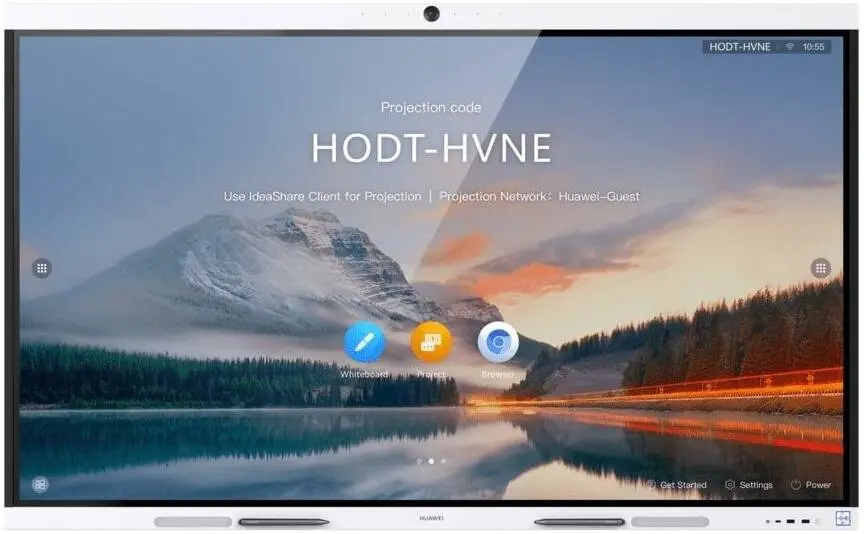

IdeaHub-B2-86PU – Multi-Platform Cloud Conferencing
Transform the way you collaborate with IdeaHub B2, the ultimate solution for effortless, high-quality video conferencing.
 Seamless Setup: Enjoy instant HD cloud conferencing with no OPS configuration required.
 4K Professional Camera: Equipped with a 1.5 μm industrial-grade image sensor, delivering sharp, natural visuals with less than 2% distortion.
 Stable Long-Session Performance: Advanced heat-dissipation design ensures consistent resolution even during extended meetings.
 Clear Voice Pickup: Six-microphone array with beamforming technology captures sound clearly within a 10-meter radius.
 Immersive 3D Audio: A 550 cm³ ultra-large sound cavity with stereo speakers produces powerful, crystal-clear sound.
With IdeaHub B2, every meeting feels smarter, clearer, and more engaging—whether in the boardroom or across continents.
Specifications
| Category | Specification | Details |
| General | Model | IHB2-86PU |
| Product Dimensions | 1953.0 Ă— 91.8 Ă— 1180.6 mm | |
| Package Dimensions | 2090 Ă— 250 Ă— 1300 mm | |
| Components | Device Ă— 1, Stylus Pen Ă— 2, Power Cable Ă— 1 | |
| Rolling Stand | Optional (65", 75", 86") | |
| Wall-Mounted Bracket | Optional (65", 75", 86") | |
| IdeaShare Key | Optional | |
| OPS | Optional | |
| Screen | Resolution | 4K UHD (3840 Ă— 2160) |
| Backlight Type | D-LED | |
| Lamination | Zero-gap bonding | |
| Viewing Angle | 178° | |
| Color Depth | 10-bit (8-bit + FRC) | |
| Color Gamut | 85% NTSC (typical) | |
| Refresh Rate | 60 Hz | |
| Touch Points | 20 | |
| Camera | Zoom | 2x digital zoom |
| Angle of View | H: 80° / V: 50° | |
| Video Output | 4K | |
| TV Distortion | ＜2% | |
| Aperture | F/1.8 | |
| Speaker | Frequency Range | 100 Hz – 20 kHz |
| Units | 2 Ă— full-frequency + 2 Ă— high-frequency | |
| Stereo | Yes | |
| Max Power | 30 W | |
| Microphone | Pickup Angle | 180° |
| Quantity | 6 | |
| Frequency Range | 100 Hz – 20 kHz | |
| Pickup Distance | 10 m | |
| Wireless | Module | Dual-Wi-Fi |
| Frequency | 2.4 GHz / 5 GHz | |
| System | CPU | Quad-core |
| RAM | 4 GB | |
| Flash | 32 GB | |
| OS | Android 9.0 / Windows 10* *Windows 10 requires OPS plug-in | |
| Interfaces | USB Type-C | 1 |
| USB Type-A 3.0 | 3 (2 front + 1 side) | |
| USB Type-B | 1 | |
| HDMI IN | 2 | |
| HDMI OUT | 1 | |
| COM Port | 1 | |
| RJ45 Network Port | 1 | |
| OPS Port | 80-pin Ă— 1 | |
| 3.5mm Line-in | 1 | |
| 3.5mm Line-out | 1 | |
| Meeting | Third-Party Meeting Apps | Yes |
| Projection | Modes | IdeaShare code, HDMI, Type-C wired, IdeaShare Key, NFC, drop-down |
| Quality | Wireless: up to 4K @30fps Wired: up to 4K @60fps | |
| Supported OS | Android / Windows / iOS / macOS | |
| Annotation | Yes | |
| Reverse Control | Yes | |
| Writing | Latency | ≤25 ms |
| Precision | ±1 mm | |
| Touch Distance | ≤1.5 mm | |
| Whiteboard Saving | QR code, Email, Local storage, USB | |
| Intelligent Recognition | Yes |
