Product Description

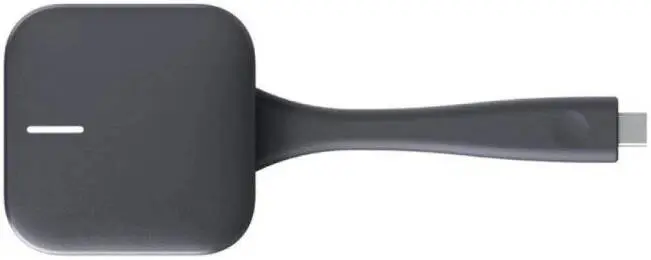

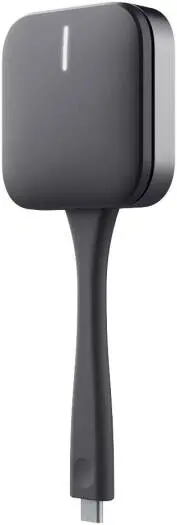

Huawei IdeaShare Key – HWA-01-R
The Huawei IdeaShare Key is a powerful wireless projection tool designed for seamless collaboration. With a simple Type-C connection, it enables instant screen sharing and smooth audio-visual transmission, making meetings more efficient and engaging.
One-Click Projection: Plug in and project instantly—no complex setup required.
 Secure & Reliable: Built-in AES encryption ensures safe data transmission during wireless sharing.
 High-Fidelity Audio: Supports 48K dual-channel lossless audio projection for crystal-clear sound.
 Dual-Band Connectivity: Works on 2.4 GHz & 5 GHz Wi-Fi frequencies for stable, lag-free performance.
 Convenient Interface: Compact design with a Type-C port for easy plug-and-play use.
 Modern Look: Sleek black finish complements any meeting room setup.
 With Huawei IdeaShare Key, you can transform any meeting into a smooth, interactive, and secure collaboration experience.
Specifications
| Specification | Details |
| Data Security | AES encryption |
| Projection Receiving End | Huawei IdeaHub Enterprise, IdeaHub Pro, IdeaHub S, IdeaHub Board Pro, IdeaHub B2, IdeaHub Board 2, IdeaHub S2, Collaboration Device Pro, Collaboration Device, Collaboration Device Lite, Box 310, Box 610 |
| Audio Projection | 48K dual-channel lossless audio |
| Connection Distance | ≤ 20 m |
| Mode | Client mode |
| Wi-Fi Frequency | 2.4 GHz / 5 GHz |
| Authentication Mode | WPA2-PSK |
| Max Power Consumption | ≤ 2.5 W |
| Operating Voltage | 5V DC |
| Certification & Standards | EU CE certification, SRRC Radio Type Approval |
| System Compatibility | Windows, macOS, Android, HarmonyOS, iOS |
| Type | USB Type-C (supports conversion to USB Type-A) |
| Interface | IEEE 802.11 a/b/g/n |
| Video Features | Up to 1080p @60 FPS (no app) Up to 4K @30 FPS (with app) |
| Audio Features | 48K dual-channel lossless audio |
| Wireless Specifications | IEEE 802.11 a/b/g/n |
| Security & Stability | AES encryption, WPA2-PSK authentication |
| Dimensions (H Ă— W Ă— D) | Product: 18 Ă— 154 Ă— 60 mm Package: 32 Ă— 175 Ă— 115 mm |
| Ambient Temperature | 0°C to 40°C (working) –40°C to +70°C (non-working) |
| Ambient Humidity | 5%–95% (working) 0%–95% non-condensing (non-working) |
| Net Weight | 58.59 g |
| Gross Weight | 162.5 g |
