Product Description

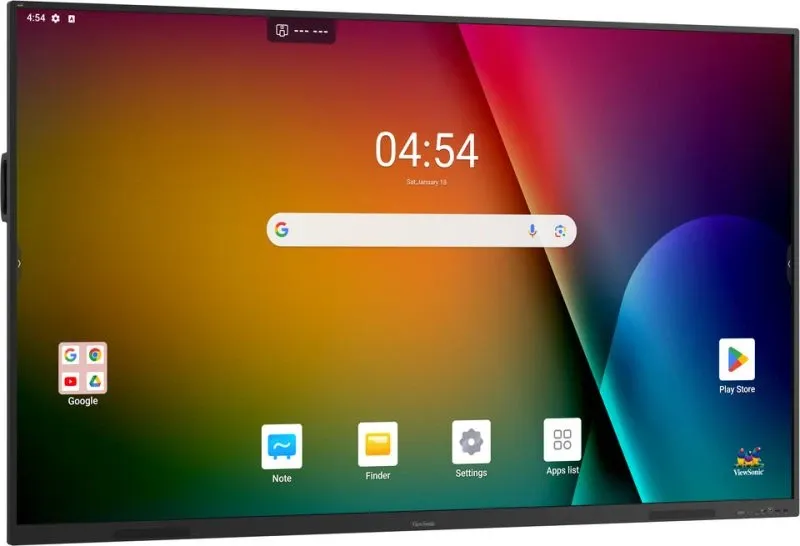

ViewSonic ViewBoard IN8603-1C – 86” 4K EDLA Interactive Display
ViewSonic ViewBoard® IN8603-1C is an 86-inch 4K UHD Google EDLA-certified interactive display built for immersive classrooms and collaborative professional environments. Powered by Android 14, it delivers secure access to Google Play applications, ensuring a protected and scalable ecosystem for education and enterprise deployment.
Designed for smooth and responsive interactivity, the IN8603-1C features Ultra Fine Touch Technology with up to 40-point multi-touch support on both Windows and Android. This enables natural handwriting, multi-user annotation, and dynamic collaboration across lessons and meetings.
The 4K UHD resolution (3840 × 2160), 1.07 billion colors, and 450 nits brightness provide sharp, vibrant visuals with wide 178° viewing angles. A durable 9H anti-glare surface enhances readability while protecting the display from scratches and daily wear in high-usage environments.
Equipped with a quad-core processor, 8GB DDR4 RAM, and 128GB storage, the display ensures stable performance for educational apps and presentation tools. Dual 20W speakers deliver clear audio output, supporting both in-room teaching and hybrid communication scenarios.
Connectivity is streamlined with HDMI (CEC/ARC support), USB-C with Power Delivery, OPS slot expansion, SmartPort-enabled USB 3.2 ports, LAN, and RS232 control. Energy Star certification and low standby consumption contribute to operational efficiency.
The IN8603-1C provides a secure, powerful, and practical solution for large-format interactive learning and professional collaboration.
Specifications
| Category | Specification |
|---|---|
| Display Size | 86" |
| Panel Type | TFT LCD with DLED Backlight |
| Resolution | UHD 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Colors | 1.07 Billion (8-bit + FRC) |
| Brightness | 450 nits |
| Contrast Ratio | 5000:1 (DCR enabled) |
| Response Time | 8 ms |
| Viewing Angles | 178° H / 178° V |
| Backlight Life | 50,000 Hours |
| Surface Treatment | 9H Hardness, Anti-Glare |
| Processor | Quad-Core |
| RAM | 8GB DDR4 |
| Storage | 128GB |
| Operating System | Android 14 (EDLA Certified) |
| Touch Technology | Ultra Fine Touch |
| Touch Points | 40 (Windows / Android) |
| HDMI Inputs | 2 × HDMI 2.0 (CEC / ARC support) |
| HDMI Output | 1 |
| VGA | 1 |
| USB Type-A | USB 3.2 Gen1 ×4, USB 2.0 ×1 |
| USB Type-B | 2 × |
| USB Type-C | 1 × (PD 15W) |
| LAN | RJ45 ×1 |
| RS232 | 1 |
| OPS Slot | 1 (Optional Intel Standard OPS) |
| Speakers | 20W ×2 |
| VESA Mount | 800 × 600 |
| Power Consumption | 240W (Normal) / <0.5W (Standby) |
| Dimensions (W×H×D) | 1957 × 1159 × 98.8 mm |
| Net Weight | 53.6 kg |
| Certifications | BIS, Energy Star |
