Product Description

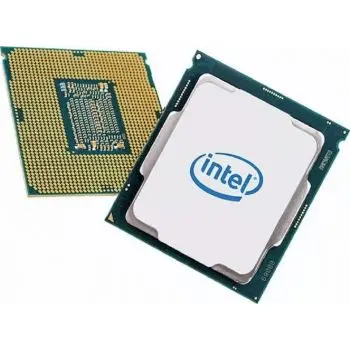

Intel Core i5-12600KF Alder Lake-S 12th Gen Desktop Processor, 3.70 GHz, 10 Cores & 16 Threads | i5-12600KF-Tray
The Intel Core i5-12600KF is a 12th-generation Alder Lake-S processor designed to deliver outstanding gaming and multitasking performance. Combining 6 high-performance (P) cores and 4 energy-efficient (E) cores, it achieves an excellent balance of speed and efficiency. With a boost frequency of up to 4.9 GHz and Intel Turbo Boost Max Technology 3.0, it ensures top-tier frame rates and fast responsiveness across applications.
As part of Intel’s hybrid architecture, the i5-12600KF supports DDR5 memory, PCIe 5.0, and Thunderbolt 4, making it ideal for modern gaming setups and advanced desktop builds. Note that this version is the “KF” variant, meaning it does not include integrated graphics, and a CPU cooler is not included—allowing users to choose custom cooling solutions for optimal overclocking.
Key Features
10 Cores (6 Performance + 4 Efficient)
16 Threads for powerful multitasking
Base Clock Speed: 3.70 GHz
Max Turbo Frequency: 4.9 GHz
20MB Intel® Smart Cache
Unlocked multiplier for overclocking
Supports DDR5 RAM (Dual Channel)
20 PCIe lanes (16 PCIe 5.0 + 4 PCIe 4.0)
Socket Type: LGA 1700
Compatible with Intel 600 Series Motherboards
No integrated GPU (requires discrete graphics card)
No cooler included
Specifications
| Category | Details |
| Processor Model | Intel Core i5-12600KF (Alder Lake-S, 12th Gen) |
| Socket Type | LGA 1700 |
| Architecture | Hybrid: 6 P-Cores + 4 E-Cores |
| Cores / Threads | 10 Cores / 16 Threads |
| Base Clock Speed | 3.7 GHz |
| Max Turbo Frequency | Up to 4.9 GHz |
| Intel Turbo Boost Max 3.0 | Yes |
| Unlocked Multiplier | Yes |
| Cache | 20 MB Intel® Smart Cache |
| L2 Cache | 9.5 MB |
| Processor Base Power (TDP) | 125 W |
| Maximum Turbo Power | 150 W |
| Integrated Graphics | None (KF Variant) |
| Memory Support | DDR5 up to 4800 MT/s / DDR4 up to 3200 MT/s |
| Max Memory Capacity | 128 GB |
| Memory Channels | 2 (Dual Channel) |
| ECC Memory Support | Yes |
| PCI Express Revision | PCIe 5.0 (16 lanes) + PCIe 4.0 (4 lanes) |
| Max PCIe Lanes | 20 |
| Optane Memory Support | Yes |
| Thermal Solution | Not Included |
| Max Operating Temperature (Tjmax) | 100°C |
| Overclocking Support | Yes (CPU and Memory) |
